Pilot scale batch mixer for small scale production
Achieve precise control and consistency in small-scale production with this advanced batch mixer, designed to handle complex formulations like emulsions and gel solutions with high shear efficiency.
Mixes, Emulsifies, Homogenizes, and Disintegrates

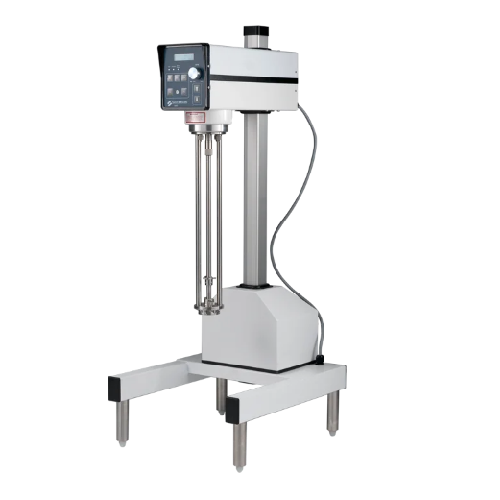

The Silverson AX Series Pilot Scale Batch Mixer is engineered for small-scale production, particularly in research and development settings across industries such as pharmaceuticals, cosmetics, and food processing. This mixer stands out for its efficient high shear rotor/stator design, enabling uniform mixing, emulsifying, and homogenizing. It operates with a powerful 1HP motor, offering variable speeds up to 6000 rpm, ensuring optimal processing across a range of liquids, powders, and high-viscosity materials. Capable of handling volumes up to 50 liters, it integrates seamlessly into your existing setup with options for electric or air-powered motors, making it suitable for controlled environments including explosion-hazard areas. Constructed from 316L stainless steel, it is both corrosion-resistant and easy to clean, meeting stringent sanitary standards. With its touch pad controls and compatibility with data-logging systems, it supports process validation and repeatability, ensuring reliable outcomes for products such as syrups, gels, lotions, and emulsified dairy products.
Benefits
- Enhances precision and repeatability in mixing, ensuring consistent product quality across batches.
- Reduces processing time by up to 90% with high shear rotor/stator efficiency.
- Facilitates scale-up from pilot to full production, minimizing risk during development phases.
- Adapts to diverse applications with interchangeable workheads, offering flexibility across products.
- Supports stringent hygiene requirements with easy-to-clean design and stainless steel construction.
- Applications
- Chemicals,Solutions,Research and development,Liquid formulations,Gels,Hospital pharmacies,Nutraceuticals,Slurries,Small scale production,Suspensions,Cosmetics,Food and beverage,Emulsions,Powders,Pharmaceuticals
- End products
- Serums,Protein shakes,Ointments,Chemical solutions,Gel formulations,Smoothies,Dissolved active pharmaceutical ingredients (apis),Medicinal syrups,Detergents,Cough mixtures,Hair gels,Homogenized dairy products,Lotions,Syrups,Stabilized suspensions,Creams and sauces,Liquid vitamins,Emulsified oils,Hand creams,Slurry-based fertilizers,Mayonnaise
- Steps before
- Purification,Drying,Mixing,Grinding,Powder Incorporation,Disintegration of Solids
- Steps after
- Emulsification,Homogenization,Dissolving,Blending,Hydration,Particle Size Reduction
- Input ingredients
- liquid materials,solid materials,powders,high viscosity materials,fibrous materials,elastic materials,gels,thickeners
- Output ingredients
- emulsions,homogenized mixtures,dispersed powders,dissolved solids,disintegrated solids,fine suspensions,solubilized materials,blended mixtures,reduced particle size,de-agglomerated mixtures
- Market info
- Silverson is renowned for manufacturing high-quality industrial mixers, specializing in high-shear mixers for industries such as food, pharmaceuticals, and cosmetics, offering customized solutions and exceptional engineering expertise.
- Motor Power
- 1HP (0.75 kW)
- Speed Control
- Variable,up to 6000 rpm
- Capacity
- Up to 50 liters
- Construction Materials
- 316L stainless steel
- Stand Type
- Electric rise,fall bench stand
- Operating Voltage
- 110 volt,single phase (220 volt optional)
- Speed Lock Function
- Yes
- Working Mechanism
- High shear rotor/stator
- Mixing Stages
- 4 stages
- Batch Capacity
- Up to 50 liters
- Variable Speed Control
- 6000 rpm maximum
- Automation Level
- Touch pad controls
- Suction and Discharge
- Powerful suction and radial discharge
- Mixing Cycle
- Continuous circulation
- Air Incorporation Control
- Minimized aeration
- Corrosive resistance (e.g. acids)
- Stainless Steel 316L
- Cleanability
- Easy to clean,non-chip coating
- Biological compatibility
- Suitable for pharmaceutical use
- Abrasion resistance
- High abrasion resistance
- Density/particle size compatibility
- Wide range from 0.5 to 2.5 g/cm³
- Machine footprint
- Compact
- Control panel type
- Touch pad
- Discharge method
- Variable speed
- Tank shape and size
- 50 liters,cylindrical
- Stand type
- Electric rise,fall bench stand
- Control panel type
- Touch pad controls
- Motor type
- Electric / Compressed air
- Motor power
- 1 HP (0.75 kW)
- Stand type
- Electric rise,fall bench stand
- Speed control
- Variable speed,Nominal maximum speed 6000 rpm
- Data logging compatibility
- Compatible with DataLogger system
- Workhead options
- Interchangeable workheads
- Mixing assemblies
- Duplex / Ultramix
- Stand mobility
- Mobile floor stand with hydraulic lift available for AX60
