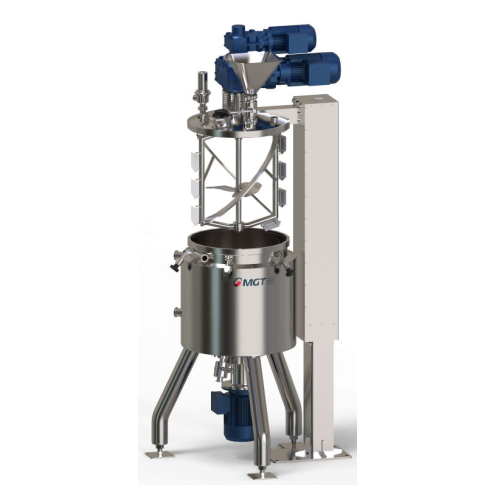

Vacuum mixing system for emulsion and homogenization
Achieve seamless emulsion and homogenization with precision: this system handles complex mixing tasks with adaptable speed control, superb heat transfer, and versatile configurations, catering to diverse viscosities and ensuring consistent product quality.

Blends, Homogenizes, and Mixes High-Viscosity Products
This Coaxial Vacuum Mixing System from MGT Liquid & Process Systems is engineered for efficient blending of high-viscosity liquids and semi-solids. Featuring a double motion coaxial agitator paired with a high shear rotor-stator homogenizer, it excels in creating stable emulsions and mixes within the cosmetics, pharmaceutical, chemical, and food industries. With independent speed control for each drive and robust construction, the system ensures precise operation for a wide range of applications, such as manufacturing face creams, lotions, ointments, and food emulsions. The unit’s vacuum and pressure capabilities facilitate sterilization and enhance product consistency. Integration is seamless in processing lines, as the system automates mixing, agitation, emulsification, blending, and heat transfer tasks. The stainless steel construction ensures durability and corrosion resistance, while customization options allow tailoring to specific viscosity and throughput requirements.
Benefits
- Enhances product uniformity with precise, multi-directional mixing.
- Increases operational efficiency by handling a wide viscosity range.
- Minimizes contamination risk with vacuum and pressure capabilities.
- Reduces energy costs through independent, optimized drive controls.
- Ensures longevity with corrosion-resistant stainless steel construction.
- Applications
- Chemicals,Food,Cosmetics,Emulsions,Pharmaceuticals
- End products
- Sauces,Cream soups,Face creams,Liquid emulsions,Inks,Detergents,Salad dressings,Conditioner,Ointments,Dressings,Mayonnaise,Shampoo,Tablets,Lotions,Paints,Capsules
- Steps before
- Purification,Grinding
- Steps after
- Sterilization,Packing,Coating
- Input ingredients
- viscous products,liquid applications,high viscosity materials,semi-solids,powders,solids,emulsions
- Output ingredients
- homogeneous products,emulsions,blended products,homogenized products
- Market info
- Viscosity Range
- Up to 250,000 cP
- Homogenizer Type
- Rotor-Stator
- Drive Speed Control
- Independent Speed Control
- Agitator Type
- Double Motion Coaxial
- Agitator Motion
- Counter-rotating
- Vacuum Capability
- Yes
- Pressure Capability
- Positive Pressure
- Temperature Control
- Adjustable
- PH Measurement
- Adjustable
- Flow Control
- Adjustable
- Weight Control
- Adjustable
- Material Handling Capability
- Liquid and Semi-Solid
- Jacket Type
- Double Jacket
- Operation Type
- Batch / Continuous
- Mixing Mechanism
- Helical / Paddle / Anchor / Rotor-Stator
- Agitator Speed Control
- Independent Speed Control
- Pressure Conditions
- Vacuum / Positive Pressure
- Integrated Process Steps
- Emulsion / Homogenization / Sterilization
- Lift Type
- Pneumatic / Electric
- Side Wall Scraping
- Yes
- Heat Transfer Enhancement
- Jacketed Vessel / Scraping Action
- Shear Capability
- High Shear (Rotor-Stator)
- Flow Type
- Axial Circulation
- Corrosion resistance
- Suitable for chemicals and pharmaceutics
- Cleanability
- Designed for easy cleaning (CIP/SIP)
- Biological compatibility
- FDA compliance for cosmetic and pharmaceutical use
- Temperature tolerance
- -20°C to 150°C
- Abrasion resistance
- High durability coatings available
- Pressure resistance
- Handles vacuum and positive pressure conditions
- Viscosity handling
- Up to 250,000 cP
- Emulsion creation
- Yes
- Powder impregnation
- Yes
- Machine footprint
- Compact
- Tank shape
- Cylindrical with double jacket
- Agitator type
- Double motion coaxial agitator
- Feed/discharge method
- Bottom discharge
- Vessel type
- Vacuum mixer vessel
- Control panel type
- Independent speed control
- Agitator Motion Type
- Double or triple motion
- Agitator Speed Control
- Independent speed control for each drive
- Drive Motor
- Electric drive-motors
- Flow Regime Adaptability
- Laminar or turbulent
- Homogenizer Configuration
- Various configurations for different viscosities
- Mixing System Type
- Customized mixing solutions
- Mounting Options
- Pneumatic and Electric Lift
