Multifunctional mixer for high volume batches

Efficiently handle complex mixing, emulsifying, and homogenizing tasks with a single system designed to streamline high-volume production lines, ensuring consistent quality across diverse and demanding product formulations.

Mixes, Emulsifies, and Cooks for Diverse Industries

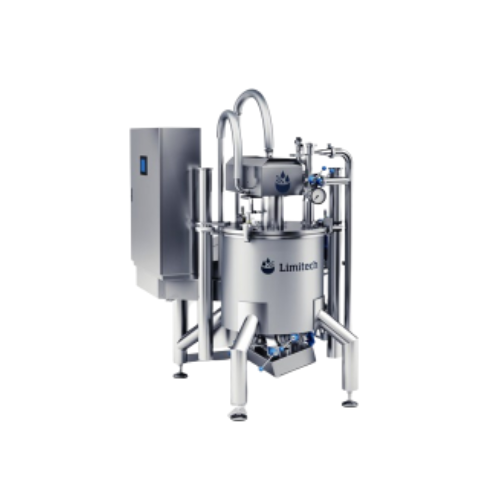

The LiMiX 2 from Limitech is a multifunctional mixer specially crafted for high volume batch processing, perfect for industries ranging from food and dairy to personal care and pharmaceuticals. This system stands out with its high-shear mixing capabilities and interchangeable mixing tools, providing versatility in handling various products like ketchup, mayonnaise, and emulsified dressings. It offers precise control over processing conditions with features like a frequency inverter on the agitator and optional vacuum integration. With a capacity ranging from 10 to 300 liters, the LiMiX 2 can integrate seamlessly into production lines, supporting processes such as mixing, emulsifying, and pressure cooking. Designed for efficiency, it includes CIP readiness for easy cleaning, ensuring minimal downtime and maintenance. Enhance your production line with customizable options, including direct or indirect steam heating and PLC-controlled automation, fully certified for safe operation under overpressure conditions.

Benefits

  • Enhances product consistency through high-shear mixing and emulsifying.
  • Increases processing flexibility with interchangeable tools and adjustable parameters.
  • Reduces operational downtime with quick, reliable CIP cleaning.
  • Promotes energy savings and precise control via frequency inverters.
  • Ensures safety and high-temperature operations with certified overpressure protection.

General


Applications
Personal care,Beverages,Convenience foods,Technical products,Other foods,Sauces,Soups,Confectionary,Condiments,Powder dissolving,Pharma,Dressings,Emulsions,Dairy products
End products
Fruit mousse,Jam,Vinaigrette,Milk powder solution,Chocolate cream filling,Ice cream base,Processed cheese,English mustard,Aspartame solution,Paint primer,Mustard emulsions,Soft drink concentrate,Industrial glue,Mascara,Lotion,Tartar sauce,Toothpaste,Chilli sauce,Yogurt,Chutney,Mozzarella,Bio-suspensions,Cheese sauce,Bolognese sauce,Hydrocolloid mixtures,Ketchup,Vegetable soup,Iced tea,Emulsified salad dressings,Mayonnaise,Baby food puree,Lipstick
Steps before
Preparation,Ingredient Weighing,Pre-mixing,Raw Material Feeding
Steps after
Cooling,Homogenization,CIP Cleaning,Packaging
Input ingredients
Fish Soup ingredients,Flavoured Milk components,Fruit Sauce base materials,Ketchup ingredients,Mayo Based Salads ingredients,Mayonnaise ingredients,Recombined Milk base,Soup base ingredients,Vegetable Soup components,Vinaigrette ingredients
Output ingredients
Fish Soup,Flavoured Milk,Fruit Sauce,Ketchup,Mayo Based Salads,Mayonnaise,Recombined Milk,Soup,Vegetable Soup,Vinaigrette
Market info
Limitech is known for manufacturing customized food processing equipment, specializing in jacketed kettles and mixers for the food industry, focusing on flexibility and quality to meet client-specific requirements.

Technical Specifications


Volume Range
10–300 L
Mixing Tools
Mixing Wheel / Stator / Knife
Agitation
Effective Agitation
Insulation
50 mm
Overpressure Protection
OPPSD Certified
Mixing Type
High-shear Mixing
Control
PLC Control
Heating
Direct / Indirect Steam Heating
Cooling
Jacket Cooling
Lid Type
Liftable Lid
Frequency Inverter
Agitator / Mixer

Operating Characteristics


Working mechanism
High shear mixer
Integrated steps
Mixing,emulsifying,homogenizing
CIP/SIP
CIP ready
Batch vs. continuous operation
Batch
Changeable mixing tools
Mixing wheel,stator,knife
Liftable lid
Yes
Overpressure protection
OPPSD certified
Volume range
10–300 liters
Automation level
PLC control

Material Compatibility


Cleanability
CIP ready,liftable lid

Physical Characteristics


Volume
10–300 L
Shape
Cylindrical with welded lid
Discharge method
Lifting upper tank
Footprint
Compact
Insulation
50 mm insulation
Lid Type
Liftable lid
Agitation
Effective with frequency inverter
Mixing Tools
Changeable

Custom Options


Control panel type
PLC control
Integration possibilities
CIP ready
Mixing tools
Changeable
Optional features
Vacuum,Cooling in jacket,50 mm insulation,Baffle plate,Direct and Indirect steam heating,Mounted funnels
Lid design
Liftable lid
Overpressure protection
OPPSD certified
