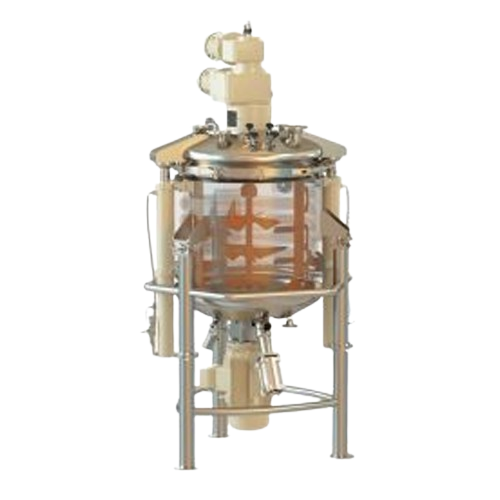

Industrial vacuum mixer and reactor for liquids

For manufacturers needing precise blending and stability, this advanced vacuum mixer and reactor optimizes processes for high-viscosity and complex rheology products, enhancing efficiency in mixing, emulsification, and homogenization.

Mixes, Emulsifies, and Homogenizes Liquids and Semi-Solids

The Bachmix Compact from Bachiller is an industrial vacuum mixer and reactor engineered for precision in processing liquids and semi-solids. It stands out for its ability to handle complex mixing tasks using a slow anchor stirrer paired with a rotor-stator emulsifier, ensuring exceptionally fine and stable emulsions even with high-viscosity products. Ideal for applications in cosmetics, pharmaceuticals, and food production, it supports the manufacture of end-products like bio cosmetic creams, vitamin-enriched syrups, and adhesive pastes.

Capacities range from 150L to 10,000L, with optional configurations accommodating atmospheric to 3 bar(g) operating pressure and temperatures up to 200°C. Automation is seamlessly integrated with PLC control and a color touch screen interface, enabling precise traceability and process control.

The unit features a liftable lid with an automatic SUPERCLAMP system and independently controlled coaxial mixing tools, reducing the need for post-process de-aeration. Its construction meets stringent sanitary design standards like cGMP and FDA, with options for ATEX compliance and CIP/SIP systems validated by Riboflavin test, ensuring both safety and ease of maintenance. Customizable elements and engineering support further enhance this highly-versatile equipment’s adaptability to specific industrial production needs.

Benefits

  • Enhances product quality with fine and stable emulsions, crucial for high-viscosity formulations.
  • Streamlines operations by reducing cleaning downtime with integrated CIP/SIP systems.
  • Optimizes energy use with efficient heating/cooling jacket, cutting operational costs.
  • Ensures regulatory compliance with cGMP and FDA standards, supporting quality assurance.
  • Facilitates easy process control and monitoring, minimizing operator intervention with PLC automation.

General


Applications
Polymers,Fine chemicals,Alkaline batteries,Cosmetics,Food and beverages,Adhesives,Resins,Pharmaceuticals
End products
After sun lotion,Gelatin solutions,Body milk lotions,Sunscreen creams,Bio cosmetic creams,Toothpaste,Adhesive pastes,Alkaline battery slurry,Colorant additives,Shaving foam,Resin mixes,Flavoring essences,Vitamin-enriched syrups,Silicone gels,Diet meal replacements,Active pharmaceutical ingredients (apis),Marmalades,Antibiotic ointments,Ketchup,Industrial pigments,Skin creams,Polymer emulsions,Mayonnaise,Baby food puree
Steps before
Purification,Drying,Homogenisation,Emulsification
Steps after
Sterilization,Packing,De-aeration
Input ingredients
liquids,semi-solids,high viscosity products,complex rheology materials,solids,adhesives,alkaline substances,colorants,pigments,polymers,resins,baby food ingredients,ketchup ingredients,marmalade ingredients,mayonnaise ingredients,sauce ingredients,vitamin complements
Output ingredients
homogenized products,emulsions,after sun products,antibiotics,active pharmaceutical ingredients (APIs),bio cosmetics,body milk,coats,colorants,creams,diet food,dispersions,emulsions,essences,flavors,food additives,gels,hair gels,lipsticks,masks,pomades,shaving products,silicone products,sun protection,suppositories,sweeteners,syrups,toothpastes,unguents
Market info
Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.

Technical Specifications


Capacity
150–10,000 L
Pressure
Atmospheric,optionally up to 3 bar(g)
Temperature
Up to 200°C
Volume Utilization
20% to 100% of its capacity
Stirring Speeds
Coaxial mixing tools independently controlled
Operation Type
Standard and Recirculation Versions
Lid Type
Liftable or Fixed
Heating/Cooling Jacket
Independent Unit
Surface Finish
Internally mirror polished Ra ≤ 0.6 µm
Automation
PLC control system with color touch screen interface
Heating/Cooling Options
Integrated heating/cooling unit
Mixing Tools
Anchor with rotation and Central Uniflux blade mixer
Traceability
Perfect traceability of the fabrication parameters
Cleaning Method
CIP/SIP systems
Control System
PLC with color touch screen
Valve System
Automatic SUPERCLAMP closing system
Design Standard
ASME VIII div.1 – AD-2000 – EN-13445

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
PLC Controlled
CIP/SIP
CIP system available
Cleaning method
CIP / SIP
Integrated steps
Homogenisation,Emulsion

Product type Characteristics


Pressure Capability
Up to 3 bar(g)
Semi-solids Capability
Yes

Physical Characteristics


Capacity
150L–10,000L
Footprint
Compact design
Lid Type
Liftable or Fixed
Surface Finish
Internally mirror polished Ra ≤ 0.6 µm
Pressure rating
Atmospheric up to 3 bar(g)
Temperature range
Up to 200ºC
Mixing Tools
Coaxial independently controlled
Material
Stainless steel with thermal insulation

Custom Options


Control panel type
PLC control system,color touch screen interface
Mixing tools
Coaxial mixing tools independently controlled
