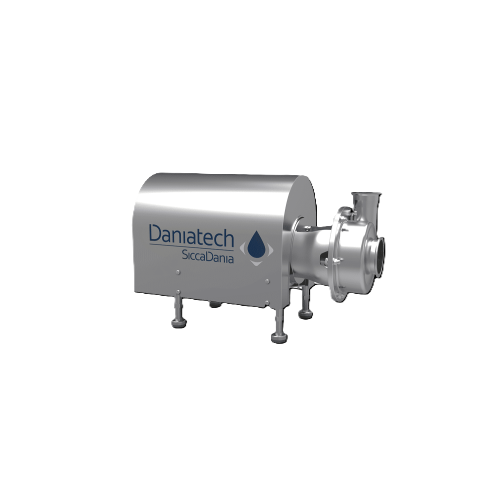

Ultra-high shear mixer for emulsification and homogenization

Optimize your production with ultra-high shear mixing, accelerating emulsification and achieving homogenous blends while reducing particle size for complex formulations.

Processes and Emulsifies Liquids and Slurries

The Ultra MixMaster 32 – 250 from Daniatech is an ultra-high shear mixer engineered to enhance emulsification, homogenisation, and shearing processes within industries such as dairy, food, beverages, and personal care. Operating on the rotor-stator principle, it achieves shear rates up to 120,000 s-1, suitable for both batch and continuous operations. This versatile mixer is ideal for applications ranging from chocolate milk and hummus to shampoo and insulin, facilitating droplet size reduction and slurry shearing. With a flow range of 10-50 m3/h and an outlet pressure of 2.5-7 Bar, it integrates seamlessly into production lines, whether in batch circulation loops or inline setups. The unit includes options for enhanced automation, such as frequency-controlled motors, and offers customization to meet specific process requirements. Constructed to meet rigorous industry standards, it ensures efficient energy consumption and reliable performance over varied operational conditions.

Benefits

  • Enhances product consistency with effective droplet size reduction and homogenisation.
  • Ensures versatile application across various viscosities, from beverages to creams.
  • Increases operational efficiency with high-speed processing in batch or continuous modes.
  • Reduces energy consumption through optimized rotor-stator design.
  • Offers flexibility with customizable configurations and integration options.

General


Applications
Sauces,Sweetened condensed milk,Infant formula,Processed cheese,Starches,Soft drinks,Ice cream mix,Dairy,Soups,Hummus,Condiments,Cream cheese,Analogue cheese,Syrups,Personal care,Pet food,Juices and concentrates,Flavoured milk,Biotech,Plant-based beverages,Hydrocolloids,Confectionary,Liquid batters,Mayonnaise,Spreadable cheese
End products
Pancake batter,Vegan cheese,Barbecue sauce,Ice cream base,Maple syrup,Xanthan gum,Infant cereal,Insulin,Chicken broth,Hummus dip,Olive oil mayonnaise,Almond milk,Orange juice,Cheddar cheese,Yogurt,Cream cheese spread,Chocolate milk,Caramel candy,Cat food,Cornstarch,Shampoo,Cola drink,Tomato ketchup
Steps before
Grinding,Mixing,Homogenisation preparation,Ingredient addition
Steps after
Sterilization,Packing,Filling,Bottling
Input ingredients
slurries,concentrates,pigments,low to medium viscosity materials,high-viscosity materials,ingredients for emulsification,droplets for reduction,homogenisation materials
Output ingredients
emulsified products,reduced droplet size,sheared slurries,processed concentrates,homogenised pigments,homogenised products,1µ lump-free materials
Market info
Daniatech specializes in manufacturing industrial mixers and processing equipment, known for innovation and high-quality engineering, specifically within the food, beverage, and pharmaceutical industries. Their solutions are tailored to improve efficiency and performance in production processes.

Technical Specifications


Shear Rate
Up to 120,000 s-1
Homogenisation Pressure Equivalent
50-80 Bar
Homogenisation Lumps
Down to 1µ lump-free
Inlet Pressure
0.5 – 5 Bar
Outlet Pressure
2.5 – 7 Bar
Motor Power
18.5 kW or 22 kW
Flow Rate
10-50 m3/h
Service Water Usage
20 l/h
Weight
210 kg or 225 kg
Dimensions
908 x 460 x 930 mm or 908 x 680 x 1150 mm
Voltage
230/400V 50Hz

Operating Characteristics


Working mechanism
Rotor-stator principle
Flow type
Batch / Inline
Homogenization capability
Equivalent to 50-80 Bar
Shear rate
Up to 120,000 s-1
Outlet pressure
2.5 – 7 Bar
Setup versatility
Batch operation / Inline setup
Positive feeding requirements
For high-viscose applications (>500 cP)
CIP/SIP capability
CIP
Integrated steps
Emulsification,Reduction of droplet size,Shear of slurries
Automation level
Manual / PLC / Frequency controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Homogenisation equivalence
50-80 Bar
Product compatibility
Emulsification,Concentrates,Pigments

Physical Characteristics


Machine footprint
908 x 460 x 930 mm
Machine footprint
908 x 680 x 1150 mm
Feed/Discharge Method
Tri-clamp inlet/outlet
Frame type
Frame with 4 legs

Custom Options


Control panel type
Start/stop box with frequency inverter
Shaft seal type
Double mechanical shaft seal
Valve options
Manual regulating seat valve
Voltage options
Alternative voltage on request
Motor options
Other motors,NEMA,etc. on request
Additional loop option
Bypass loop for extra recirculation
Fitting type
SMS DIN/ISO on request
Compliance option
ATEX certification
