Side bar filter press

Filtration equipment separates solid matter from liquid by using a filter medium. The filter allows only the fluid to pass through but retains the solid matter. The choice of filtration equipment depends on the particle size, the consistency of the mixture, and the nature of your product.

Filtration

You can separate liquids and solids in semifluid materials with a filter press. This machine may be automatic or manual, and passes the viscous substance through a series of filter chambers that press against one another to squeeze out the liquids, draining them in a channel at the base of the structure. The liquids are extracted using pressurized air, leaving only the solids to be collected from between the movable plates.

Batch

Reliable and low maintenance filtration of fluids with high dirt load is essential to many industries. From chemicals to energy production to edible oils, product quality is often dependent on an efficient filtration process.


<h2>A filter cartridge with robust design excellent cake stability, and minimal pressure drop</h2>
Parker Twin Filter’s Horizontal Pressure Leaf filters use a series of horizontally positioned filter leaves in a completely closed horizontal tank. The leaves contain a filter medium that is tailored to the application. As dirty fluid flows through the medium over the leaves toward the tank outlet, solids are left behind in the medium forming filter cake which must be periodically removed. The filters units are designed for either batch or continuous filtration processes and are optimized for filtrate flow and cake discharge.

Horizontal pressure leaf filters

liquid

Reliable and low maintenance filtration of fluids with high dirt load is essential to many industries. From chemicals to energy production to edible oils, product quality is often dependent on an efficient filtration process.


<h2>A filtration system for high solid content liquids with high filtration area and minimal vessel size</h2>
Parker Twin Filter’s Vertical Pressure Leaf filters use a series of vertically positioned filter plates in a completely closed vertical or horizontal tank. The plates contain a filter medium that is tailored to the application. As dirty fluid flows through the medium over the plates toward the tank outlet, solids are left behind in the medium forming filter cake which must be periodically removed. Filter leaves are of a robust 5-ply wire mesh design. The filter units are designed for either batch or continuous filtration processes and are tailored to each customer application.

Vertical pressure leaf filters

From chemical processing, to energy production, to edible oils production, product quality is often dependent on an efficient and reliable filtration process. High quality filter leaves are the key trouble-free high quality filtration results and these leaves have been known to reliably serve a wide variety of processes for up to 20 years at a time.


<h2>Robust, customizable filter leaves for maximum throughput and service life</h2>
Parker Twin Filter’s filter leaves are constructed of several layers of wire mesh. An inner coarse mesh provides structure and support while finer meshes are mounted on the outside according to the customer’s filtration media requirements. Leaf construction is either bolted or riveted. This arrangement allows for optimum flow of the filtrate for minimum pressure drop and a solidly constructed leaf that will serve for many years. Many options exist for filtration media construction materials allowing the leaves to be tailored to meet any customer requirement. Efficient cake release and chemical compatibility with the customer’s filtrate are also factors that these leaves are designed for.

Filter pressure leaf

Reliable and low maintenance filtration of fluids with high dirt load is essential to many industries. From energy production, to chemicals processing, to production of edible oils, product quality is often dependent on an efficient filtration process.


<h2>A filter cartridge with excellent cake stability and complete product recovery</h2>
Parker Twin Filter’s Horizontal plate scavenger filters use a series of horizontally positioned filter plates in a completely closed vertical tank. The plates contain a filter medium that is tailored to the application. As dirty fluid flows through the medium over the plates toward the tank outlet, solids are left behind in the medium forming filter cake which must be periodically removed. The filter systems can accommodate an 8 bar working pressure with fluid temperatures of 100 C.  Allowable pressure differential across the filter plates is 3.5 bars. The Scavenger line includes a final filter plate that is at the very bottom of the tank, filtering the small amount of fluid that may otherwise accumulate there. This makes the Scavengers especially suited for processing expensive fluids since there is very little waste. The filter units are designed for either batch or continuous filtration processes.

Horizontal plate scavenger filters

Continuous

To name just a few of the myriad applications for overhead filter presses: industrial mineral industries such as ceramics and sand washing plants use them for water reclamation; mining operations use them for extraction of metal concentrates and processing of tailings, and industrial and municipal waste water treatment plants use them for volume reduction of waste materials.  Overhead filter presses are successfully employed by any plant manager that needs automatic operation, high efficiency and easy maintenance.


<h2>An extremely clean and efficient press filtration process</h2>
Tefsa has been a leader in the design and manufacture of press filtration equipment for over 40 years. The company's overhead filter press represents the state-of-the-art for press filters offering cleaner operation, much better access to filter plates for inspection and filter cloth changing, and fast, reliable automatic plate discharge and change out.  Since the filter plates in these machines are suspended from above and the caked is discharged at the bottom, the plate transport mechanism stays completely clean and can thus move very quickly and be operated automatically for long periods of time with very little maintenance. Furthermore, since there is no plate transport mechanism blocking access to the sides of the plate stack, an operator has full access to either side of the filter plates making filter cloth and change out and plate inspection much quicker and easier than with other units. Many options and accessories are available to suit your particular process needs and capacities range from 81 to 1.066 square meters of filtration area.

Overhead filter press

Separation process to separate components of a liquid mixture, for recovering dissolved solids from liquids. Choice of a suitable technology depends on the identification of the key physical or chemical property, such as size, mass, density, or boiling point, which sets the product of interest apart from the rest of the components. Separation technology are widely used in the pharmaceutical and chemical industries for the isolation of active ingredients and high purity chemicals.

Separation

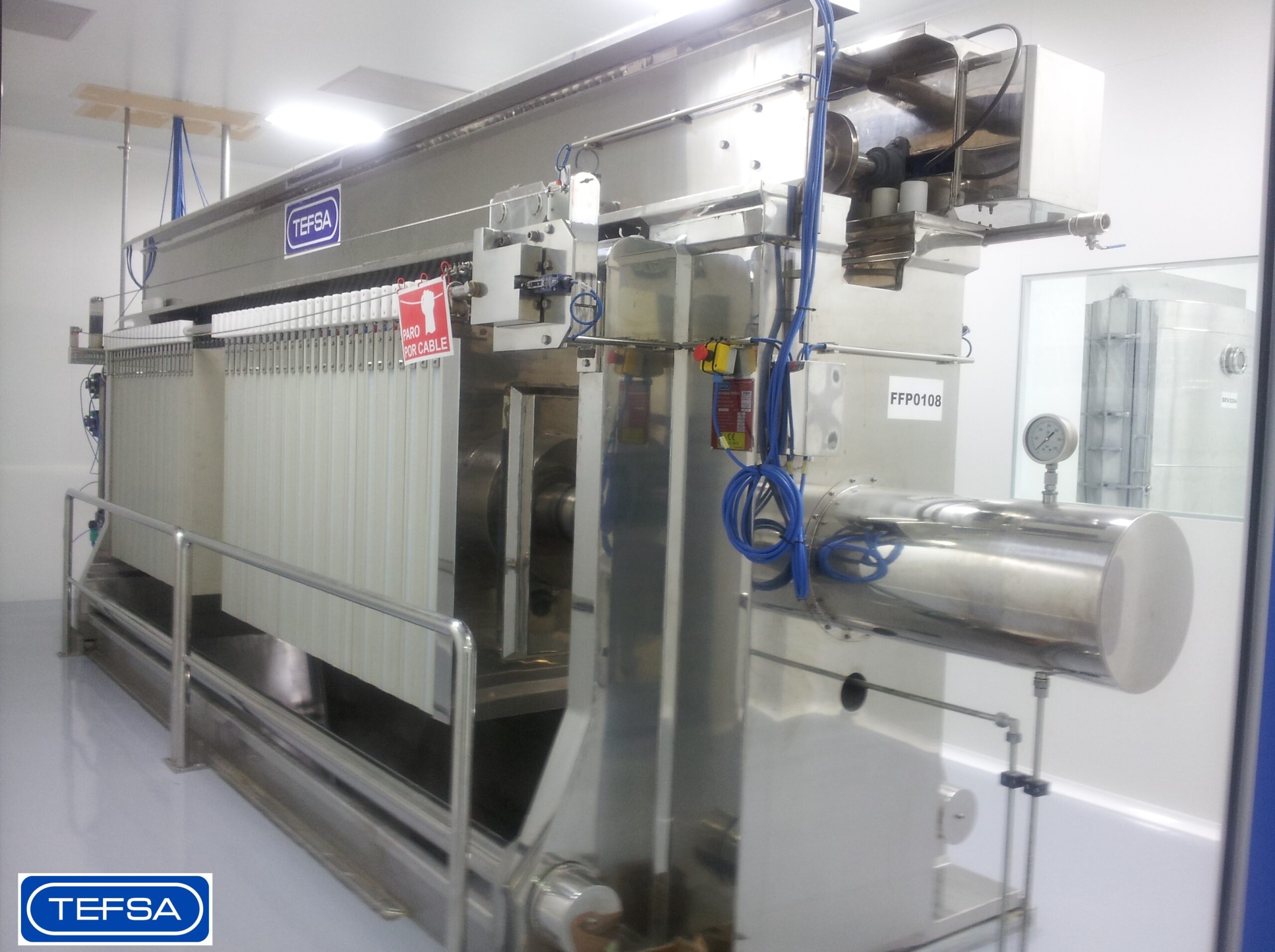

Food and pharmaceutical plant managers need equipment designed for easy access to all components for cleaning, is fully compliant with modern standards for hygienic production, has filter plate transport mechanisms that stay clean and operate reliably, has minimal maintenance requirements, and runs with minimal operator intervention.


<h2>An extremely clean and efficient press filtration process for the food and pharmaceutical industries</h2>
Tefsa's hygienic filter press represents the state-of-the-art for press filters offering cleaner operation, much better access to filter plates for inspection and filter cloth changing, and fast, reliable automatic plate discharge and change out.  Since the filter plates in these machines are suspended from above and the caked is discharged at the bottom, the plate transport mechanism stays completely clean and can thus move very quickly and be operated automatically for long periods of time with very little maintenance.  Furthermore, since there is no plate transport mechanism blocking access to the sides of the plate stack, an operator has full access to either side of the filter plates making filter cloth and change out and plate inspection much quicker and easier than with other units.

The general cleaner operation and easy cleaning of these hygienic filter presses make them particularly well suited for food and pharmaceutical production.  Many options and accessories are available to suit your particular process needs and capacities range from 81 to 1.066 square meters of filtration area.  Tefsa can manufacture these units to comply with all food-grade and pharmaceutical-grade equipment standards.

Hygienic filter press

Production of dry cakes is required in a variety of industries and robust, low-cost side bar filtration presses are the perfect choice when worry free operation with a lesser degree of automation is required. Whether for water reclamation, waste volume reduction, or primary product manufacturing, plant managers need filtration equipment that is capable, efficient, and reliable and side bar filter press is often an excellent choice.


<h2>Low cost, batch production of extremely dry filter cakes</h2>
Tefsa has been a leader in the design and manufacture of high quality filtration equipment for over 40 years. The company's expertise is applied to the smaller scale production of dry cakes from slurries with their line of side bar filter presses. The filter press features a hydraulic ram and filter plates integrated into a rugged frame which includes two horizontal side tie bars to resist the force of the ram as the filter plates are squeezed.  The filter plates include handles supported by the side bars and are easily accessed for removal. Standard filtration pressure range is between 6 and 16 bar with specialized units being capable of up to 60 bar.  These high pressures generate extremely low moisture content cakes and maximum liquid recovery while requiring minimal use of additives.

Best suited for pilot or smaller scale production applications, the side bar filter press offers a range of available filter areas from 1.7 to 253.5 square meters and is used for batch rather than continuous processes. Tefsa offers models of side bar filter presses that run in manual mode; where the hydraulic ram is actuated by a manual pump and plates and cake changed manually, semi-automatic mode; where the ram is actuated via an electric pump and the plates and cake are changed manually, and fully automatic mode; where the ram, actuated electrically and the plates are transported and cake discharged without operator intervention.  All of the models are of a very simple and robust design and are known for extremely long service lives and minimal maintenance requirements.

When a saturated slurry or sludge must be dehydrated with high yield results mining and other heavy industries often turn to press filter systems.  Customers in these industries need precise control of filtration parameters for optimized filtration and material recovery, as well as the peace of mind that comes with a simple and robust design, fast cycle times, and minimal downtime.


<h2>Optimized extraction of solids for maximum material recovery</h2>
Tefsa has been providing high yield filter presses that meet these needs for more than 40 years.  The mining industry is well served by this line because of the optimal solids extraction results that can be achieved.  Applications involving metal concentrates, industrial minerals, coal, and tailings plants in particular have benefited from Tefsa's expertise in high yield filter presses.

The high yield filter press can be run in a completely automatic and programmable mode controlling all process variables to ensure desired results even as the characteristics of the treated material vary.  Parameters that can be controlled include sludge feeding, cake discharge, compressed air blowing, membrane squeezing, filter cloth moving, and filter cloth washing.  Squeezing of the filter plates is achieved via four horizontal hydraulic cylinders supported in a heavy duty, over sized frame and powered by a specially designed and easily accessed power pack.  Unit capacity is determined by the size and number of filter plates.  Future expansion of the units can be achieved economically by the addition of more filter plates within the frame.

High yield filter press

When a saturated slurry or sludge must be dehydrated in a continuous process municipal waste water treatment facilities and industrial waste processing plants often turn to belt press filtration.  Customers in these industries need automatic equipment that does not demand constant attention from operators, the peace of mind that comes with robust and industry proven design, and low investment and operating costs.


<h2>Continuous, automatic sludge dehydration from a leader in industrial filtration</h2>
Tefsa has been providing belt press filters that meet these needs for more than 30 years.  Over 2,000 belt filter press models are installed in over 1,000 customer facilities worldwide.  The belt filter press distinguishes itself from competitors'belt filter presses by an effective pre-dehydration phase that includes a turning of the filtrate bed to enhance initial water extraction, as well as overall robustness and reliability.  Careful attention has been paid to the gradual application of pressure between the belts and shearing action caused by forcing the filtrate material through rollers of varying sized to optimize the efficiency of the filtration and dehydration process.  Several variants are available to most efficiently meet the needs of your process and the belt width of any model can be selected to achieve capacities from 10 to 35  cubic meters per hour.

Belt filter press

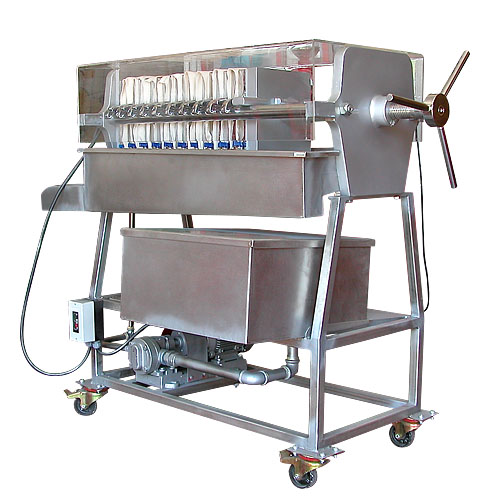

Getting a high-quality oil filtration can be a challenging task,  with a filtration capacity of 100 lts/h - 3,381 fl.oz/h this multipurpose filter will meet your production goals.


<h2>Multipurpose oil filter for oil seeds</h2>
The TYF series multiple-purpose oil filter developed by  the Toper R&amp;D team is a specialized filter press for oil seeds. Not all oils are created with an equal purpose, therefore, filtrating the oil properly so that the obtained result meets expectations is imperative. the TYF-100 comes with a frequency of 50 - 60 Hz and voltage of 220 - 230 - 380 V.  Spice oils, cereal and grain oils, cosmetic oils, fruit seeds oils, flower and nuts seeds oils are among the kinds of oil in which this filter can be utilized.

Small batch filter press for oil seeds

solid

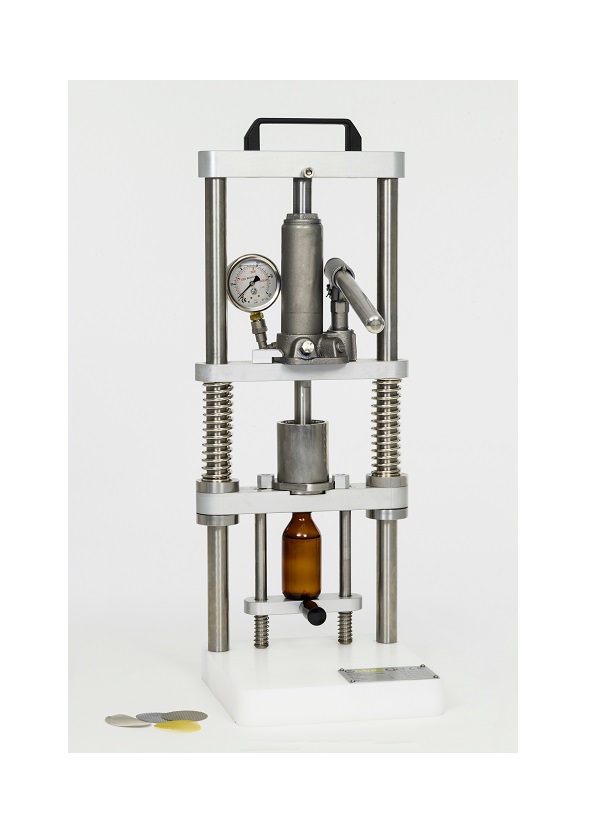

Therapeutic uses for cannabis oil are becoming more widely available. For pharmaceutical uses, the cannabis oil needs to be filtered to ensure product quality and safety. Small-scale production or R&amp;D work demands a simple yet robust manual solution for pressure filtering the oil.
<h2>Press and filter cannabis oil into bottles up to 100ml</h2>
The cannabis oil press TC from Multigel is a small form-factor manual pressure filter designed specifically for pharmaceutical production of cannabis oil.

A solid base plate holds the vertical machine structure securely. External components are made from stainless steel, with product contacting areas of AISI 316.

The TC can fill bottles of up to 100ml in volume and has an oil reservoir of 100ml capacity accordingly. Reservoir, filler cap and all oil-contacting parts are easily removable for cleaning and sanitization. Replacement filters are available and are simple to fit when required.

The pressurisation system is manually hydraulically operated, with ergonomic handle requiring minimum force to deliver the oil through the filter at high pressure. Easily readable manometer allows for optimum pressure to be maintained throughout the filtration.

The small footprint and light weight of the TC filter press makes it ideal for smaller spaces and it can be moved to alternative locations easily.

&nbsp;

Benchtop cannabis filter press

Filter presses

Cocoa minus its fats makes cocoa powder. Deriving this culinary element follows a careful process of roasting and winnowing cocoa beans before the nibs are ground, generating a liquor. The butter that results from melting fats is removed to leave the ingredient that defines recipes from brownies to a Frostbite cocktail.

Cocoa powder

Cocoa butter is the fat product of cocoa liquor. It is an integral part of the chocolate-making process. To make cocoa butter, roast and process cocoa beans with the help of a cocoa butter production machine. After that, it undergoes continuous crushing – forming a rich liquid, known as cocoa liquor. You can finally press the liquid to extract cocoa butter.

Cocoa butter

Cocoa liquor or chocolate liquor is a pure, thick cocoa mass containing equal amounts of cocoa solids and cocoa butter. It is made from fermented, dried, and roasted cocoa beans which are cracked to obtain the nibs. The cocoa nibs are then ground into a thick paste called cocoa mass which is melted to became the liquor.

Cocoa liquor

Nut oil

With the right processing machines, almonds, cashews, pine nuts, coconuts and hazelnuts can turn into healthy plant-based milk. To produce it, grind the nuts, screen and mix them till you obtain a milky white liquid.

Plant-based milk

As simple as its own ingredients, the grain-hops-yeast trifecta along with water are the big four ingredients for making beer. The beer-making process is known as brewing and involves several steps like milling, mashing, lautering, boiling, and fermentation.

Beer

The winemaking process starts with harvesting and crushing grapes, goes through fermentation, ageing and finishes with packaging. Winemaking supplies vary according to the desired wine and the production or plant size.

Wine

The classification of sunflower seeds changes according to the pattern of its shell or hull. If the shell is solid black, it is an oilseed sunflower. With these, you produce sunflower oil. If the shell is striped, it is a non-oil sunflower seed or confectionery sunflower seed. These usually become snack food products. Whether to make them as snacks or oil, processing sunflower seeds include steps like drying, screening and cleaning, grading, roasting and de-hulling, flavoring, grinding, pressing, refining, and packing.

Sunflower seeds

Pineapples, oranges, passion fruit, you name it. A fruit juice process begins with selecting and cleaning the raw material of your choice and goes through steps like extraction and a filtration machine until it reaches market shelves in bottles. Juice processing equipment varies according to the amount of water in the fruit.

Fruit juice

The cannabis industry is one of the fastest growing in the world with a revenue of $20.47 billion in 2020 which is expected to soar up to $197.74 billion in 2028. The famous cannabis substance that causes marijuana's psychological effects is THC and it was first isolated in 1964. There are two methods of extracting THC from cannabis: solvent-based and non-solvent extraction. Each technique requires different THC oil extraction equipment.

Panax ginseng is a medicinal plant with a long history steeped in myth. The term “panax” itself is derived from a Greek word for “panacea” or “cure all”. As ginseng processing technology continues to develop, this famous traditional extract keeps finding new applications.

Ginseng extract

What’s the only living connection between our present world and the age of dinosaurs? The ginkgo biloba plant. Also known as the maidenhair tree, it is regarded as a living fossil and has been around for more than 200 million years. Ancient civilizations in China were already mastering ginkgo processing centuries ago and the tradition soon flourished around the world.

Ginkgo extract

Around a third of your natural protein composition is collagen. But the human body still finds good use for more of it, whether to reinforce joints or aid digestion. Collagen powder processing breaks the chains of amino acids into smaller units, allowing them to be consumed at higher concentrations without changing your diet.

Collagen powder

API making equipment must observe rigorous quality standards across the entire manufacturing process. The pharmacodynamic properties of active pharmaceutical ingredients make them highly sensitive to their environment, making API production a tightly regulated field.

Active pharmaceutical ingredients (API)

Growing populations and intensive farming in the last centuries reduced soil nitrate levels. Aware of the risks to food security, chemists Fritz Haber and Carl Bosch developed a way to industrialize synthetic nitrogen fertilizer production. They created the Haber-Bosch process for ammonia synthesis which is still used today. Manufacturers produce over a hundred million metric tons of nitrogenous fertilizers every year.

Nitrogen fertilizer

Phosphorous is literally at the root of the food industry. An essential ingredient in agriculture, it contributes to plant seed formation and root development. But farmers do not simply give their soil a dose of the chemical element. Instead, phosphorous fertilizer processing equipment blends it with other materials to manufacture effective formulas.

Phosphorus fertilizer

Carbon blacks are fine particles that consist mainly of carbon. Its production became popular in the second century with the establishment of paper production. Hydrocarbons such as oil and natural gas are the basic raw materials for manufacturing them. However, the properties of carbon black differ depending on the processes carried out with the use of carbon making machine.

Carbon black

Dyes lend color to the things we consume. The foods we eat, the clothes we wear, and even the keyrings that separate your bunch all have a splash of dye added. Historically, colors were extracted from the natural world, but that process has been replaced by processing technology. Dye manufacturing equipment produces colors that are high in definition and consistency.

Plastic pollution is one of the biggest climate-related problems mankind has. So what are your options? A bioplastic machine can help create an alternative to traditional plastics. Bioplastics, differently from regular plastics, don’t cause environmental contamination. Also, they don’t contain harmful additives. Even with these benefits, the annual production of bioplastics is still less than one percent of all plastic making. However, the market is witnessing steady growth due to a rise in demand.

Bioplastics

Fodder

In the feed sector, it's common to talk about feed as balanced, compound, or concentrate. Many people use one of these terms to refer to any feed mill product. However, the processing of feed concentrates, only requires grinding and mixing. The further transformation into pellets adds is an added value for the market.

Feed concentrates

Only about 6% of the soy produced globally is directly consumed by humans, typically as edamame beans, tofu, or soy milk.  More than three-fourths of global soy production goes to animal feed. The rest is processed by soybean meal technology into oils or used for biofuels and other industrial processes.

Soybean meal

Cotton has been used for about five millennia in ancient civilizations in America, Africa, and Asia. But up until the nineteenth century, cottonseed was not considered a product of value. The first cottonseed oil production started in 1833, consequently forming the cottonseed cake. Nowadays, we know cottonseed meal is a useful by-product for the feed industry and the fertilizer sector.

Cottonseed meal

Plant waste

The cooking oil in your kitchen could be transformed to biodiesel. Oily biomass such as soybean, animal fats, or recycled grease make excellent feedstocks to produce the alternative transport fuel. Materials are combined with an alcohol in a transesterification reactor that converts the mass into crude biodiesel. The finished product is a low-sulfur, biodegradable fuel that can be used in its pure formulation or in petroleum diesel blends.

Biodiesel

Oleochemicals

Rapeseed oil comes from the seeds of rapeseed plants. You clean the seeds before they undergo other processes to extract oil. There are two methods of producing rapeseed oil: one by cold pressing and filtration, the other by applying heat and pressing the seeds. Add a solvent to the remaining solids and wash it off as the oil goes through further refining processes such as cooling, bleaching, and steam distillation.

Rapeseed oil

After pasteurizing and homogenizing the raw milk, you need to ferment the milk with starter culture until solid curds and liquid whey is formed. Then, the liquid whey goes through a filtration and drying process to turn it into powder. Before sending it to packaging, flavorings are usually added.

Whey protein

Ancient civilizations were using yeast as it naturally occurred in bread-making and brewing. But yeast processing equipment wasn't developed and fully commercialized until the end of the 18th century. Today, this industrialized micro-organism is critical in producing biofuels and other products beyond food and drinks.

Yeast

Calcium carbonate makes up almost one-twentieth of the earth’s crust. But the abundant mineral is found in many living things, including the human body. However, calcium carbonate processing extracts the multi-purpose material from inorganic sediments, namely limestone, chalk, and marble.

Calcium carbonate

When it comes to alternative plant-based sources, we always think about replacing meat and dairy. But have you ever thought of replacing food additives such as gelatine, an animal-derived ingredient? Agar-agar is emerging as a seaweed-based alternative. The appeal of agar-agar is that it doesn't need to be refrigerated; it is insoluble in cold water and dissolves well in liquids at over 90° Celsius. You find it in powder format for most industrial applications. But, agar-agar processing also delivers flakes or threads for food production.

Agar-agar
