Vacuum filtration for large suspension volumes
For high-volume slurry filtration, streamline your process with a rotary disc filter that optimizes efficiency by reducing pressure losses, ensuring minimal maintenance and continuous, reliable operation.
Filters and Dewaters Suspensions Efficiently

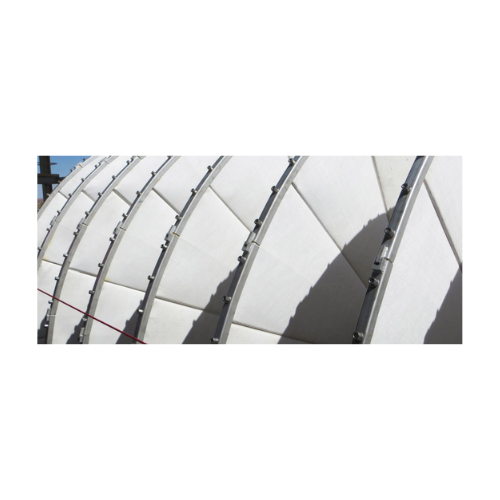

The BoVac Disc Filter from BOKELA is a robust vacuum filtration solution designed to handle large-scale dewatering tasks across a range of industries including alumina refineries, coal processing, and fertilizers. Its unique design uses rotating disc technology to effectively separate and dewater suspensions, yielding end-products such as aluminum oxide and metallurgical coal. BoVac Disc Filters offer filter areas up to 352 m² per unit, allowing for substantial throughput in continuous operations. Equipped with fiber-reinforced polymer segments, they ensure easy maintenance with minimal downtime. Fully automatic operation and flexible process adaptation make this filtration system ideal for integration into existing production lines, reducing energy consumption through optimized hydraulic performance. Additionally, they feature large trapezoidal filtrate pipes for superior hydraulic efficiency and minimal pressure loss, culminating in high operational reliability and low operating costs.
Benefits
- Achieves high throughput with up to 100% more capacity than conventional filters.
- Minimizes operational costs through low maintenance requirements and long filter cloth life.
- Optimizes energy efficiency with reduced pressure losses and superior hydraulic performance.
- Enhances process flexibility with modular design adaptable to specific conditions.
- Supports sustainable operations with efficient dewatering and reduced waste handling.
- Applications
- Al-hydrate,Flotation coal concentrate,Tailings,Coal,Potash/fertilizers,Alumina,Zinc tailings,Copper/gold tailings,Base metals
- End products
- Activated alumina,Gold concentrate,Ammonium sulfate,Aluminum hydroxide,Aluminium oxide,Sulfate of potash,Copper concentrate,Clean coal concentrate,Metallurgical coal,Potash muriate,Zinc concentrate,Ammonium nitrate fertilizer
- Steps before
- Suspension Preparation,Slurry Homogenization,Ore and Mineral Processing,Coal Preparation,Alumina Refinery Processing
- Steps after
- Dewatering,Filter Cake Washing,Mine Backfill Preparation,Tailings Storage,Precipitation Tank Recycling
- Input ingredients
- suspension,alumina,coal,potash,base metals,tailings,zinc tailings,copper/gold tailings,Al-hydrate,flotation coal concentrate
- Output ingredients
- filter cake,dewatered solids,solid-liquid separation,purified solids
- Market info
- BOKELA is known for its expertise in engineering and manufacturing filtration technology and equipment, particularly for solid-liquid separation processes in various industries, offering innovative, high-performance solutions with a strong reputation for reliability and efficiency.
- Filter Area
- Up to 352 m² per filter unit
- Number of Discs
- 1 to 6 discs
- Disc Diameter
- 4.1 m to 6.4 m
- Number of Segments per Disc
- 20–30 segments
- Pressure Difference
- Up to 100% higher than conventional
- Throughput
- Up to 100% more than conventional filters
- Operation Mode
- Fully automatic
- Segment Weight
- Polymer
- Filtration Type
- Vacuum filtration
- Automation
- Fully automatic
- Immersion Depth
- 50% immersion depth of filter discs
- Segment Material
- Fiber-reinforced polymer
- Filtrate Pipe Design
- Trapezoidal cross-section
- Operating Reliability
- High operational reliability
- Operational Flexibility
- High degree of flexibility
- Working Mechanism
- Rotary Disc Filter
- Automation Level
- Fully Automatic
- Batch vs. Continuous Operation
- Continuous
- Cleaning Method
- Online Cloth Washing
- Energy Efficiency
- Low Operating Costs
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Applications
- Alumina,Coal,Potash/Fertilizers,Base Metals,Tailings
- Compact footprint
- Very small footprint due to large specific filter surface
- Filter size
- Various sizes up to 352 m² per filter unit
- Filter disc diameter
- 4.1 to 6.4 meters
- Number of filter discs
- 1 to 46
- Filter construction
- Modular design with different diameters and variable number of filter discs
- Material type
- Fiber-reinforced polymer segments,metal segments
- Segment weight
- 10 kg for polymer segments,19.5 kg for metal segments
- Filter trough design
- Special compartments for suspension homogenization
- Filter trough immersion depth
- 50% immersion depth of the filter discs
- Walkways
- Permanently installed between the discs
- Filter Segment Material
- Metal / Polymer (FRP)
- Filter Area Size
- Up to 352 m²
- Disc Diameter
- 4.1 m / 5.6 m / 6.4 m
- Number of Filter Discs
- 12 / 34 / 68
- Control Head Design
- Pre-separation,flow-optimized
- Filtrate Pipe Design
- Trapezoidal cross-section
- Filter Configuration
- Modular with different diameters
- Trough Compartment Design
- For suspension homogenization
