Wine filtration system
Achieve crystal-clear wines and sparkling beverages by efficiently removing suspended particles and microorganisms, ensuring impeccable quality and taste.
Filters and Purifies Wine and Sparkling Beverages

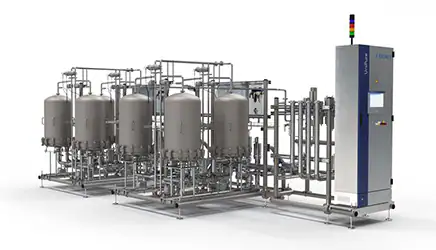

The Krones UniPure Filtration System is specially engineered for wine and sparkling beverage producers seeking to maintain high standards of clarity and taste. This system utilizes a candle filter design for effective removal of particles and microorganisms, ensuring your Chardonnay, Prosecco, or fruit-infused sparkling wines meet the finest quality benchmarks. With processing capabilities ranging from 5,000 to 30,000 liters per hour, it supports both continuous and high-speed operations while allowing flexible integration into existing production lines. The system is highly customizable, letting you select the filter elements, housing, and controllers to fit your unique requirements. The UniPure is compact, offering low transport costs, and features easy maintenance via a lightweight gantry crane design for quick filter element replacement. Ideal for wineries and fruit beverage manufacturers, this system is configurable for various production targets, supporting parallel or singular line operations, and maximizing throughput efficiency.
Benefits
- Maximizes operational efficiency with flexible filtering and flushing configurations.
- Minimizes maintenance efforts with an easy-access gantry crane for rapid filter replacement.
- Lowers transport costs due to its compact design, fitting into standard sea-freight containers.
- Enhances product purity by effectively removing particles and microorganisms.
- Adapts to diverse production needs with modular component customization.
- Applications
- Fruit secco,Sparkling wine,Wine
- End products
- Fruit-infused sparkling wine,Moscato,Cabernet sauvignon,Rosé wine,Chardonnay,Prosecco,Mulled wine
- Steps before
- Clarification,Separation,Sedimentation
- Steps after
- Bottling,Packaging,Storage
- Input ingredients
- wine,sparkling wine,fruit secco,undesirable particles,suspended matter,microorganisms
- Output ingredients
- filtered wine,filtered sparkling wine,filtered fruit secco,clear liquid
- Market info
- Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.
- Filtration system
- Candle filter
- Capacity
- 5,000 to 30,000 litres per hour
- Particle removal
- Undesirable particles,suspended matter
- Microorganism removal
- Yes
- Pore size
- 0.45 µm
- Design dimensions
- 8.7 x 2.2 x 2.3 metres
- Maximum output
- 30,000 litres per hour
- Continuous production
- Yes
- Filter lines
- Up to four
- Flexibility in operation
- Configurable
- Working mechanism
- Candle filter system
- Integrated steps
- Coarse and fine filtration
- CIP/SIP
- Backflushing for filter line cleaning
- Batch vs. continuous operation
- Inline continuous
- Parallel operation capability
- Up to two filter lines simultaneously
- Flexibility
- Modular components for customized configuration
- Filtration range
- 5,000 to 30,000 litres per hour
- Maintenance ease
- Gantry crane for easy filter exchange
- Microorganism removal
- 0.45 µm pore size filtering
- Biological compatibility
- Wine,Sparkling Wine,Fruit Secco
- Compact footprint
- 8.7 x 2.2 x 2.3 meters
- Filter lines
- Up to four filter lines
- Candle filter
- Used in filtration
- Filter type
- Coarse and fine liquid filters
- Pore size of fine filter
- 0.45 µm
- Gantries
- Lightweight gantry crane
- Control panel type
- Modular component system
- Integration possibilities
- Custom modular configuration
- Filter element options
- Candle filter with varied specifications
- Housing type
- Flexible,configurable
- Valve options
- Individually selectable
