Centrifugal disc filter for solid-liquid separation

Optimize solid-liquid separation in your processing line with an advanced filtration system designed for efficient handling of high-volume suspensions and slurries, ensuring rapid and thorough purification while minimizing product loss.

Separates and Washes Solid-Liquid Suspensions Efficiently

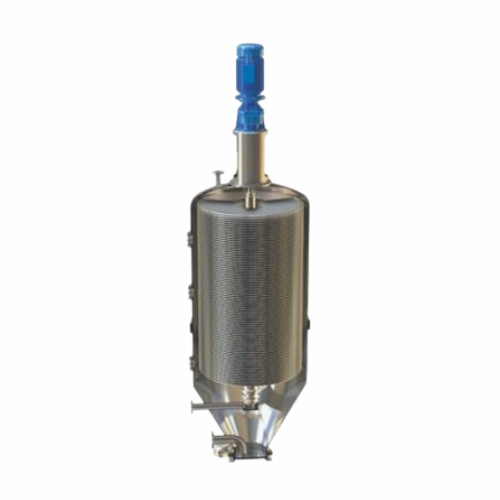

The FUNDA® Centrifugal Disc Filter from GMM Pfaudler is a robust solution for efficient solid-liquid separation in the chemical, pharmaceutical, food, and energy sectors. This pressure filter uniquely combines horizontally arranged, self-supporting filter screens to facilitate pre-coat or residue filtration of large quantities of diluted suspensions. Designed for automation within a closed system, it minimizes product losses through heel volume filtration, effectively conducting cake washing in a cascade operation.

The FUNDA® filter is adaptable to various applications, offering two configurations: Type R for cake discharge and Type A for slurry discharge. It allows for versatile operations, with the capability for both cake and slurry discharge when configured appropriately. Its construction materials, available in stainless steel, Hastelloy, and other special alloys, provide strong corrosion resistance, crucial for handling aggressive substances.

This filter supports continuous and automated processes, integrating seamlessly into existing production lines with options for PLC-controlled systems and available pilot units to facilitate on-site testing.

Meeting stringent industry standards, the FUNDA® filter includes features such as dished filter plates with spacer and clamp rings, multi-layer sintered filter media, and various shaft sealing options. Engineers can benefit from MAVAG’s extensive range of off-the-shelf options and engineering expertise, ensuring rapid deployment and customization of your filtration system with standard, proven components.

Benefits

  • Minimizes product loss with optimized heel volume filtration.
  • Enhances operational efficiency through automated, continuous processing.
  • Customizable materials and configurations for compatibility with aggressive chemicals.
  • Reduces labor costs with PLC-controlled system integration.
  • Facilitates easy scale-up and testing with available pilot units.

General


Applications
Food,Energy,Suspensions,Chemical,Slurries,Pharmaceutical
End products
Biofuels,Active pharmaceutical ingredients,Chemical intermediates,Paper pulp suspensions,Catalyst recovery,Vegetable extracts,Fruit juice,Waste sludge
Steps before
Purification,Grinding,Emulsification
Steps after
Filtration,Drying,Cake Washing
Input ingredients
diluted suspensions,slurry,heel volume
Output ingredients
filtered solids,filtrate,washed cake
Market info
GMM Pfaudler is known for manufacturing glass-lined equipment, reactors, and engineered-to-order (ETO) solutions for the chemical, pharmaceutical, and allied industries, recognized for their innovation, quality, and global presence.

Technical Specifications


Filtration Area
1–80 sqm
Configuration Types
Type R (cake discharge) / Type A (slurry discharge)
Material Options
Stainless Steel / Hastelloy / Special Alloys
Drive Type
Electric drive with gear reducer / Hydraulic drive
Automation
Automated,closed system
Shaft Sealing Options
Wide range available
Filter Plates
Dished filter plates with spacer rings and clamp rings
Filter Media
Multi-layer sintered filter media
Pressure
Totally enclosed pressure filter
Cascade Operation
Cake washing
Insulation
Seal-welded insulation

Operating Characteristics


Working mechanism
Centrifugal disc filter
Integrated steps
Cake washing in cascade operation
Batch vs. continuous operation
Batch operation
Automation level
Automated,closed system

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel,Hastelloy,special alloys

Product type Characteristics


Product loss minimization
Heel volume filtration

Physical Characteristics


Filtration area
1-to-80 sqm
Filter configuration type
Type R (cake discharge),Type A (slurry discharge)
Material construction
Stainless steel / Hastelloy / Special alloys
Filter screening arrangement
Horizontally arranged
Filter screens
Self-supporting
Discharge method
Cake / Slurry
Insulation
Jacket and seal-welded
Vessel support
Legs or support lugs

Custom Options


Filter Area
1 to 80 sqm
Material Options
Stainless Steel / Hastelloy / Special Alloys
Discharge Options
Type R (Cake/Slurry) / Type A (Slurry)
Peripheral Systems
Automation Systems / Complete Process Skids / Pack-off Systems
Shaft Sealing Options
Wide Range Available
Filter Media Types
Multi-layer Sintered Filter Media
Drive Type
Electric with Gear Reducer / Hydraulic Drive
Jacketing
Seal-welded Insulation
