Pharmaceutical aseptic separation system

Achieve precise separation and efficient drying of pharmaceutical powders with an aseptic system designed to enhance product purity and safety in your production line.

Processes and Dries Pharmaceutical and Chemical Solids

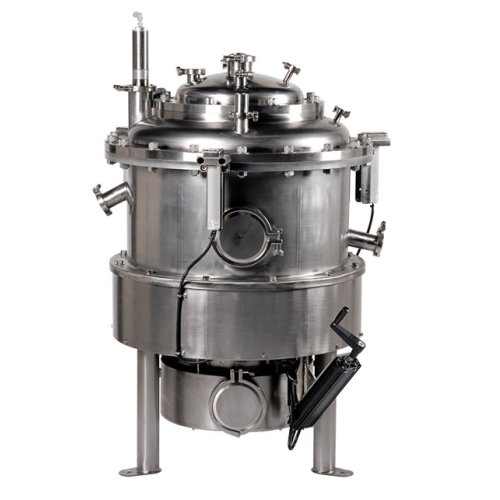

The SWECO PH30 PharmASep, an 800mm pharmaceutical aseptic separator and filter/dryer, is designed for chemical and pharmaceutical processes that require precise separation, filtration, and drying. Its unique Vibro-Dry technology allows vacuum drying, gently tumbling solids to accelerate drying while minimizing agglomerate formation. Handling both batch and continuous operations, the PH30 is ideal for active pharmaceutical ingredients, vaccine components, and nutraceuticals. Capable of processing up to 15 kg of solids, it features a sealed pressure vessel with a polished, crevice-free interior for high yield recovery and safe handling of potent substances. This equipment integrates seamlessly into production lines, enhancing efficiency with its advanced material options that support GMP compliance and ensure resistance to corrosive substances. The PH30 offers easy integration with existing systems and includes options for customization and comprehensive engineering support.

Benefits

  • Enhances product purity with efficient separation and drying processes.
  • Increases operational safety with sealed containment of potent substances.
  • Minimizes product loss through high yield recovery systems.
  • Supports diverse processing needs from batch to continuous production.
  • Facilitates regulatory compliance with GMP standards and customizable configurations.

General


Applications
Fine chemicals,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals,Pharmaceuticals
End products
Dietary supplements,Specialty chemicals,Active pharmaceutical ingredients (apis),Probiotic powders,Pharmaceutical excipients,Vaccine components
Steps before
Purification,Grinding,Emulsification
Steps after
Sterilization,Packing,Tablet Pressing
Input ingredients
solids,wet processes,potent pharmaceutics
Output ingredients
dry processes,high yield product recovery
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Batch size
Up to 15 kg
Design type
Sealed pressure vessel
Process type
Wet and dry processes
Interior finish
Highly polished crevice-free
Technology
Vibro-Dry Technology
Drying method
Vacuum drying

Operating Characteristics


Working mechanism
Vibro-Dry technology
Batch processing capability
Up to 15 kg of solids
Continuous processing
Pilot plants and full production environments
Pressure vessel design
Sealed
Tumbling mechanism
Gently on screen surface
Agglomeration prevention
Reduces formation
Vacuum drying
Integrated
Interior design
Highly polished,crevice-free

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration risk
Medium to High
Batch size
Up to 15 kg

Physical Characteristics


Machine footprint
Compact
Tank shape and size
800mm diameter
Feed/discharge method
Sealed pressure vessel
