Dust collector for dry-batch concrete plants
Ensure dust-free loading of truck mixers in dry-batch concrete plants with an advanced filtration system, optimizing air quality and reducing maintenance efforts while maintaining a compact design suitable for seamless integration into existing facilities.
Controls Dust Emissions in Concrete Plant Operations

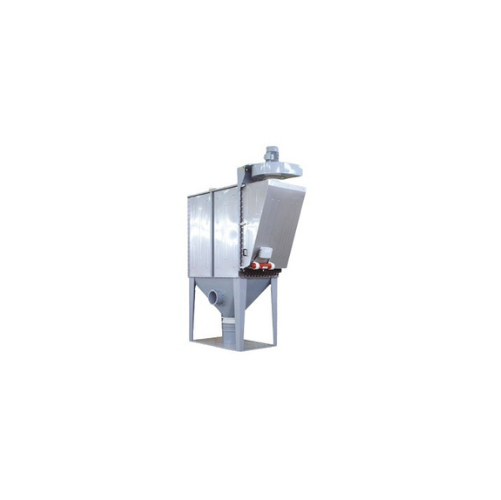

The DRYBATCH R01 from WAMGROUP is a state-of-the-art dust collector specifically designed for dry-batch concrete plants. It effectively manages dust emissions from truck mixer loading operations, thanks to its polygonal stainless steel casing and horizontally inserted pocket-type filter elements. The DRYBATCH R01 uses a compressed air pulse-jet cleaning system, ensuring efficient dust separation and removal. This equipment is ideal for ready-mix concrete producers and is utilized in producing dust-free precast concrete products, infrastructure foundations, and more. With a processing capacity of up to 6,000 m³/h, it features a multi-voltage electronic control panel and a low-noise suction fan for seamless plant integration. The compact design offers a corrosion-resistant casing and easy filter maintenance, ensuring long-lasting performance and reduced operational downtime.
Benefits
- Ensures cleaner air with under 10 mg/Nm³ dust emissions.
- Simplifies maintenance with user-friendly access and quick filter changes.
- Enhances production efficiency by reducing dust-related interruptions.
- Adapts to various power requirements with multi-voltage capabilities.
- Minimizes noise pollution with integrated low-noise suction fan.
- Applications
- Building,Ready-mix concrete,Dust filtration,Construction
- End products
- Infrastructure foundations,Concrete beams,Precast concrete products,Cement dust collection,Road pavement panels,Dust-free truck mixer loading,Architectural concrete,Structural concrete elements
- Steps before
- Aggregate Reclaiming,Material Loading,Pre-separation
- Steps after
- Dust Filtration,Dust Collection,Concrete Mixing
- Input ingredients
- dust,dirty air,airflow,heavier dust particles
- Output ingredients
- clean air,collected dust
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Filter surface
- 54 m² (580 sq ft)
- Air volume
- up to 6,000 m³/h (up to 3,530 cfm)
- Compressed air pulse-jet cleaning
- 5 ~ 6 bar (72 ~ 87 PSI)
- Dust emission
- < 10 mg/Nm3
- Casing material
- Polygonal stainless-steel
- Seal frame coating
- RAL 7001 (silver-grey)
- Fan power
- 11.0 kW (15.0 HP)
- Suction fan noise level
- Low-noise
- Control panel
- Multi-voltage,multi-functional electronic
- Differential pressure meter
- MDPE
- Installation type
- Outdoor
- Filter elements orientation
- Horizontally mounted
- Cleaning system
- Integrated into the hinged front access door
- Airflow entry options
- Top or bottom flange
- Batch vs. continuous operation
- Batch
- Automation level
- PLC / SCADA
- Cleaning method
- Pulse jet cleaning
- Energy efficiency
- Low energy usage due to pulse-jet cleaning
- Changeover time
- Quick access for filter change
- CIP/SIP
- Manual CIP due to maintenance-friendly design
- Abrasion resistance
- Yes
- Corrosive resistance (e.g. acids)
- Stainless steel casing
- Density/particle size
- Adjustable for concrete components
- Cleanability
- Designed for easy access and maintenance
- Application Type
- Suction Application
- Compact footprint
- Yes
- Control panel type
- Multi-voltage,multi-functional electronic control panel
- Filter surface area
- 54 m² (580 sq ft)
- Casing material
- Polygonal 304 stainless-steel
- Suction fan
- 11.0 kW (15.0 HP) low-noise integrated fan
- Mounting options
- Flanged on structure or stand-alone with hopper
- Control panel type
- Multi-voltage,multi-functional electronic control panel
- Discharge method
- Top or side-mounted suction fan
