High-purity water system for clinical diagnostic analyzers

Ensure your clinical analyzers receive uninterrupted, high-purity water supply with this robust solution, featuring advanced purification technologies and a pressurized delivery system, ideal for maintaining stringent laboratory standards and reducing operational costs.

Purifies and Delivers High-Purity Water for Clinical Use

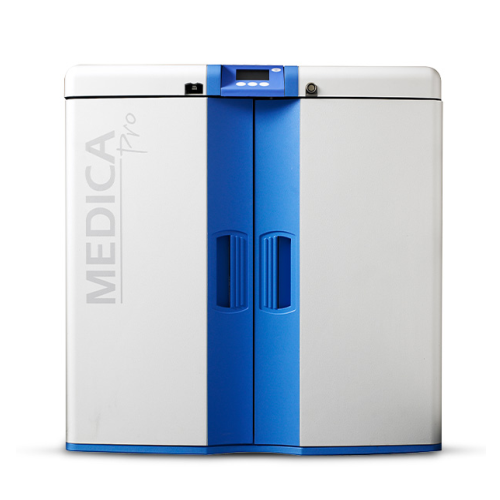

The MEDICA Pro-R and Pro-RE from ELGA LabWater are comprehensive water purification systems engineered for clinical diagnostic applications. Designed to meet Clinical Laboratory Reagent Water (CLRW) standards, they utilize a combination of purification, filtration, reverse osmosis, and deionization processes to supply high-purity water. Ideal for large clinical laboratories, these systems efficiently support high-volume analyzers and automated platforms, ensuring up to 120 liters per hour of purified output. The MEDICA Pro-RE includes a de-gasser for CO2 removal, optimizing consumable lifespan and reducing operational costs. Equipped with self-monitoring software, these systems provide 24-hour operation with emergency bypass capabilities. Compact and upgradable, they integrate seamlessly into varied lab infrastructures, offering configurations from 30 to 120 liters per hour for adaptable space-saving solutions. Compliance with stringent laboratory standards ensures reliability in applications such as clinical biochemistry, microbiology, and molecular biology. Durable with low maintenance needs, they are pivotal in environments requiring uninterrupted, high-quality water supply.

Benefits

  • Ensures consistent water purity, reducing risk of assay errors and enhancing test accuracy.
  • Supports high-volume clinical operations with uninterrupted 24/7 performance.
  • Lowers operational costs by extending consumable life through CO2 removal.
  • Space-saving design optimizes lab workspace without compromising capacity.
  • Adaptable to growing demands with upgradable flow rate configurations.

General


Applications
Microbiology,Mass spectrometry,Molecular biology,Immunochemistry,Electrochemistry,General lab water requirement,Clinical diagnostics,High performance liquid chromatography (hplc),Clinical biochemistry,Cell and tissue culture
End products
Laboratory-grade solvents,Pharmaceutical grade compounds,Protein crystallization reagents,Hormone assay kits,Ion-selective electrodes,Monoclonal antibodies,Blood glucose test strips,Dna sequencing kits,Urine analysis reagents,Pcr reagents,Recombinant dna products,Chromatography column packing materials,Microbial culture media
Steps before
Feedwater Preparation,Pre-treatment,Water Delivery System Setup
Steps after
Analyzer Feeding,Clinical Diagnostics,Sanitization,System Monitoring
Input ingredients
potable water,feedwater,chlorine,chloramines,dissolved gases,inorganic compounds,organic compounds,particulates
Output ingredients
CLRW compliant water,water for clinical diagnostics analyzers,high purity water,water with <1 CFU/ml bacterial specification,water with resistivity >10 MΩ.cm,water with organics (TOC) <30 ppb,water with silica <0.05 mg/l
Market info

Technical Specifications


Inorganics (resistivity at 25°C)
>10 MΩ.cm
Organics (TOC)
<30 ppb
Bacteria
<1 CFU/ml
Particles
0.05 μm filter
Silica
<0.05 mg/l
Delivery flow rate
Up to 4 l/min @ 14psi (1bar)
Production rate
30 l/hr to 120 l/hr
Instantaneous demand
Up to 4 liters/min
Space-saving design
'all in one' design
Reservoir capacity
50 liters

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Space-saving design
Under-bench installation
Flexible installation
Suitable for growth and relocation

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Easy system sanitization

Physical Characteristics


Compact footprint
Space-saving,'all in one' design allows easy under-bench installation
Control panel type
Self-monitoring software
Discharge method
Pressurized feed
Flow rate
2 l/min up to 4 l/min
Production rate
30 l/hr up to 120 l/hr
Reservoir size
50 liter built-in wrap-around reservoir

Custom Options


Compact footprint
Space-saving 'all in one' design
Upgradable configuration
30 l/hr to 120 l/hr production rate
Upgradable configuration
2 l/min to 4 l/min flow rate
