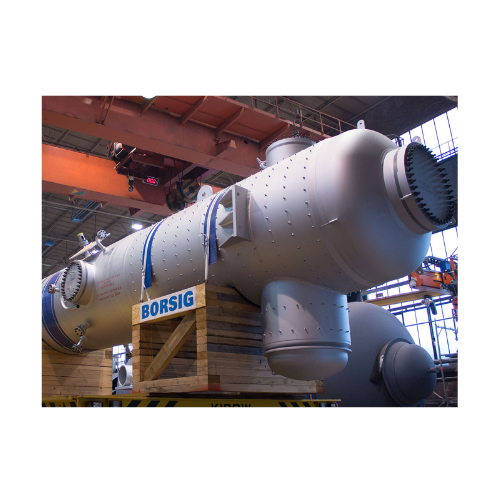

Synthesis gas cooler for partial oxidation of oil or natural gas
Optimize high-temperature gas streams efficiently by employing a synthesis gas cooler, designed to manage extreme conditions, ensure superior heat recovery, and enhance operational reliability in continuous production environments.
Cools and Recovers Heat from Synthesis Gas
The Synthesis Gas Cooler from BORSIG Process Heat Exchanger GmbH is designed to address the rigorous demands of high-temperature gas cooling and heat recovery in petrochemical and refining industries. This fire-tube boiler employs helically wound heating surfaces to effectively reduce synthesis gas temperatures from 1,400 °C to 300 °C, utilizing the recovered heat to generate and superheat steam at pressures up to 140 bar. Ideal for producing hydrogen, carbon monoxide, ammonia, and other industrial gases, this cooler integrates seamlessly into operations handling crude oil or natural gas derivatives.
The unit handles up to 200,000 Nm³/h of gas flow, facilitated by a design that ensures constant gas velocity for optimal self-cleaning. Reinforcement ribs and ceramic coatings provide superior erosion and corrosion resistance, making it suitable for harsh environments with particulate-laden emissions. Engineered for continuous, high-pressure, and high-temperature operations, the cooler’s inlet nozzles incorporate forced circulation to mitigate material stresses. The modular tube design allows for easy access and maintenance, ensuring operational efficiency and longevity.
Benefits
- Enhances energy efficiency by converting high-temperature exhaust into valuable steam output.
- Minimizes maintenance with self-cleaning features and accessible coil designs.
- Withstands harsh chemical environments with advanced corrosion and erosion protection.
- Handles high-capacity gas flow, optimizing production in large-scale petrochemical operations.
- Reduces operational costs through robust, continuous high-pressure processing capabilities.
- Applications
- Industrial gases,Hydrocarbons,Product recovery units,Emission control systems,Oil and natural gas,Petrochemicals,Gas separation systems,Synthesis gas
- End products
- Propylene,Methanol,Carbon monoxide,Ammonia,Aromatics,Ethylene,Ethylene glycol,Urea,Nitrogen,Hydrogen
- Steps before
- Feedstock Preparation,Partial Oxidation,Non-catalytic Cracking
- Steps after
- Steam Generation,Gas Cooling,Corrosion and Erosion Resistance,Soot and Ash Filtration
- Input ingredients
- natural gas,oil,hydrocarbons,feedstock impurities,vanadium,nickel,iron
- Output ingredients
- CO,CO2,H2,H2O,H2S,soot,ash,steam
- Market info
- BORSIG is known for its expertise in manufacturing high-quality industrial engineered-to-order (ETO) equipment, including pressure vessels, heat exchangers, and compressors, with a strong reputation for engineering excellence and reliability in the petrochemical and chemical industries.
- Inlet Temperature
- ~1,500 °C
- Outlet Temperature
- ~300 °C
- Pressure
- up to 8,000 kPa
- Steam Pressure Generation
- up to 140 bar (14,000 kPa)
- Gas Side Flow Rate
- up to 70,000 Nm³/h (expandable to 200,000 Nm³/h)
- Boiler Design Type
- Fire-tube boiler
- Tube Design
- Helically wound heating surfaces
- Tube Diameter
- Decreasing in four to five steps
- Reinforcement Design
- Reinforcement ribs on the water side
- Ceramic Coating
- Applied on the gas side
- High Temperature Resistance
- Up to 1,500 °C
- Pressure Capacity
- Up to 8,000 kPa
- Erosion Resistance
- High resistance
- Corrosion Resistance
- High resistance
- Self-Cleaning
- Helically wound heating surfaces
- Flow Rate Capacity
- Up to 200,000 Nm³/h
- Gas Outlet Temperature
- Around 300 °C
- Steam Pressure Generation
- Up to 140 bar
- Cooling Mechanism
- Forced and natural circulation
- Reinforcement Design
- With ribs and ceramic coating
- Steam Superheating
- Integrated superheater
- Corrosion resistance
- High - Ceramic coating
- High temperature resistance
- Up to 1,500 °C
- Particulate resistance
- Self-cleaning design
- Erosion resistance
- High - Reinforcement ribs
- Machine footprint
- N/A
- Boiler design
- Fire-tube
- Inlet temperature
- 1,500 °C
- Outlet temperature
- 300 °C
- Gas flow rate capacity
- Up to 200,000 Nm³/h
- Tubing configuration
- Helically wound
- Tube accessibility
- Upper and lower manhole
- Protection coating
- Ceramic
- Gas inlet nozzle design
- Reinforcement ribs
- Steam pressure
- Up to 140 bar
- Feed/discharge method
- N/A
- Inlet nozzle design
- Ceramic coating / Reinforced ribs
- Boiler design
- Helically wound heating surfaces
- Gas inlet cooling
- Forced and natural circulation
- Tube coil access
- Upper and lower manhole
