Pneumatic conveying system for dry bulk powders

Ensure seamless and contamination-free transfer of pharmaceutical powders and bulk solids with a high-speed vacuum conveying system that optimizes your production line’s efficiency.

Transfers and Conveys Pharmaceutical Powders and Granules

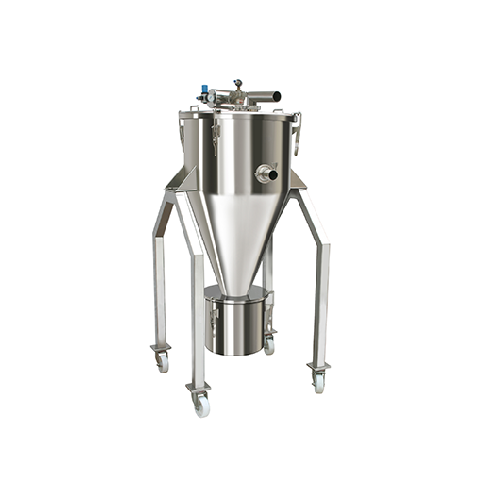

The SigmaTrans from SSPM Systems & Engineers is a sophisticated vacuum transfer system designed to streamline and secure the handling of pharmaceutical powders and granules. It excels in its capacity to maintain product integrity and compliance with CGMP standards through a dust-free, automated transfer process. Utilizing a specially designed blower and an air blasted pulse jet system, it efficiently handles a range of end-products such as paracetamol tablets, vitamin C tablets, and microcrystalline cellulose in automated production environments.

The system can manage capacities ranging from 100 to 5000 kg/hr, making it suitable for both small and large-scale operations. Its compact design includes key features such as an effective cleaning mechanism and contamination control, protecting operators from exposure to active APIs and excipients.

The SigmaTrans integrates seamlessly into your existing production line, accommodating continuous and high-speed operations with either sequential timer or PLC-based system controls. Fabricated using corrosion-resistant stainless steel 316/316L for contact parts, it ensures durability and product safety. The system also offers customization options to align with specific manufacturing needs, backed by SSPM’s engineering support to guarantee optimal integration and performance.

Benefits

  • Increases production efficiency with a high transfer rate up to 5000 kg/hr.
  • Minimizes safety risks and contamination through dust-free operation.
  • Ensures product quality and compliance with CGMP norms.
  • Reduces manual handling, safeguarding operators from hazardous materials.
  • Facilitates seamless integration with existing systems through modular design.

General


Applications
Pharmaceutical powder,Granules,Pharmaceutical tablets,Bulk solids
End products
Ibuprofen tablets,Talcum powder,Calcium carbonate granules,Vitamin c tablets,Amoxicillin capsules,Lactose powder,Aspirin tablets,Paracetamol tablets,Dextrose powder,Microcrystalline cellulose
Steps before
Dry Granulation,Sifting,Milling,Wet Granulation
Steps after
Tablet Pressing,Capsule Filling,Coating,Containment
Input ingredients
powder,granules,bulk solids
Output ingredients
finished product,tablets,capsules
Market info

Technical Specifications


Capacity
100 To 5000 KG/HR
Vacuum Source
Specially designed blower
Filter Cleaning
Air blasted pulse jet system
Discharge
Full opening
Level Sensing
Through level sensor
Material of Construction (Contact Part)
SS 316/316 L
Material of Construction (Non-Contact Part)
SS 304
System Control
Sequential timer or PLC Based
Energy Efficiency
Energy efficient
Dust-free Transfer
Yes
Contamination Control
Yes
Process Integrity
Yes
Effective Cleaning
Yes
Higher Transfer Rate
Yes

Operating Characteristics


Working mechanism
Vacuum Transfer System
Integrated steps
Loading of blenders,sifters,granulators,mills,tablet presses,capsule fillers
CIP/SIP
Effective cleaning,dust-free
Batch vs. continuous operation
Continuous
Energy efficiency
Energy efficient design
Product yield
Higher output with process integrity
Contamination control
Dust-free powder transfer technology
Cleaning method
Air blasted pulse jet system
Automation level
Sequential timer or PLC Based

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Discharge method
Full opening
Control panel type
Sequential timer or PLC Based
Construction material
Contact parts SS 316/316 L,Non-contact parts SS 304

Custom Options


Control panel type
Sequential timer or PLC Based
Material of construction
Contact part SS 316/316L,Non-contact part SS 304
Energy efficiency
Yes
