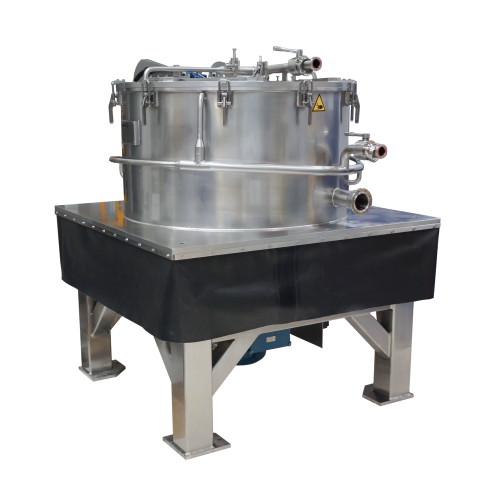

Top discharge centrifuge for pharmaceutical production
Optimize your product yield and quality with precise filtration and gentle discharge, ensuring intact particle integrity across diverse production applications.
Separates and Washes Solid Cakes Efficiently
The HEINKEL V Series, including models V 630 TP to V 1600 TP, offers top discharge centrifuges designed for versatile applications in pharmaceuticals, chemicals, and food processing. These centrifuges excel in adapting to challenging filtration tasks, utilizing lossless filter cake discharge and gentle solids handling to prevent particle destruction, ensuring high purity outputs. With nominal volumes ranging from 46 liters to 820 liters, each centrifuge handles batch operations efficiently, with capacities tailored to specific production scales. Automation features include a PLC-controlled interface and an automatic CIP cleaning system, ensuring seamless integration and minimal downtime. The centrifuge design emphasizes accessibility with easy-to-maintain components, and the construction uses corrosion-resistant materials suitable for stringent GMP and FDA standards. These units are customizable in terms of rotor speed and chamber size, with engineering support available for tailored installations.
Benefits
- Enhances production efficiency by ensuring rapid and lossless filter cake discharge.
- Minimizes product contamination risks with automatic CIP system and accessible design.
- Supports scalability with models accommodating various batch sizes and product types.
- Compliant with GMP standards, suitable for stringent pharmaceutical and chemical applications.
- Lowers maintenance and operational costs with durable, corrosion-resistant construction.
- Applications
- Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
- End products
- Metal powders,Specialty chemicals,Pharmaceutical tablets,Food additives,Active pharmaceutical ingredients (apis),Drug intermediates,Pigment powders
- Steps before
- Purification,Drying,Grinding
- Steps after
- Sterilization,Packing,Coating
- Input ingredients
- pharmaceutical compounds,raw pharmaceutical materials,chemical products,food ingredients,fine chemicals
- Output ingredients
- filtered pharmaceutical solids,lossless filter cake,purified chemical substances,clean solids,extracted pharmaceutical products
- Market info
- Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.
- Basket diameter
- 630 mm - 1600 mm
- Basket depth
- 630 mm
- Filter area
- 0.62 m² - 4.02 m²
- Nominal volume
- 46 L - 820 L
- Max. Filling
- 60 kg - 1025 kg
- Max. Speed
- 900 1/min - 1500 1/min
- Centrifugal force
- 503 x g - 1271 x g
- Length
- 2340 mm - 3230 mm
- Width
- 1260 mm - 2100 mm
- Height
- 1130 mm - 1850 mm
- Weight
- 1200 kg - 5500 kg
- Cleaning method
- Automatic CIP
- Discharge method
- Lossless filter cake discharge
- Working mechanism
- Top discharge centrifuge
- Batch vs. continuous operation
- Batch
- CIP principles
- Automatic CIP cleaning
- Solids discharge
- Gentle,without particle destruction
- Product adaptation
- Flexible for difficult to filter products
- Lossless discharge
- Filter cake discharge
- Machinery accessibility
- Easy accessibility of all parts in contact with the product
- Design simplicity
- Simple centrifuge design
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Basket diameter
- 630 mm - 1600 mm
- Basket depth
- 400 mm - 800 mm
- Filter area
- 0.624 m² - 4.028 m²
- Nominal volume
- 48 liters - 1025 liters
- Max filling
- 60 kg - 1025 kg
- Max speed
- 840 rpm - 1900 rpm
- Centrifugal force
- 503 x g - 1271 x g
- Machine length
- 2340 mm - 3230 mm
- Machine width
- 1260 mm - 2100 mm
- Machine height
- 1130 mm - 1850 mm
- Weight
- 1200 kg - 5500 kg
- Discharge method
- Top discharge
- Design
- Simple centrifuge design
- Discharge method
- Gentle solids discharge without particle destruction
- Automatic cleaning system
- Automatic CIP cleaning
- Accessibility
- Easy accessibility of all machinery parts in contact with the product
- Adaptation to product
- Flexible adaptation for difficult to filter products
