Filter system for beverage stabilization and clarification

Ensure your beverages are crystal clear and stable with a versatile filtration system that prevents oxygen pickup, extends filter life, and supports continuous operation with minimal maintenance.

Filters and Stabilizes Beverages and Liquid Foods

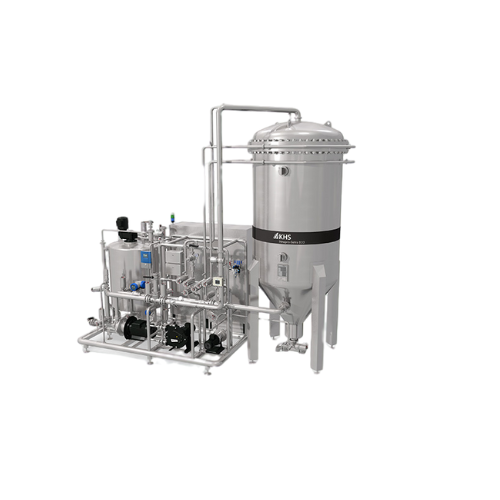

The Innopro Getra ECO from KHS is a flexible precoat candle filter system designed for efficient beverage and liquid food processing. It specializes in filtering and stabilizing a wide range of products, from beer and juices to detergents. Utilizing a static filter system, it ensures homogeneous precoating and is equipped with endoscopic monitoring for effective operation without oxygen pickup. The system processes up to 1,000 hectoliters per hour, offering both continuous and fully automated operation with customizable recipe management and batch tracking. The full automation capabilities along with quality measurement options enhance filtration precision and product consistency. Its design emphasizes ease of maintenance with a jet spray cleaning system, reducing water and energy consumption. Compliance with industry standards makes it a reliable choice for various production needs.

Benefits

  • Enhances product clarity and stability with precise filtering and stabilization.
  • Increases operational efficiency by processing up to 1,000 hectoliters per hour.
  • Minimizes maintenance costs through a static system with no moving parts.
  • Maintains product quality with oxygen-free filtration.
  • Reduces water usage via an efficient jet spray cleaning system.

General


Applications
Beverages,Liquid food,Wine,Milk,Iced tea,Spirits,Still water,Homecare products,Juice,Soft drinks,Beer,Sparkling wine
End products
Lemonade,Green tea,Liquid detergent,Pilsner,Fabric softener,Artesian water,Lager beer,Apple juice,Orange juice,Almond milk,Soy milk,Prosecco,Merlot wine,Cola,Black tea with lemon,Fruit punch,Seltzer water,Vodka
Steps before
Syrup room preparation,Sugar dissolving,Ingredient mixing
Steps after
Clarifying filtration,Stabilization with PVPP,Batch backtracking,Quality measurement
Input ingredients
diatomaceous earth,alternative filter aids,regenerative filter aids,beverages
Output ingredients
stabilized beverages,clarified beverages
Market info
KHS is known for manufacturing innovative filling and packaging systems for the beverage, food, and non-food industries, renowned for their engineering expertise, high-quality standards, and sustainable solutions in ensuring efficient production processes.

Technical Specifications


Filtration capacity
Up to 1,000 hectoliters per hour
Filter system type
Precoat candle filter
Automation
Full automation with recipe management
Monitoring
Endoscopic monitoring
Oxygen pickup
Minimized through full vessel bleeding
Filter aids compatibility
Diatomaceous earth,PVPP
Candle diameter optimization
Maximized vessel volume utilization
Static filter system
No moving parts

Operating Characteristics


Working mechanism
Precoat candle filter
Air incorporation control
Oxygen pickup avoidance
Batch vs. continuous operation
Batch
Automation level
Full automation with recipe management
CIP/SIP
CIP enabled
Endoscopic monitoring
Available
Static filter system
No moving parts
Filter service life
Optimized by candle diameter
Cleaning method
Jet spray system for reservoir

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Candle diameter
Optimized
Filter vessel volume utilization
Maximized
Filter capacity
Up to 1,000 hectoliters/hour
Feed method
Precoat candle filter
Discharge method
Static system with bayonet lock

Custom Options


Filter aid flexibility
Diatomaceous earth,PVPP,alternative/regenerative aids
Automation level
Full automation with recipe management and batch backtracking
Quality measurement options
Product haze,oxygen,and color measurement
Filter capacity
Up to 1,000 hectoliters per hour
Monitoring type
Endoscopic monitoring
Sealing system type
Patented bayonet lock sealing system
