Industrial filter centrifuges for high solids content processing
Optimize processing of high-solid slurries with efficient filtering and drying to ensure purity and performance while reducing manual handling and operational bottlenecks.

Filters, Washes, and Separates High Solids Content

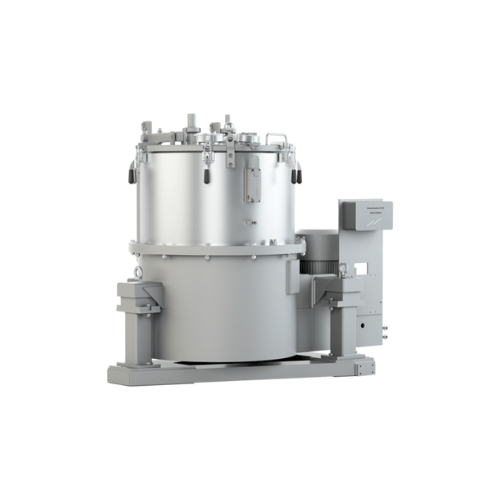

CEPA’s filter centrifuge series, including the TZ 3, TZ 4, TZ 5, and GZ 1000 C models, are designed to tackle high solids content in diverse industries such as biotechnology, pharmaceuticals, and metalworking. These centrifuges use a robust gravitational force to efficiently filter, wash, separate, and dry materials, addressing production challenges with precision.
The large-volume design allows for significant handling of solid loads, with nominal capacities ranging from 10 to 200 liters, accommodating different operational needs with ease. Enhanced by manual solids discharge and an optional filter bag for increased surface area, these units offer notable flexibility and efficiency.
Safety in hazardous environments is ensured with their explosion-proof design, making them suitable for volatile settings. Constructed from durable materials, these centrifuges can be tailored with specific inserts to meet unique customer requirements, ensuring compatibility with various chemical compositions.
Automation features provide seamless integration into existing production lines, while their batch operation supports both small and large-scale processes. Committed to ISO compliance, these machines meet rigorous industry standards, ensuring reliability and quality in every cycle.
Benefits
- Enhances productivity with high-speed filtration, reducing process times substantially.
- Boosts safety in volatile settings with explosion-proof construction.
- Minimizes manual handling through efficient solids discharge, improving workflow.
- Customizable design supports specific operational needs, ensuring process flexibility.
- Aligns with ISO standards, guaranteeing industry-standard compliance and quality assurance.
- Applications
- Chemistry,Biotechnology,Metal powders,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Minerals,Metalworking,Pharmaceuticals
- End products
- Mineral salts,Protein powders,Vaccines,Insulin,Active pharmaceutical ingredients (apis),Chemical catalysts,Fine metallic powders,Engineered metal alloys,Dietary supplements
- Steps before
- Mixing,Homogenization,Dissolution,Formulation
- Steps after
- Drying,Manual discharge,Inspection,Quality control
- Input ingredients
- suspensions,high solids content,solids
- Output ingredients
- filtered solids,separated materials,spun dry parts
- Market info
- Drum diameter
- 300–1000 mm
- Speed
- 1200–2450 min-1
- RCF (G-value)
- 800–1000 G
- Nominal capacity
- 10–200 L
- Filling amount
- 20–300 kg
- Explosion-proof design
- Yes
- Working mechanism
- Filtering,washing,separating,drying,rinsing
- Manual solids discharge
- Yes
- Batch operation
- Yes
- Explosion-proof design
- Available
- Abrasion resistance
- High
- Biological compatibility
- Suitable for biotech and pharma
- Cleanability
- Easy manual cleaning
- Corrosive resistance (e.g. acids)
- Explosion-proof design
- Density/particle size
- Varied particle sizes
- Filter bag compatible
- Yes
- Manual solids discharge
- Yes
- Spinning dry capability
- Yes
- Machine footprint
- Varies by model
- Drum diameter
- 300–1000 mm
- Filling amount
- 20–300 kg
- Nominal capacity
- 10–200 L
- Discharge method
- Manual
- Filter bag insert
- Optional
- Filter bag insertion
- Available
- Explosion-proof design
- Available
- Tailor-made inserts
- Developed per customer needs
- Discharge method
- Manual
