Automated filter cleaning system for food production lines

Eliminate frequent production interruptions by utilizing an automated system that cleans filters while your line is running, enhancing productivity and reducing waste.

Reduces Downtime and Enhances Line Efficiency

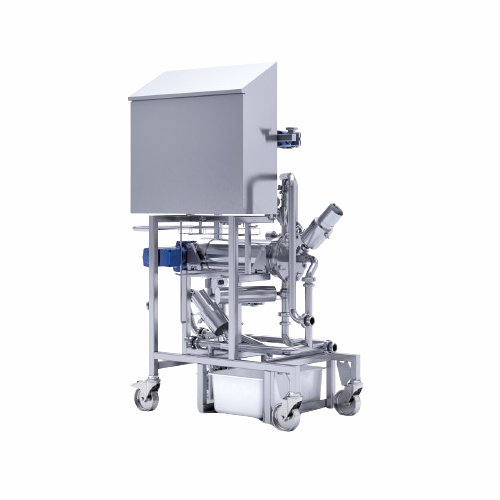

The FreeFilter from Natec Network is an automated filter cleaner designed to revolutionize efficiency in food processing. It utilizes a self-cleaning scraper mechanism that consistently removes foreign particles, significantly reducing the need for frequent filter changes. Operating continuously for 48 to 120 hours, it suits applications ranging from processed cheese to vegan food production. Capable of processing up to 3,000 kg/h, the FreeFilter integrates seamlessly with existing production lines, offering low operating costs and a fast return on investment. Constructed from AISI 316L stainless steel, it provides excellent corrosion resistance, and with its CIP compatibility, maintenance is straightforward and efficient. The system’s versatility is enhanced by interchangeable filter inlets and detailed engineering support, ensuring that it meets diverse needs within the dairy and food processing industries.

Benefits

  • Minimizes production downtime with continuous 48 to 120-hour operation.
  • Enhances productivity by reducing labor needs for filter changes.
  • Lowers waste and environmental impact by eliminating disposable filter socks.
  • Provides quick return on investment through reduced rework and operating costs.
  • Compatible with CIP systems for efficient and contamination-free cleaning.

General


Applications
Meat products,Soups,Sauces,Plant based,Mozzarella,Pasta filata,Specialty food,Pet food,Fruits,Processed cheese,Cream cheese,Dressings,Vegetables,Vegan,Baby food,Spreadable cheese
End products
Creamy salad dressings,Alfredo sauce,Cheddar cheese slices,Tomato soup,Mozzarella sticks,Frozen mixed vegetables,Bread spreads,Canned peaches,Baby purees,Sausage links,Vegan burger patties,Gourmet cheese spreads,Almond cheese,Kibble dog food,Spreadable cream cheese tubs,String cheese
Steps before
Grinding,Blending,Feeding,Cooking,Pasteurising,Forming,Portioning
Steps after
Separating,Packing,Rework Integration
Input ingredients
processed cheese,cream cheese,foreign particles,microplastic,spreadable cheese,sauces and dressings (SOS),IWS (individual wrapping system)
Output ingredients
clean filters,reduced foreign particles,reduced microplastic,rework materials,spreadable cheese,sauces and dressings (SOS),IWS (individual wrapping system)
Market info
Hochland Natec is known for manufacturing innovative engineered-to-order equipment and solutions for the dairy and food processing industry, specializing in cheese production and processing technologies, with a strong reputation for quality and innovation.

Technical Specifications


Automation
PLC-controlled
Capacity
Up to 3,000 kg/h continuous process
Operating Temperature
78 to 95°C (172 to 203°F)
Compressed Air Usage
6 bar
Max. Pressure
15 bar
Filter Inlet Size
200 or 400μ for spreadable cheese and IWS
600 or 800μ for SOS
50μ for rework
Cleaning Method
CIP / manual
Voltage
400 V,50 Hz,3 phase,6 KVA
Drive Power
0.25 kW
Cycle Time
48 to 120 hours between filter changes
Material
AISI 316L (1.4404) stainless steel

Operating Characteristics


Filter cleaning mechanism
Automated scraper
Continuous operation time
48 to 120 hours
Batch vs. continuous operation
Inline Continuous
CIP/SIP
CIP recommended
Changeover time
3 to 5 minutes
Automation level
PLC-controlled

Material Compatibility


Corrosive resistance (e.g. acids)
High (AISI 316L Stainless Steel)
Cleanability
CIP compatible
Density/particle size
Holds back microplastic 50μ and larger

Physical Characteristics


Feed/discharge method
Automatic discharge via scraper
Control panel type
PLC

Custom Options


PLC integration
Yes
Customizable filter size
200μ/400μ/600μ/800μ/50μ
CIP integration
Recommended
