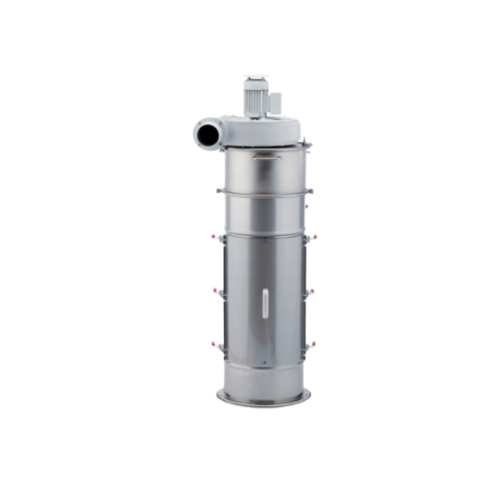

Bin vent filter with anti-static filter cartridges
Optimize your production line’s air quality by removing fine dust particles with a reliable filtration solution that seamlessly integrates into continuous conveying systems, enhancing cleanliness and safety.
Filters and De-dusts Fine Particles
The JEB Ventilation Bin Vent Filter, from Zeppelin Systems GmbH, is designed for seamless integration into your industrial production line, specifically targeting the filtration and de-dusting of fine dust particles in the plastics, rubber, food, and chemical industries. This specialized filtration system features anti-static filter cartridges housed within a robust stainless steel (1.4301) structure, ensuring long-lasting performance and resistance to corrosion.
Employing a unique air jet cleaning mechanism, it effectively de-dusts using purified, de-oiled air compressed up to 6 bar, maintaining peak operational efficiency and reducing downtime. With its modular design, the JEB filter can be customized for specific applications, such as the processing of polyethylene dust, silicone dust, and thermoplastic pellets, ensuring optimal filtration for a variety of powder-type products.
Featuring ATEX compliance for safe operation in Zone 22 areas, the JEB filter ensures regulatory adherence while offering reliability and safety in volatile environments. The filter’s easily replaceable cartridges and accessible maintenance ports support quick servicing, minimizing maintenance time and costs. Additionally, a range of options, including differential pressure measurement and automatic de-dusting, enhances the filter’s adaptability to specific operational needs.
Benefits
- Enhances air quality by effectively filtering fine dust and de-dusting conveying air.
- Ensures safety in hazardous environments with ATEX compliance for Zone 22 areas.
- Minimizes maintenance costs with quick-access filter elements and easy cartridge replacement.
- Adaptable to specific industrial needs with customizable modular design.
- Promotes operational efficiency by using compressed air de-dusting and reducing downtime.
- Applications
- Dust filtration,Food industry,Industrial applications,Fine dust,Conveying air,Rubber and tire industry,Plastics industry
- End products
- Breadcrumb particles,Polyethylene dust,Plastic resins,Pvc granules,Ground rubber,Rice flour,Silicone dust,Food flavoring particulates,Talcum powder,Thermoplastic pellets
- Steps before
- Conveying,Loading,Processing,Mixing,Blending
- Steps after
- Packaging,Storage,Further Processing,De-dusting,Pressure Regulation
- Input ingredients
- conveying air,fine dust particles
- Output ingredients
- filtered air,purified air,de-oiled air
- Market info
- Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.
- Operating pressure
- 0 bar to +0.1 bar (g)
- Temperature range
- -20 to +60°C
- Filter cartridge material
- Anti-static polyester fleece with PTFE membrane or aluminum coating
- Dust class
- M (DIN EN 60335-2-69)
- De-dusting system
- Purified,de-oiled air compressed up to 6 bar
- Controller type
- Integrated 24 V DC magnetic pilot valves
- Design compliance
- ATEX 2014/34/EU for Zone 22
- Container connection
- Flange design
- Working mechanism
- Jet pulse cleaning with air jet pipes
- Operating pressure range
- 0 bar to +0.1 bar (g)
- Temperature range
- -20 to +60°C
- Automation level
- Integrated controller with 24 V DC magnetic pilot valves
- De-dusting method
- Automatic de-dusting with purified,de-oiled air
- Anti-static properties
- Yes (anti-static polyester fleece)
- Corrosive resistance
- Stainless steel (1.4301)
- Temperature range
- -20 to +60°C
- ATEX compliance for dust
- Zone 22 (2014/34/EU)
- Dust class compliance
- Class M (DIN EN 60335-2-69)
- Density/particle size compatibility
- Fine dust particles
- ATEX certification
- Zone 22
- Dust class
- M (DIN EN 60335-2-69)
- Material of construction
- Stainless steel (1.4301)
- Material
- Stainless steel (1.4301)
- Discharge method
- Bottom discharge
- Compact footprint
- Modular system
- Filter housing shape
- Cylindrical
- Maintenance port location
- Untreated gas side
- Container connector design
- Flange design
- Removable filter head
- Yes
- Control panel type
- Controller with integrated 24 V DC magnetic pilot valves
- Compressed air integration
- De-dusting with purified,de-oiled air compressed up to 6 bar
- ATEX Compliance
- Design compliant with ATEX 2014/34/EU for use in Zone 22 areas
- Filter cartridge type
- Anti-static polyester fleece with PTFE membrane or aluminum coating
- Material of construction
- Stainless steel 1.4301
- Temperature range
- -20 to +60°C
- Operating pressure customization
- Operating pressure between 0 bar and +0.1 bar (g)
- Fan integration
- Option for fan on filter head
- Weatherproof design
- Option for weatherproof hood
- De-dusting automation
- Automatic de-dusting available
- Flange design
- Container connector in flange design
- Air jet pipe material
- Blasted ceramic
- Pressure measurement
- Optional differential pressure measurement
