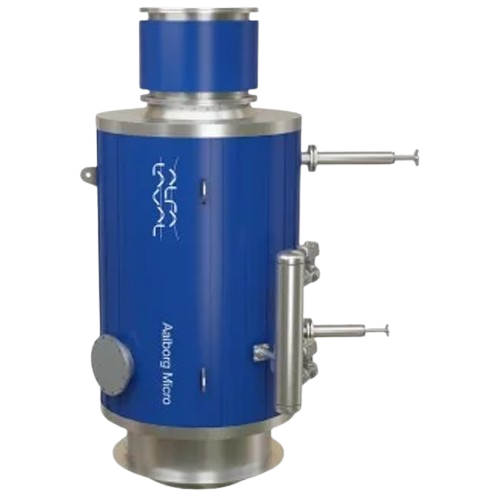

Compact marine boiler economizer for auxiliary engines
Efficiently reclaim waste heat from auxiliary engine exhaust to boost steam production, reduce fuel consumption, and meet stringent environmental standards, making it a critical component for enhancing marine vessel energy efficiency.
Recovers Waste Heat for Marine Steam Production
The Aalborg Micro from Alfa Laval is a compact marine economizer engineered for efficient waste heat recovery in maritime applications. Integrated after auxiliary engines, it utilizes a forced convection mechanism to absorb exhaust heat and convert it into steam, optimizing marine steam systems while minimizing emissions. Suitable for marine power generation and ship propulsion, it addresses energy reclamation and exhaust gas cooling challenges. With a capacity of up to 5 MW and adaptable installation, it offers significant fuel savings and environmental benefits. Its lightweight design facilitates easy retrofitting on vessels, and the internal damper system allows dynamic pressure management. The Aalborg Micro significantly lowers CO2 emissions, making it an eco-friendly solution for shipping companies, ferry operators, and maritime transport businesses seeking to enhance energy efficiency and sustainability.
Benefits
- Reduces fuel consumption by up to 25% with efficient waste heat recovery.
- Lowers CO2 emissions by approximately 900 tonnes annually, aiding environmental compliance.
- Enhances onboard steam availability, supporting marine propulsion and heating systems.
- Easy retrofit capability with compact and lightweight design for seamless integration.
- Minimizes wear on oil-fired boilers, decreasing maintenance frequency and associated costs.
- Applications
- Waste heat recovery,Marine steam systems,Marine power generation,Ship propulsion,Maritime energy efficiency
- End products
- Marine steam,Vessel propulsion steam support,Shipboard steam heating systems,Onboard steam supply,Auxiliary engine steam output
- Steps before
- Engine Exhaust Production
- Steps after
- Steam Production,Heat Recovery,Emission Reduction
- Input ingredients
- exhaust gas,water at saturation temperature
- Output ingredients
- hot water,steam,steam/water mixture
- Market info
- Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.
- Capacity
- 500 kW up to 5 MW
- Weight (incl. insulation)
- 900–6600 kg
- Diameter (incl. insulation)
- 1070–1990 mm
- Height (incl. insulation)
- 1650–4280 mm
- Connections
- Flanged
- Insulation thickness
- 100–200 mm
- Media inlet/outlet header
- DN100
- Exhaust inlet/outlet header
- DN450 to DN1000
- Maximum inlet temperature
- 500°C
- Minimum outlet temperature
- 130°C
- Pressure loss
- ,lt
- 4500 Pa
- Maximum pressure
- 8 bar(g) (higher on request)
- Working mechanism
- Heat recovery via convection
- Steam generation
- Hot water or steam production from exhaust gas
- Integration level
- Plug-and-play design
- Automation level
- Dynamic management of pressure drop
- Retrofit capability
- Easy retrofit for existing engines
- Batch vs. continuous operation
- Continuous heat recovery process
- Heat resistance
- Up to 500°C
- Corrosive resistance
- Suitable for marine environments
- Pressure resistance
- Up to 8 bar(g)
- Lightweight design
- 900–6600 kg
- Weight (incl. insulation)
- 900–6600 kg
- Diameter (incl. insulation)
- 1070–1990 mm
- Height (incl. insulation)
- 1650–4280 mm
- Compact footprint
- Extremely compact
- Connections
- Flanged
- Insulation thickness
- 100–200 mm
- Media inlet/outlet header sizing
- DN100
- Exhaust inlet/outlet header sizing
- DN450 to DN1000
- Compact footprint
- Extremely compact,plug-and-play design
- Installation flexibility
- Easy retrofit
- Integration possibilities
- Dynamic management of pressure drop
