Diatomaceous earth pressure filter for fruit juices and soft drinks
Achieve exceptional clarity and taste in your beverages with an advanced filtration solution, ensuring high drainage and efficient gas injection, all while maintaining the integrity of delicate flavors.
Filters and Clarifies Beverages Efficiently

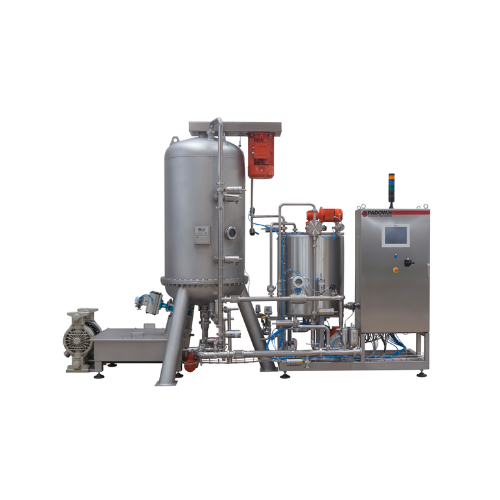

The D.E. Pressure PED Tested Filter, engineered by TMCI Padovan, excels in filtering and clarifying beverages like fruit juices, nectars, and syrups. Its unique flat, crushproof filtering discs, derived from Padovan’s original design, ensure high drainage flow during filtration and cleaning phases. The operational principle involves a continuous process enhanced by CO2 and compressed gas injections, optimizing filtration efficiency. Constructed from AISI 304 stainless steel, with AISI 316L filtration cloth, it prevents contamination via innovative projection patterns, eliminating the need for a drainage grid. Suitable for large-scale beverage production, its models range from 5 to 80 square meters, allowing customization based on capacity needs. This equipment complies with European Directive PED, ensuring high safety and performance standards in high-speed continuous operations. The integrated CIP system facilitates quick, effective cleaning, minimizing downtime.
Benefits
- Enhances product clarity with efficient filtration, improving beverage quality.
- Operates continuously with high speed, maximizing production efficiency.
- Offers customizable capacity options, accommodating varying production demands.
- Maintains product purity by eliminating potential contamination from drainage grids.
- Simplifies maintenance with an integrated CIP system, reducing downtime.
- Applications
- Infusions,Syrups,Nectars,Soft drinks,Fruit juices
- End products
- Orange juice,Lemon-lime soda,Apple nectar,Maple syrup,Herbal tea infusions
- Steps before
- Juice Extraction,Maceration,Blending,Mixing,Carbonation
- Steps after
- Bottle Filling,Capping,Labeling,Packaging,Sterilization
- Input ingredients
- fruit juices,nectars,soft drinks,syrups,infusions,beer,CO2,compressed gases
- Output ingredients
- filtered fruit juices,filtered nectars,filtered soft drinks,filtered syrups,filtered infusions,filtered beer
- Market info
- BLENDTECH (Omnia Technologies) is known for manufacturing advanced engineered-to-order blending and processing equipment. Their expertise in customized solutions and reliability has earned them a strong reputation in the industrial equipment market.
- Filtration surface area
- 5–80 m²
- Stainless Steel Type
- AISI 304
- Filtration mesh size
- 65 micron
- Material drainage grid
- None
- Directive Compliance
- European Directive PED
- Working Mechanism
- Pressure filtration with CO2
- Integrated Steps
- Filtration,pre-panel formation,washing
- Automation Level
- Manual / Automated
- CO2 Incorporation
- Yes
- CIP Principles
- Complete and accurate cleaning
- Batch vs. Continuous Operation
- Batch / Inline Continuous
- Corrosive resistance (e.g. acids)
- AISI 316L stainless steel
- Abrasion resistance
- Sheet in AISI 304 stainless steel
- Cleanability
- High drainage flow
- PED Compliance
- Yes
- CE Marking
- Yes
- 3A Sanitary Standards
- Potential
- FDA Materials
- Potential
- EHEDG Certification
- Potential
- Filter Surface Area
- 5 to 80 square meters
- Material
- AISI 304 and AISI 316L stainless steel
- Filtration Disc Type
- Flat and crushproof
- Filtration disc design
- Flat and crushproof
