Atex-certified flanged polygonal dust collectors
Ensure dust control and compliance in explosive environments with our compact dust collectors, designed to efficiently filter and manage airborne particles, enhancing process safety and air quality.
Filters and Collects Dust in Hazardous Environments

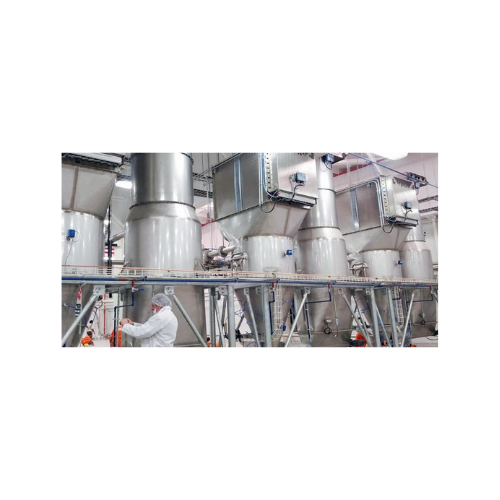

The WAMAIR ATEX from WAMGROUP is a versatile flanged polygonal dust collector certified for use in potentially explosive environments. It features a compact, stainless-steel design with horizontally mounted filter elements, using a compressed air pulse-jet cleaning system to maintain high-efficiency dust filtration. Applications span across industries such as building materials, pharmaceuticals, and food processing, handling diverse end-products like concrete additives, paracetamol tablets, and fish meal. Capable of filtering air volumes from 500 to 9,000 m³/h, the unit integrates seamlessly into your production line, whether for venting or suction applications. Energy-efficient operation is achieved with low air consumption and adjustable electronic controls. The robust 304 stainless-steel construction ensures longevity and resistance to corrosion, with options for 316 casings available. The WAMAIR ATEX meets ATEX Zone 21 and 22 compliance, offering reliable safety in explosive dust environments. Maintenance is simplified with quick access to filter elements and a user-friendly design, making it ideal for continuous operation with minimal downtime.
Benefits
- Enhances workplace safety by preventing dust-related explosions in hazardous areas.
- Increases operational efficiency with quick and straightforward maintenance access.
- Minimizes energy costs through low air consumption and optimized filter cleaning.
- Ensures flexibility with interchangeable components for various industrial applications.
- Extends equipment lifespan with corrosion-resistant stainless-steel construction.
- Applications
- Lime,Beverage production,Chemical ad-mixtures,Pesticides,Bakery plants,Minerals,Cement,Convenience foods,Detergents,Iron and steel mills,Flour milling,Spices,Varnishes,Rice milling,Glass processing,Rubber,Coffee processing,Animal feed,Building materials,Pet food,Fertilizer,Cocoa processing,Plastics,Resins,Paints,Pharmaceuticals,Bakeries,Fish food,Salt processing,Gypsum
- End products
- Bread,Wheat flour,Poultry feed,Rubber tires,Beer,Curry powder,Jasmine rice,Paracetamol tablets,Polyethylene pellets,Cocoa powder,Epoxy resin,Glyphosate,Kibble,Portland cement,Croissants,Concrete additives,Fish meal,Gypsum board,Bricks,Liquid detergent,Varnish coating,Acrylic paint,Ground coffee,Quicklime,Instant noodles,Steel beams,Flat glass,Silica sand,Sea salt,Nitrogen fertilizer
- Steps before
- Bulk Solids Conveying,Crushing,Quarry,Screening,Micronizing,Mining
- Steps after
- Dust Collection,Dust Filtration,Pneumatic Conveying,Packing
- Input ingredients
- dusty air,air with suspended dust particles
- Output ingredients
- filtered clean air,collected dust
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Filter surface
- 9 ~ 70 m² (96 ~ 755 sq ft)
- Air volume
- 500 ~ 9,000 m³/h (294 ~ 5,300 cfm)
- Filter elements
- Pockets,POLYPLEAT
- Compressed air pulse-jet cleaning
- 4 ~ 6 bar
- Dust temperature range
- -20 ~ 80 °C (-4 ~ 176 °F)
- Pressure (PRED)
- 0.25 barg
- Casing material
- 304 / 316 stainless steel
- Airflow control
- 500 ~ 9,000 m³/h
- Cleaning method
- Compressed air pulse-jet
- Filter element type
- Pocket-type / POLYPLEAT
- Automation level
- Multifunctional electronic control panel
- Dust collection method
- Integrated hopper or production process return
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Varied
- Machine footprint
- Compact design
- Casing shape
- Polygonal stainless-steel casing
- Filter element orientation
- Horizontally mounted
- Door access
- Hinged access door
- Material
- 304 stainless steel
- Filter surface area
- 9 ~ 70 m² (96 ~ 755 sq ft)
- Control panel type
- Multifunctional,multi-voltage electronic control panel
- Fan or connecting flange
- Mounted on top or in front
- Insertable versions
- Available
- Casing material
- 304 / 316 stainless steel
- Inspection hatch
- Removable rear panel or with inspection hatch
- Door hinges
- Left or right-side,made of mild steel or stainless steel
- Explosion protection
- ATEX explosion panel or appropriate pre-arrangement
- Electronic control panel
- Advanced with a variety of controls and differential pressure meter (MDPE)
- Weather protection
- Cover on clean air outlet
