Vacuum dryer for powders and granules
Achieve precise moisture control for sensitive materials with a versatile vacuum drying solution, ideal for handling heat-sensitive, solvent-containing, or sticky products while facilitating efficient mixing and energy efficiency.
Dries and Mixes Heat-Sensitive Powders Efficiently

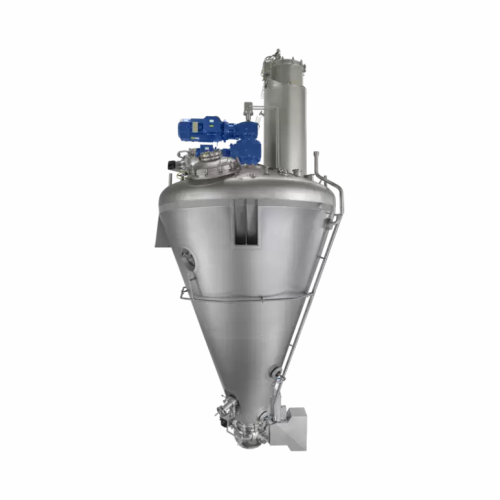

The Nauta Conical Screw Dryer from Hosokawa Micron is a versatile vacuum dryer designed to handle heat-sensitive materials across various industries, including pharmaceuticals, chemicals, and food production. Utilizing a high-efficiency convective drying process, this equipment gently moves products from the vessel’s bottom to the surface, ensuring uniform drying. It’s capable of handling powders, granules, pastes, and viscous slurries, making it ideal for applications like crystallization, sterilization, and de-aeration.
Batch volumes range from 5 to 22,000 liters, with custom configurations available to meet specific requirements. The Nauta dryer features an efficient heated jacket system that can be powered by steam, hot oil, or water, ensuring optimal heat transfer while maintaining low-temperature operation for sensitive materials. Integration into existing production lines is seamless, with PLC automation and remote monitoring capability for enhanced operational control.
Built with optional material choices such as stainless steel or Hastelloy, the Nauta Dryer ensures compatibility with corrosive substances. It complies with international standards, including FDA and cGMP, aiding compliance in regulated industries. Automated cleaning solutions with CIP/SIP skids facilitate easy maintenance, ensuring contamination-free processes. Hosokawa Micron also offers engineering support for tailor-made designs, making customization in processing capacities and ancillaries straightforward for diverse production needs.
Benefits
- Optimizes energy use, lowering operating costs with efficient heat exchange and vacuum technology.
- Enables versatile processing across diverse industries with multi-purpose capabilities.
- Ensures compliance with stringent regulatory standards like FDA and cGMP.
- Facilitates seamless integration and operation through automated PLC systems.
- Supports customizable solutions, enhancing flexibility for specialized applications.
- Applications
- Detergent powders,Cosmetics,Toner,Herbs,Nuclear applications,Minerals,Pigments,Chemicals,Food,Polymers,Energy,Additive manufacturing,Spices,Marine algae,Cocoa,Animal feed,Crop protection,Metals,Proteins (animal-based and plant-based),Active ingredients (api),Pharmaceuticals,Battery materials,Beverage,Environment,Lactose
- End products
- Battery electrodes,Nuclear fuel pellets,Toner cartridges,Corn flakes,Cosmetic powders,Cocoa powder,Polymer additives,Antibacterial coatings,Whey protein concentrate,Pigment concentrates,Instant coffee,Capsules,Protein powders,Dry soup mixes,Granola,Pharmaceutical apis,Green tea extracts,Fertilizer granules,Muesli base flakes,Metal powders,Baby formula,Soy protein isolates,Medicinal tablets,Algae supplements,Lactose powder,Detergent granules
- Steps before
- Mixing,Emulsification,Grinding,Reaction/Crystallisation
- Steps after
- Sterilization,Cooling,De-aeration,Granulation,Packaging
- Input ingredients
- powders,granules,pastes,viscous slurries,heat-sensitive materials,solvent-containing products,toxic materials,explosive materials,solids,liquids
- Output ingredients
- dried powders,dried granules,dried pastes,dried viscous liquids,sterilized products,de-aerated pastes,de-aerated liquids,crystallized solids,cooled solids,cooled liquids
- Market info
- Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.
- Batch volumes
- 5 to 22,000 litres
- Evaporation rate (water)
- 15-250 kg/h
- Evaporation rate (ethanol)
- 3-600 kg/h
- Jacket surface area
- 0.1-33 m²
- Jacket surface temperature
- 50°C
- Net volume (powder filling)
- 4.3-22,000 litres
- Height
- 1420-9950 mm
- Width
- 600-4290 mm
- Automation
- PLC-controlled
- Material
- Stainless steel,Monel,Nickel,Titanium,Hastelloy
- CIP/SIP
- Automated cleaning solutions
- Working mechanism
- Rotating cantilevered mixing screw
- Integrated steps
- Vacuum drying,Reaction/Crystallisation,Heating/Cooling,Sterilization,Liquid/Solid separation,De-aeration
- CIP/SIP
- Automated cleaning solutions with CIP filter/skid
- Batch operation
- Batch with volumes from 5 to 22,000 litres
- Automation level
- Automated controls with options for thermal processing
- Energy efficiency
- Energy-saving screw dryer design
- Cleaning method
- CIP system integration
- Vacuum operation
- Convective drying under vacuum
- Density/particle size
- Customizable
- Batch Volume
- 5 to 22,000 litres
- Machine Shape
- Conical
- Machine Height
- 1420 mm to 9950 mm
- Machine Width
- 600 mm to 4290 mm
- Jacket Surface Area
- 0.13 m² to 33 m²
- Max Evaporation Water
- 15 kg/h to 250 kg/h
- Max Evaporation Ethanol
- 3 kg/h to 600 kg/h
- Discharge Method
- Convection via rotating screw
- Control panel type
- PLC / HMI
- Heating medium
- Steam / Hot oil / Water
- Screw agitator
- Interchangeable for sizes > 20,000 litres
- Batch size flexibility
- 5 to 22,000 litres
- CIP system
- Patented CIP filter and CIP skids
- Material construction
- Stainless steel / Monel / Nickel / Titanium / Hastelloy
- Vacuum system configuration
- Condensate weight monitoring / Sampler
- Ancillaries
- Vacuum filter / Heating-cooling skid / Control systems
