Heavy-duty trough chain conveyor for high throughput applications

Optimized for high-capacity operations, this robust conveyance solution ensures efficient material flow in complex production environments, minimizing downtime and maximizing throughput.

Conveys and Distributes Bulk Materials Efficiently

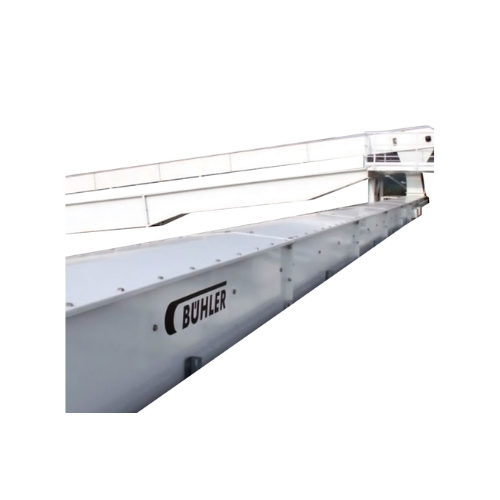

The Trough Chain Conveyor AHKG from Bühler Group is an engineered solution designed for high-capacity material handling across a wide range of industries. Built for continuous operation, it effectively utilizes drop-forged and hardened chain links to convey bulk materials such as grains, animal feed, and biomass. Capable of transporting up to 1200 tons per hour over distances of up to 150 meters, this equipment is perfect for handling and distributing materials in both processing plants and bulk storage facilities.

Featuring a modular design with bolted segments, the AHKG allows for quick and hassle-free replacement of internal parts, ensuring minimal downtime. Safety devices, including a material level sensor and a zero-motion monitor, provide reliable operation by detecting potential chain ruptures early. Its construction includes optional lateral casing linings and chain guide bars made from manganese steel, enhancing the conveyor’s durability and lifespan.

Seamlessly integrating into your production line, the AHKG supports effective upstream and downstream processes while also providing options for customization to suit specific operational requirements. It’s a robust choice for facilities prioritizing efficiency and reliability in their material handling operations.

Benefits

  • Enhances productivity with high throughput capabilities, handling up to 1200 tons per hour.
  • Minimizes downtime with a modular design allowing quick and easy part replacements.
  • Extends service life through robust construction featuring drop-forged, hardened chain links.
  • Improves operational reliability with integrated safety sensors for early rupture detection.
  • Offers flexible integration options for various industry applications, from grain to chemical processing.

General


Applications
Snacks,Grain,Cosmetics,Chocolate,Dairy,Chemicals,Asian noodles,Printing inks,Pulses,Paddy,Spices,Aqua feed,Biomass,Breakfast cereals,Cocoa,Animal feed,Batteries,Pasta,Pet food,Nuts,Rice,Paints,Dried fruits,Electronic materials,Baked goods,Oilseeds,Wheat,Confectionery,Coffee,Coatings,Vegetables
End products
Livestock feed pellets,Dog kibble,Wood pellets,Cheese,Potato chips,Candy bars,White rice,Sun-dried tomatoes,Industrial solvents,Sunflower seeds,Jasmine rice,Gloss paints,Cocoa powder,Lithium-ion batteries,Barley grains,Fish meal,Instant coffee,Cornflakes,Lentil flour,Macaroni,Facial creams,Dried apricots,Almonds,Conductive inks,All-purpose flour,Bread loaves,Offset printing inks,Rice noodles,Chocolate bars,Ground black pepper
Steps before
Material intake,Receiving,Sorting,Weighing,Dehulling
Steps after
Packing,Distribution,Processing,Storage
Input ingredients
bulk materials,grains,animal feed,oilseeds,pulses,spices,rice,paddy,wheat
Output ingredients
processed grains,distributed materials,discharged materials
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Conveying capacity
Up to 1200 tons per hour
Conveying distance
Up to 150 meters
Chain type
Drop-forged and hardened chain links
Material level detection
Material level sensor
Chain rupture detection
Zero-motion monitor
Material compatibility
Manganese steel for casing linings and guide bars
Design type
Modular design with bolted segments
Conveying method
Horizontal conveying
Application type
Bulk storage,handling systems,and processing plants
Replacement method
Quick and easy replacement of internal parts

Operating Characteristics


Working mechanism
Horizontal conveying
Automation level
PLC-controlled
Batch vs. continuous operation
Continuous
Changeover time
Quick and easy
Cleaning method
Modular design for easy maintenance
Energy efficiency
Optimized system uptime

Material Compatibility


Abrasion resistance
High
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Product type
Bulk material handling

Physical Characteristics


Conveyor Length
Up to 150 meters
Conveyor Capacity
Up to 1200 tons per hour
Chain Material
Drop-forged and hardened
Casing Material
Manganese steel
Design
Modular with bolted segments

Custom Options


Control panel type
Manual / PLC / Touchscreen
Modular design
Yes
Discharge method
Horizontal
Chain guide bars
Manganese steel
Casing linings
Manganese steel
Safety devices
Material level sensor,Zero-motion monitor
