Weight filler for small batches in explosive areas

Efficiently handle and weigh small batch products with precision, even in explosive environments, thanks to adaptive control and modular customization options.

Accurately Weighs and Fills Varied Product Types

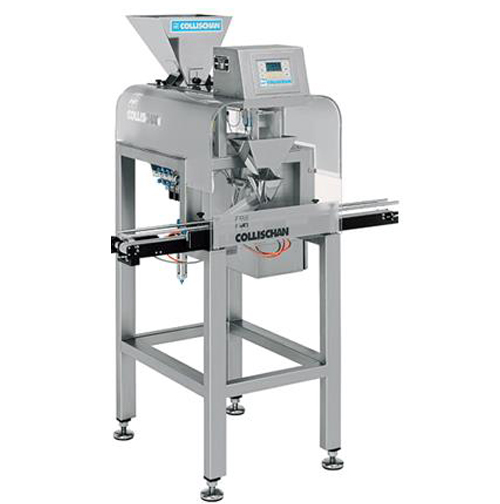

The Weight Filler S706 from Collischan is a robust solution for precise batch weighing and filling across diverse industries, including food, pharmaceutical, chemical, and automotive. Notable for its modular design, the S706 allows customization to meet specific product and space requirements, achieving up to 30 fillings per minute per filling head. Its self-optimizing control system adapts the vibration feeder speed, ensuring accurate rough and fine dosing in a single operation. This equipment processes a range of products, from herbal tea blends and protein powders to multivitamin capsules and airbag sensors. Constructed exclusively from stainless steel, it offers quick, tool-free cleaning, ideal for small batch processing. An explosion-proof variant is available for hazardous environments, with designs suitable for zones 0, 1, or 2 and temperature ranges up to T6. The integrated statistics counter and external synchronization capabilities enhance its role in automated packaging lines, making it a reliable choice for high-speed, continuous operations.

Benefits

  • Enhances productivity with up to 30 fills per minute per head.
  • Reduces changeover time with tool-free, rapid cleaning process.
  • Ensures accurate dosing with self-optimizing vibration control.
  • Provides safety in volatile environments with explosion-proof options.
  • Customizable configurations meet diverse industry and product requirements.

General


Applications
Chemistry,Automotive,Coffee,Food industry,Powder and granules,Explosive material,Spices,Sweets and drops,Pharma industry,Tablets,Tea,Capsules
End products
Protein powders,Chemical powders,Multivitamin capsules,Detonators,Airbag sensors,Gummy candies,Effervescent tablets,Sugar granules,Herbal tea blends,Ground coffee
Steps before
Blending,Mixing,Pre-weighing,Formulation,Ingredient Preparation
Steps after
Packaging,Quality Control,Labeling,Storage,Distribution
Input ingredients
tablets,capsules,small metal parts,powder,granules,sweets,drops,explosive material
Output ingredients
batches of 10 to 300g
Market info

Technical Specifications


Batch size
10–300 g
Filling speed
Up to 30 fillings per minute per filling head
Automation
Self-optimizing control with adaptive algorithm
Material
Stainless steel
Cleaning method
Tool-free,fast cleaning
Ex-Proof Design
Available for zones 0,1,2,20,21,22
Temperature range
Up to T6
Synchronization
External and internal synchronization
Statistics feature
Standard and detailed statistics with batch number

Operating Characteristics


Working mechanism
Vibration feeder with digital adaptive control algorithm
Batch vs. continuous operation
Batch
Changeover time
Quick tool-free disassembly
Cleaning method
Manual tool-free cleaning
Automation level
Digital adaptive control

Material Compatibility


Cleanability
Tool-free removal
Corrosive resistance (e.g. acids)
Stainless steel construction
Explosive-proof capability
Ex-design compliant

Product type Characteristics


Filling purpose
Small metal parts,tablets,capsules


Explosive-proof compliance
Ex standards Zone 0,1,2 / Zone 20,21,22

Physical Characteristics


Machine footprint
Compact,customizable
Feed method
Vibrating chute
Discharge method
Modular setup with customizable discharge options
Construction material
Stainless steel
Control panel type
Digital adaptive control
Explosion-proof design
Available
Batch size capability
10 to 300g

Custom Options


Vibrating Chute Design
Custom design available
Construction Zones
0,1 or 2 and 20,21 or 22
Temperature Range
Up to T6
Statistics Implementation
Batch number,product description,etc.
Synchronization Options
External/foot switch/internal
Material Construction
Stainless steel
Cleaning Process
Tool-free quick removal
