Automatic rotary premade pouch filler for various industries

Streamline your pouch packaging process with precision filling and reliable sealing, essential for handling diverse product types and ensuring optimal quality control throughout your production line.

Fills and Seals Premade Pouches Efficiently

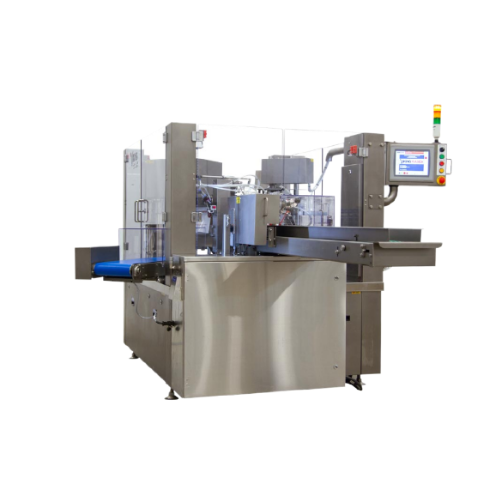

The Viking-10S-235 from Viking Masek is a premier rotary premade pouch filling and sealing machine that stands out for its efficiency and versatility in packaging. This ten-station machine is engineered to accommodate a variety of fillers and options, making it suitable for diverse industries including food, beverage, health, medical, and non-food products. Its PLC control with a touch screen interface and a servo-driven Allen Bradley platform ensures precise operation and integration into existing production lines. Capable of handling up to 40 cycles per minute, it efficiently fills and seals pouches containing solids, liquids, and powders.

The Viking-10S-235 uses a two-step sealing process and a patented cooling station to guarantee a clean, reliable seal. Additional features include pouch presence detection and bag deflation, enhancing both quality control and operational efficiency. With automated deoxidizer feeding and multiple proprietary options like a robotic pick & place bag infeed system, it optimizes packaging of products ranging from cornflakes to COVID-19 test kits. The machine is constructed with a durable welded steel frame and is available with a washdown structure, ensuring compliance with IP65 or IP66 standards for demanding environments.

With Ethernet connectivity for remote accessibility, dust collection systems, and extensive safety features, the Viking-10S-235 offers robust automation and integration capabilities. Optional customization is supported, with features like extended bag magazine and steam or gas flush, providing tailored solutions to meet specific production needs.

Benefits

  • Enhances efficiency with high-speed operation, handling up to 40 cycles per minute.
  • Increases product quality with precise sealing and cooling processes, minimizing waste.
  • Reduces labor costs through automation and easy-to-use PLC controls.
  • Ensures versatile packaging solutions for diverse products, from liquids to powders.
  • Maintains operational reliability with robust construction and minimal maintenance requirements.

General


Applications
Contract packaging,Treats,Medical devices,Snacks,Cheese,Organic foods,Medical testing kits,Fish,Liquids,Food,Fresh fruit,Non-food products,Beans,Supplies,Pills,Cannabis,Capsules,Powders,Candy,Pasta,Pet food,Individual quick frozen (iqf),Nuts,Natural,Rice,Health,Cereal,Beverage,Meat,Coffee,Vegetables,Poultry,Medical
End products
Pre-packed salads,Canned beans,Disposable syringes,Cheddar cheese slices,Baby formula powder,Vacuum-sealed iqf broccoli,Vitamin tablets,Chocolate-coated nuts,Jasmine rice,Oatmeal cookies,Hard candies,Organic quinoa,Marinated chicken breasts,Freeze-dried pet treats,Roasted coffee beans,Penne pasta,Beef jerky for dogs,Fruit smoothies,Cornflakes,Cbd capsules,Soy milk,Covid-19 rapid test kits,Granola,Powdered protein supplements,Ground coffee,Bottled juices,Surgical gloves,Muesli base flakes,Vacuum-sealed salmon fillets,Trail mix,Vacuum-sealed hemp flower,Carrot sticks,Chocolate bars,Fruit gummies
Steps before
Material Preparation,Product Weighing,Product Sorting
Steps after
Quality Inspection,Packing,Sealing,Labeling,Cooling
Input ingredients
Vegetables,MRE Food,Liquid products,Powders,Cereal,Nuts,Snacks,Fresh Fruit,Meat,Poultry,Fish,Pet Food,Treats,Candy,Pasta,Beans,Rice,Cheese,Cannabis,Pills,Capsules,Medical Devices,Medical Testing Kits
Output ingredients
Premade Pouch,Stand-up Pouch,Pillow Bag,Doypack,Stick Pack,Quad Seal Bag,Flat Bottom Bag,Gusseted Bag,Three Side Seal Bag,Tetrahedron Bag
Market info
Viking Masek is known for manufacturing innovative packaging machinery. They specialize in automated packaging solutions, including vertical and horizontal form-fill-seal machines, and are reputed for quality, flexibility, and custom-engineered solutions for various industries.

Technical Specifications


Automation
PLC control with touch screen operation
Maximum Speed Per Minute
50 bpm
Bag Size Range
90 mm W x 120 mm L to 235 mm W x 350 mm L
Power Supply
480 V / 3 Ph / 60 Hz / 35 A
Compressed Air Usage
Approx. 600 NL/min,5~6 kgf/cm²
Sealing Process
Two step sealing process guarantees clean sealing
Pouch Presence Detection
No filling,no sealing
Cooling Station
Cooling station for liquid products
Operating Motion
Rotary
Bag Deflation Method
Wire guide or push bars
Frame Material
Highly durable welded steel frame
Production Parameter Memory
Gripper size,machine speed,sealing temperature,and filling volume
Optional Date Coding
Emboss,hot stamp,inkjet or thermal transfer
Optional Quality Control
Checkweigher,metal detector,X-ray inspection
Number of Stations
10
Number of Lanes
1
Cooling Technique
Extended bag magazine

Operating Characteristics


Working Mechanism
Rotary Premade Pouch Filling and Sealing
Integrated Steps
Filling,Sealing,Cooling
Automation Level
PLC-Controlled
Batch vs. Continuous Operation
Rotary Batch
Pouch Presence Detection
No Filling,No Sealing
Deoxidizer Feeding Station
Automatic
Changeover Time
Memory Settings for Easy Changeover
CIP/SIP
Clean-in-Place Design
Cooling Station
For Liquid Products

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Bag presence detection
No filling,no sealing
Heavy fill support
Bag supporter for heavy fills

Physical Characteristics


Machine footprint
Not Specified
Pouch Size
Min 90 mm W x 120 mm L,Max 235 mm W x 350 mm L
Control panel type
PLC control with touch screen operation
Discharge method
Automatic Rotary Premade Pouch System
Compact footprint
Single bag operation
Frame Material
Highly durable welded steel frame

Custom Options


Control panel type
PLC control with touch screen operation
Automatic Infeed
Proprietary Viking robotic pick,place bag infeed system
Filling integration
Multi-head scales,volumetric fillers,and auger fillers
Bag presence detection
No filling,no sealing operation
Sealing Process
Two-step sealing process
Cooling Option
Cooling station for liquid products
Safety Features
Fully interlocked safety guards
Zipper Opening
Device for zipper opening
Clean-in-place
Design implemented
Ethernet Connectivity
Available
Washdown Structure
IP65 or IP66
Gas Flush Options
Steam or gas flush
Bag Rejection System
Integrated
