Ultra-fine pulverizer for aqua feed and pet food

Achieve precise granulation with high efficiency for your feed and food production. This technology integrates pulverizing, grinding, and classifying in a compact design, minimizing energy consumption while maximizing throughput. Ideal for those looking to optimize particle sizes across diverse recipes.

Pulverizes and Classifies Raw Materials Efficiently

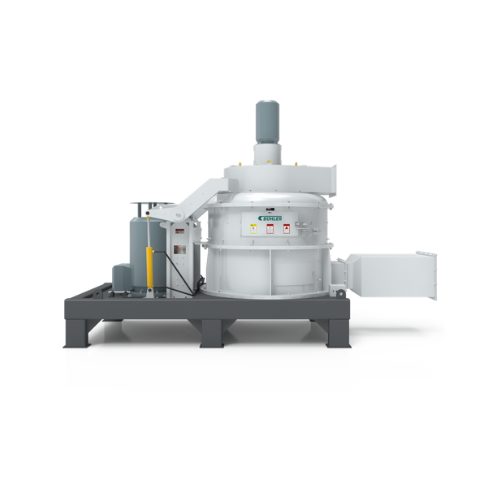

The Pulverex 3 Series from Bühler is a high-efficiency pulverizer expertly designed to meet the rigorous demands of diverse industries such as animal feed, food ingredients, and advanced materials. What sets this equipment apart is its vertical shaft design, which incorporates a V-belt driven system that seamlessly integrates feeding, pulverizing, and classifying into a single, continuous process.

Ideal for applications ranging from aqua feed production to the creation of lithium battery anodes, this machine ensures precise granulation, offering operation ranges from 60 mesh to 200 mesh through in-operation adjustments of the classifying impeller. Capable of processing up to 15 tons per hour, the Pulverex 3 Series features a compact structure, optimized for energy efficiency by utilizing a specially designed classifying impeller and deflector hood to minimize air resistance.

Equipped with quick-access side doors for fast wear part replacement and a hydraulic top cover opening system, maintenance is streamlined, ensuring minimal downtime. The machine’s construction supports customization, material selections, and configurations to suit specific operational needs, backed by Bühler’s engineering support and innovation.

Benefits

  • Enhances operational efficiency with up to 15 tons per hour processing capacity.
  • Lowers energy costs through reduced air resistance and over-pulverizing.
  • Minimizes downtime with quick-change access for wear parts.
  • Supports continuous production with adjustable granulation during operation.
  • Increases production flexibility across multiple industries, from animal feed to advanced materials.

General


Applications
Snacks,Grain,Cosmetics,Dairy,Chemicals,Biorefinery,Printing inks,Pulses,Paddy,Spices,Aqua feed,Biomass,Batteries,Cocoa,Animal feed,Alternative proteins,Pasta,Pet food,Nuts,Food ingredients,Rice,Paints,Dried fruits,Electronic materials,Oilseeds,Wheat,Confectionery,Coffee,Digital inks,Coatings,Vegetables
End products
Whole wheat flour,Wood pellets,Potato chips,Basmati rice,Almond butter,Sunflower seeds,Dye-sublimation inks,Canola oil,Spaghetti noodles,Protein bars,Jasmine rice,Uv-cured varnish,Cocoa powder,Turmeric powder,Bioethanol,Chickpea flour,Conductive pastes,Anti-corrosive paint,Lithium battery anodes,Fish meal,Soy protein isolate,Lip balm,Horse feed pellets,Cmyk printing inks,Cat kibble,Cheese powder,Acrylic polymers,Barley flakes,Chocolate bars,Dehydrated apple slices,Instant coffee granules
Steps before
Grinding,Drying,Dehulling,Milling,Conditioning
Steps after
Sorting,Packing,Palletizing,Weighing,Sifting
Input ingredients
raw material,grass carp recipe,aqua feed ingredients,pet food ingredients,young animal feed ingredients
Output ingredients
fine powder,ultra-fine ground material,processed feed
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Performance capacity
Up to 15 tons per hour
Energy consumption
Low energy consumption per ton
Particle size adjustment
60 mesh to 200 mesh
Pulverizing type
Vertical shaft pulverizer
Drive system
V-belt driven
Hydraulic system
Hydraulic opening system for cover
Space-performance ratio
Compact structure on small footprint
Classifying function
Classifying impeller and deflector hood

Operating Characteristics


Working mechanism
Pulverizing with vertical shaft and classifying functions
Integrated steps
Feeding,pulverizing,and classifying
Automation level
Manual / PLC / SCADA
Changeover time
Quick changeover with side doors and hydraulic system
Energy efficiency
Low energy consumption per ton
Granulation adjustment
60 mesh to 200 mesh
Compact footprint
Small and precise design
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact structure on a small footprint
Belt drive
V-belt
Feed method
Integrated feeding function
Discharge method
Integrated classifying function promoting discharge of finished products
Vertical shaft design
Yes
No screen structure
Yes
Side doors for easy access
Yes
Hydraulic opening system
Available
Classifying impeller adjustment
Frequency changeable
Granulation adjustment
60 mesh to 200 mesh

Custom Options


Control panel type
HMI / Touch screen / PLC
Integration Possibilities
SCADA / ERP / MES
Granulation adjustment
60 mesh to 200 mesh
Hydraulic opening system
Available
Classifying impeller frequency
Continuously adjustable during operation
