Rotating stencil depositor for confectionery products

Streamline your confectionery operations by precisely depositing intricate shapes and patterns with high efficiency and minimal downtime, enhancing quality and variety in every batch.

Precisely Deposits and Shapes Chocolate and Bakery Products

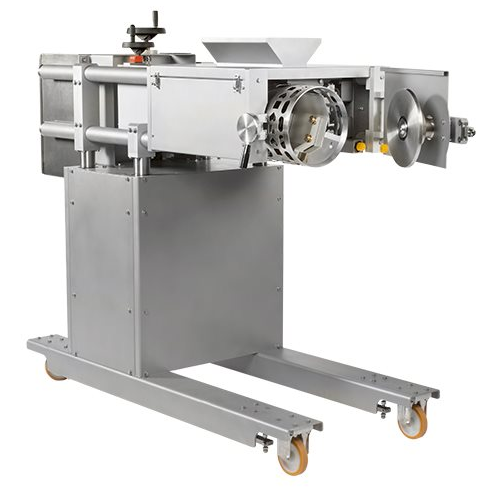

The Bertha™ rotating stencil depositor from Aasted is a versatile and precise solution for chocolate, bakery, and confectionery manufacturers. It operates using a rotating stencil drum and internal scraper to accurately deposit and shape a wide range of masses, including meringue, chocolate, and butter dough, onto a conveyor belt, creating uniform product patterns. This equipment is designed for continuous and high-speed operations, making it ideal for producing meringue cookies, sponge cake layers, and filled chocolates, among other products.

Constructed on a height-adjustable C-frame with wheels, the Bertha™ ensures quick servicing and cleaning. With a built-in PLC and HMI system, it’s fully automated, allowing for remote monitoring and simple operation. The internal scraper automatically lifts for easy stencil changeovers, enhancing workflow efficiency. It supports integration with additional equipment like feeders, mixers, and pumps, facilitating complete production line setups. Available in hygienic stainless steel, it promises durability and easy maintenance, making the Bertha™ depositor an essential asset for innovative and high-quality production.

Benefits

  • Ensures product uniformity and quality with precise and reliable depositing.
  • Enhances production efficiency with fast changeovers and minimal downtime.
  • Facilitates seamless production line integration with automated controls and remote monitoring.
  • Simplifies maintenance and cleaning with easy access design and durable materials.
  • Increases production flexibility by accommodating a variety of masses and inclusions.

General


Applications
Bakery,Confectionery,Sweets,Pastries,Chocolate
End products
Chocolate truffles,Sponge cake layers,Filled chocolates,Marzipan treats,Butter cookies,Macaroons,Pralines,Sponge rolls,Chocolate bars,Nougat candy,Meringue cookies,Éclairs
Steps before
Feeding,Mixing,Tempering
Steps after
Cooling,Packing,Enrobing
Input ingredients
meringue masses,sponge dough,butter dough,chocolate
Output ingredients
precise and uniform product,product pattern
Market info
Aasted is known for its expertise in manufacturing equipment for the chocolate, bakery, and confectionery industries, offering solutions like tempering, molding, and baking machinery with a strong reputation for innovation and quality.

Technical Specifications


Automation
PLC and HMI-controlled
Capacity
Up to 2½ tons/hr
Construction Material
Stainless Steel
Flexibility
C-frame with wheels
Safety Features
Remote access
Drum Type
Rotating Stencil Drum
Product Types
Meringue,sponge dough,butter dough,chocolate
Precision
High Precision Scraper System
Mobility
Height adjustable frame on wheels
System Integration
Fully integrated control system

Operating Characteristics


Working Mechanism
Rotating Stencil Drum
Automation Level
PLC/HMI Controlled
Batch vs. Continuous Operation
Batch
Changeover Time
Fast Changeover due to Easy Drum Removal
Cleaning Method
Manual - Easy Access for Cleaning
Energy Efficiency
High Precision for Reduced Waste

Material Compatibility


Meringue masses
Compatible
Sponge dough
Compatible
Butter dough
Compatible
Chocolate
Compatible
Hygienic stainless steel
Resistant to corrosion
Cleanability
Easy to clean
Viscosity tolerance
Handles various viscosities

Physical Characteristics


Machine footprint
Height adjustable C-frame
Build material
Stainless steel
Mobility
Wheels for easy movement
Machine frame design
Cantilevered
Drum design
Rotating stencil
Internal cutting system
Internal scraper
Control system
Integrated PLC and HMI

Custom Options


Control panel type
HMI Operator Screen
Integration possibilities
PLC with Remote Access
Frame design
Height Adjustable Cantilevered C-frame
Mobility
Wheels for Fast Servicing and Cleaning
