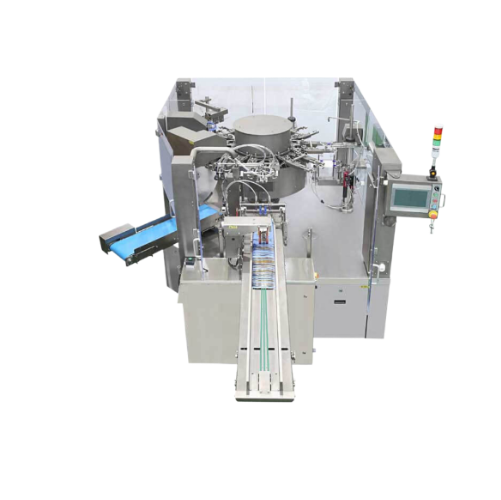

Rotary pouch packaging system for food and powder products

Streamline your packaging process with a rotary system that ensures precise filling, sealing, and quality control for diverse food and powder products, enhancing operational efficiency while maintaining product integrity.

Fills and Seals Premade Pouches

The Viking-8SG-200A from Viking Masek is an automatic rotary pouch packaging machine designed to elevate your production line by efficiently filling and sealing a variety of premade pouches. This machine excels in handling diverse product types, including powders and solids, making it ideal for food, beverage, health, and non-food industries. Utilizing an 8-station, single-lane rotary system, it ensures precise bag handling and effective sealing with a servo-driven Allen Bradley control platform.

Capable of accommodating bag sizes from 100 mm to 200 mm in width and up to 575 mm in length, the Viking-8SG-200A offers flexibility for packaging various end-products, such as instant coffee, protein powder, and marinated chicken breasts. With a maximum speed of 35 bags per minute, it seamlessly integrates into high-speed production environments.

Automation is simplified with a PLC control and touch screen interface, supporting process parameter memory for consistent operations. Energy-efficient design and Ethernet connectivity add operational value, while features like pouch presence detection and a two-step sealing process guarantee clean, reliable seals. Optional enhancements include proprietary robotic pick-and-place systems and comprehensive quality control measures such as checkweighers and metal detectors, ensuring you maintain the highest standards of product integrity.

Benefits

  • Increases operational efficiency with an 8-station rotary design that speeds up packaging tasks.
  • Enhances product integrity with precise filling and sealing, minimizing waste and rework.
  • Reduces labor costs with intuitive PLC control and touch screen interface for streamlined operation.
  • Facilitates rapid product changeovers with memory for production parameters, accommodating diverse product lines.
  • Ensures high-quality product output with integrated quality control options, including checkweighers and metal detectors.

General


Applications
Contract packaging,Treats,Medical devices,Snacks,Cheese,Organic foods,Medical testing kits,Fish,Liquids,Food,Fresh fruit,Non-food products,Beans,Supplies,Pills,Cannabis,Capsules,Powders,Candy,Pasta,Pet food,Individual quick frozen (iqf),Nuts,Natural,Rice,Health,Cereal,Beverage,Meat,Coffee,Vegetables,Poultry,Medical
End products
Dog kibble,Baby formula powder,Bottled water,Wheat flour,Potato chips,Protein powder,Basmati rice,Kidney beans,Granola bars,Organic oatmeal,Artisanal cheese,Orange juice,Cold brew coffee,Vitamin c pills,Marinated chicken breasts,Instant coffee,Packaged fresh apples,Cornflakes,Iv bags,Celery sticks,Macaroni,Surgical masks,Smoked salmon,Cat treats,Cbd oil,Fish oil capsules,Chocolate bars,Mixed nuts,Vaping cartridges,Rapid covid-19 test kits
Steps before
Purification,Mixing,Blending,Grinding,Filling
Steps after
Sealing,Cooling,Quality Control,Date Coding,Packing
Input ingredients
powders,food products,gumballs,rice,precooked meat,coffee,individual quick frozen (IQF) items,cereal,nuts,snacks,fresh fruit,vegetables,liquids,meat,poultry,fish,pet food,treats,candy,pasta,beans,rice,natural foods,organic foods,cheese,cannabis,medical devices,supplies,pills,capsules,medical testing kits
Output ingredients
premade pouches,quad bags
Market info
Viking Masek is known for manufacturing innovative packaging machinery. They specialize in automated packaging solutions, including vertical and horizontal form-fill-seal machines, and are reputed for quality, flexibility, and custom-engineered solutions for various industries.

Technical Specifications


Max Speed
35 bpm
Bag Size
Min 100 mm W x 150 mm L,Max 200 mm W x 575 mm L
Number of Stations
8 stations
Automation
PLC control with touch screen operation
Control Platform
Servo-driven Allen Bradley control platform
Frame
Highly durable welded steel frame
Production Parameter Memory
Includes gripper size,machine speed,sealing temperature,and filling volume
Pouch Presence Detection
No filling,no sealing
Sealing Process
Two step sealing process
Cooling Station
Yes
Power Supply
480 V / 3 Ph / 60 Hz / 35 A
Compressed Air
Approx. 600 NL/min,5~6 kgf/cm²

Operating Characteristics


Working Mechanism
Rotary pouch filling and sealing
Integrated Steps
Pouch filling,sealing,cooling
Automation Level
PLC-controlled,Servo-driven
Bag Presence Detection
No filling,no sealing
Changeover Time
Quick parameter memory
Batch vs. Continuous Operation
Continuous operation
Cleaning Method
Manual / CIP options
Cycle Time
35 bpm max speed
Energy Efficiency
Optimized servo system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Number of Stations
8 stations
Machine Footprint
Single Lane Rotary
Premade Pouch Bag Size
Min 100 mm W x 150 mm L,Max 200 mm W x 575 mm L
Frame Material
Highly durable welded steel frame
Control Panel Type
PLC control with touch screen operation
Gripper Size Range
90-235mm
Cooling Station
Included

Custom Options


Control panel type
PLC control with touch screen operation
Integration possibilities
Fully interlocked safety guards,Ethernet connectivity
Production parameter memory
Gripper size,machine speed,sealing temperature,filling volume
Sealing process
Two step sealing process
Robot integration
Proprietary Viking robotic pick,place bag infeed system
Bag infeed system
Proprietary Viking robotic
Bag magazine
Extended bag magazine
Dust control
Dust suction nozzles and dust collector
