Microdosing system for granules and powder
Achieve precise dosing with minimal variance across all fills, ensuring consistent product quality for sensitive powders and granules in high-speed production lines.

Ensures Precise Dosing and Filling

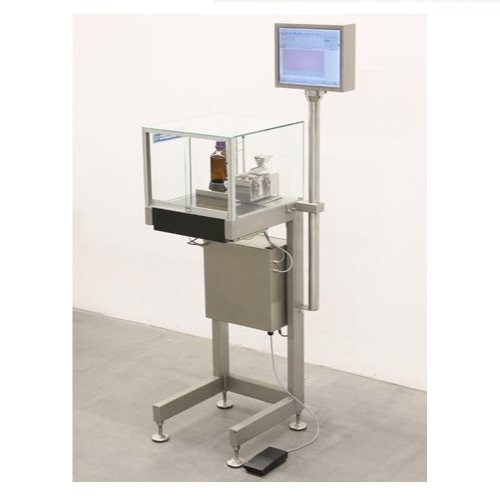

The Microdosing System SW 701 from Collischan GmbH is designed for precise dosing of powders and granules, offering a unique combination of digital adaptive control algorithms and modular setup. This equipment is ideal for food, pharmaceutical, chemical, and automotive industries, accurately processing products like cinnamon powder and gunpowder. It operates with a resolution of 10 µg, maintaining a dosing tolerance as low as 0.1 mg, essential for applications requiring exact measurements. The system achieves up to 30 fillings per minute, optimizing production with its automated synchronization feature.
Engineered from stainless steel, the SW 701 is both durable and hygienic. The design allows easy tool-free disassembly for fast, sterile cleaning, supporting continuous operation with minimal downtime. Its explosive-proof options extend its utility to critical environments, aligning with safety standards for zones 0, 1 or 2, and 20, 21, or 22, with temperature compliance up to T6. Integrated checkweighing and real-time data transmission ensure comprehensive process control, while the self-optimizing control adapts to changing conditions, maximizing throughput and consistency. Configurations are available to match specific operational needs, supported by Collischan’s engineering expertise for tailored solutions.
Benefits
- Delivers precise dosing with low variance, ensuring consistent product quality.
- Increases efficiency with quick interchangeable parts and easy cleanability, reducing downtime.
- Enhances safety with explosive-proof design options for hazardous environments.
- Streamlines production with real-time synchronization to existing line processes.
- Provides versatility for varied industrial applications without needing substantial adjustments.
- Applications
- Explosive materials,Coffee,Powder and granules,Spices,Sweets and drops,Tablets,Tea,Capsules
- End products
- Cinnamon powder,Herbal capsules,Black pepper granules,Gunpowder,Gummy candies,Green tea leaves,Protein powder,Effervescent tablets,Ground coffee
- Steps before
- Grinding,Drying
- Steps after
- Packing
- Input ingredients
- powder,granules,sensitive granules,explosive material,tablets,capsules
- Output ingredients
- precisely dosed powder,precisely dosed granules,precisely dosed explosive material,precisely dosed tablets,precisely dosed capsules
- Market info
- Accuracy
- up to 0.1 mg
- Resolution
- 10 µg
- Weight Range
- Large
- Weighing Performance
- 30 fillings per minute
- Dosing Tolerance
- up to 0.1 mg
- Construction Material
- Stainless Steel
- Cleaning Method
- Tool-less removal and sterile cleaning
- Explosion-proof Zones
- 0,1,2 or 20,21,22
- Temperature Range
- up to T6
- Control System
- Digital adaptive control algorithm
- Synchronization Options
- External/Foot switch/Internal
- Working mechanism
- Vibrated chute with digital adaptive control
- Integrated steps
- Rough and fine dosing
- Automation level
- Digital adaptive control algorithm
- Batch vs. continuous operation
- Batch
- Cleaning method
- Easy to clean,tool-free disassembly
- Synchronization support
- External/internal with packaging lines
- Changeover time
- Minimal due to modular design
- Cleanability
- Easy to clean,removable parts
- Biological compatibility
- Suited for pharma,food industry
- Density/particle size
- Handles powder,granules,tablets
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Abrasion resistance
- Stainless steel construction
- Machine footprint
- Compact,modular design
- Material of construction
- Stainless steel
- Discharge method
- Vibrated chute
- Cleaning ease
- Tool-free part removal
- Format part change
- None required for weight range
- Modular setup
- Optimized to customer requirements
- Control system
- Digital adaptive control algorithm
- Synchronization options
- External,foot switch,internal
- Explosive-proof design
- Various zones and temperature ranges
- Material construction
- Stainless steel
