Industrial v-type solids blender for homogeneous mixture

Achieve precise blending of diverse powders and solids using the industrial v-type solids blender, designed to ensure uniformity and efficiency in batch processes, enhancing the formulation quality of your end-products.

Mixes and Homogenizes Powders and Granules

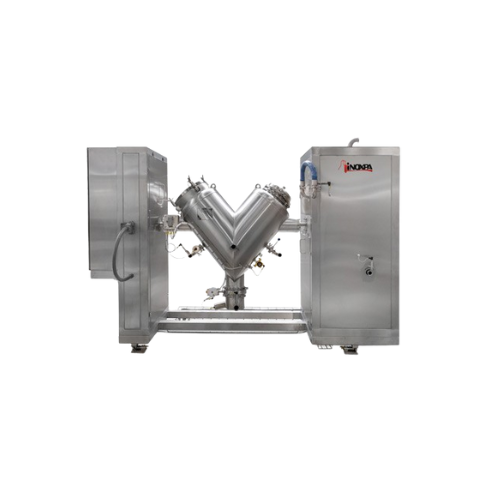

The MV V-Type Solids Blender from INOXPA is designed for efficient powder and granule mixing, critical for industries such as pharmaceuticals, cosmetics, and plastics. It features an 80° V-shaped design that promotes homogeneous blending by continuously moving materials into a shared central section. Available in capacities from 50 to 4200 liters, it provides a practical solution for batch processing with mixing times ranging from 3 to 15 minutes. The blender operates at slow speeds ideal for materials requiring temperature control, and it can be equipped with a liquid spray system for additional processing flexibility. Constructed from AISI 316 for product-contact parts, it ensures durability and corrosion resistance. Compliance with EC safety standards is built-in, and options for automated loading and unloading enhance integration with existing systems. Customizable features and engineering support are available to tailor the unit to specific line requirements, ensuring streamlined production and maintenance.

Benefits

  • Enhances product consistency with uniform blending of powders and granules.
  • Minimizes energy usage through low-speed operation suitable for heat-sensitive materials.
  • Facilitates easy cleaning and maintenance with CIP compatibility and polished surfaces.
  • Offers operational flexibility with automated loading and discharge systems.
  • Ensures compliance with EC safety standards, promoting a secure work environment.

General


Applications
Cosmetics,Starches,Enzymes,Seeds,Chocolate,Bakery products,Pigments,Powdered plastics,Chemicals,Detergents,Fiberglass,Granulated plastics,Fish meal,Cocoa,Gelatine,Milk powder,Plastics,Baby food,Fertilizers,Pharmaceuticals,Beverages,Dessert powders,Colorants,Custard powders,Coffee,Flour,Dairy products
End products
Instant dessert mix,Cocoa mix,Cake mix,Infant formula powder,Chocolate chips,Sunflower seeds,Polystyrene granules,Catalase enzyme,Fabric dye,Polyethylene pellets,Fruit juice powder,Face powder,Pill granules,Fiberglass insulation,Vanilla custard powder,Corn starch,Skim milk powder,Shampoo powder,Collagen supplements,Abs plastic granules,Yogurt powder,Food coloring,All-purpose flour,Plant fertilizer,Fish feed pellets,Instant coffee granules
Steps before
Grinding,Drying,Emulsification,Sifting
Steps after
Sterilization,Packing,Coating,Granulating
Input ingredients
pharmaceuticals,flour for confectionery,fish meal,refined or white flour,whole wheat flour,flour for coating,dextrins,enzymes,coffee,cocoa,milk powder,chocolate,gelatine,crème caramel and dessert powder,baby food,custard powder,starches,seeds,pigments,colorants,cosmetics,powdered plastics,granulated plastics,fiberglass
Output ingredients
homogeneous solid-solid mixture
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Capacity
50 to 4200 litres
Mixing performance
50%
Mixing speed
Low speed
Mixing time
3–15 minutes
Cyclinder angle
80°
Material
AISI 316 (EN 14404)
Material Structure
AISI 304 (EN 14301)
Internal finish
Bright polish
External finish
Bright polish
Automation
Manual / Automated
Loading/discharge method
Hermetically closing butterfly valve
Safety features
Guard rail with electrical safety

Operating Characteristics


Working Mechanism
Two-cylinder "V" shape
Mixing Efficiency
50% per turn
Safety Features
Electrical safety guard rail
Automation Level
Manual / Automatic options
Operation Mode
Batch
Loading/Discharge Method
Hermetically sealing butterfly valve
Integration Options
Liquid spray system
Temperature Control
Low speed for cold products
Cycle Time
3–15 minutes
Capacity Range
50–4200 litres
Cleanability
CIP system compatible

Material Compatibility


Abrasion resistance
AISI 316 / AISI 304
Biological compatibility
Suitable for food and pharmaceutical industries
Cleanability
Bright polished finish,CIP capable
Corrosive resistance (e.g. acids)
AISI 316 stainless steel
Density/particle size
50–4200 liters capacity,suitable for various particle sizes

Physical Characteristics


Blender shape
V-type
Angle of V
80°
Feed/Discharge Method
Hermetically closing butterfly valve
Internal finish
Bright polish
External finish
Bright polish
Material
AISI 316 for product contact,AISI 304 for structure
Capacity
50 to 4200 litres
Useful capacity
50%

Custom Options


Liquid spray system
Optional incorporation
Loading system
Automated vacuum unit
Discharge method
Pneumatically actuated retractable hermetic bellows
Stop positions
Automatic loading,discharging,sampling
Integration with CIP
Optional CIP system
Control panel
Automated control panel
Spray nozzle integration
Connected via rotary system
Filter system
Automated self-cleaning
