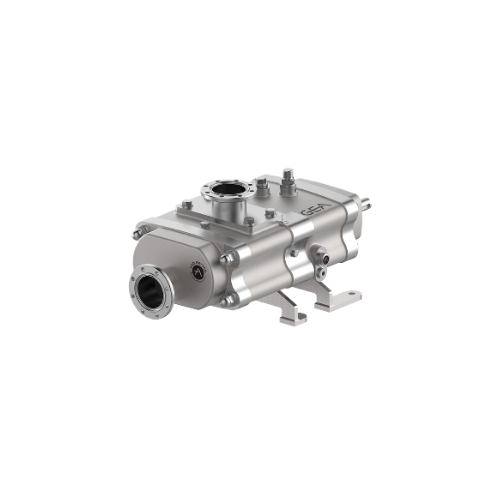

Twin screw pump for viscous media

Streamline your production with a twin screw pump that effortlessly handles viscous media, integrating pumping and cleaning operations in one efficient unit. Ideal for producers needing reliable performance under high-speed, continuous conditions, this solution enhances product quality while optimizing process efficiency.

Transfers and Processes Viscous Media Efficiently

The GEA Hilge NOVATWIN and NOVATWIN+ pumps are part of the GEA Varipump line, expertly engineered to handle the demands of transferring and processing viscous media in industries such as dairy, food, beverage, pharma, and personal care. These twin screw hygienic pumps stand out by enabling both production and cleaning in one unit, utilizing variable speeds up to 3000 rpm for optimal adaptability and efficiency. With self-priming capabilities reaching up to 8 meters and a maximum system pressure of 30 bar, they support high-pressure operations in challenging environments.

The NOVATWIN series handles diverse applications, efficiently transferring liquids, slurries, and blends used in producing cream cheese, butter, chocolate, soups, cosmetics, vaccines, and more. The pumps’ CIP/SIP certified design ensures seamless integration into hygienic processes and ease of cleaning, while its variable screw and port configurations offer flexibility for custom operational conditions.

Engineered for energy efficiency, the NOVATWIN+ models deliver up to 23% material savings over previous designs, with hardened housing options for abrasive media. Equipped with inboard single or double mechanical seals, they maintain optimal lubrication and cooling. Available with sterile connections conforming to various DIN standards, they meet rigorous industry compliance requirements. These pumps can be mounted with motors on stainless steel frames or movable trolleys, accommodating a range of processing line configurations and providing robust engineering support for tailored solutions.

Benefits

  • Enables seamless switch between production and cleaning, reducing equipment downtime.
  • Energy-efficient design saves up to 13% power, lowering operational costs.
  • Versatile to handle a wide range of viscous media, enhancing processing flexibility.
  • Hygienic certification ensures compliance with stringent industry standards.
  • Customizable configurations meet specific operational demands, increasing adaptability.

General


Applications
Food,Personal care,Home care,Pet food,Biopharma,Beverage,Pharma,Dairy
End products
Sauces,Fats,Sugar solution,Body care lotions,Oils,Cosmetics,Enzymes,Chocolate,Brewing yeast,Prepared salads,Smoothies,Soups,Sour cream,Cream cheese,Blood products,Ice cream,Skincare creams,Vaccines,Butter,Cell cultures,Fabric detergents,Household surface cleaners,Yoghurt,Mayonnaise,Pastes,Juice concentrate
Steps before
Emulsification,Grinding,Mixing,Blending
Steps after
Sterilization,Packing,Cooling,Bottling
Input ingredients
Dairy,Cream Cheese,Butter,Yoghurt,Sour Cream,Ice Cream,Sugar solution,Chocolate,Sauces,Soups,Mayonnaise,Pastes,Oils,Fats,Prepared Salads,Pet Food,Smoothies,Juice Concentrate,Pre-mixes,Brewing Yeast,Neutraceuticals,Blood Products,Vaccines,Enzymes,Cell cultures,Cosmetics,Body,Skincare,Fabric care,Household Cleaners
Output ingredients
Processed Dairy,Processed Cream Cheese,Processed Butter,Processed Yoghurt,Processed Sour Cream,Processed Ice Cream,Processed Sugar solution,Processed Chocolate,Processed Sauces,Processed Soups,Processed Mayonnaise,Processed Pastes,Processed Oils,Fats,Processed Prepared Salads,Processed Pet Food,Processed Smoothies,Processed Juice Concentrate,Processed Pre-mixes,Processed Brewing Yeast,Processed Neutraceuticals,Processed Blood Products,Processed Vaccines,Processed Enzymes,Processed Cell cultures,Processed Cosmetics,Processed Body,Skincare,Processed Fabric care,Processed Household Cleaners
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Speed
Up to 3000 rpm
Self-Priming Capability
Up to 8 meters
System Pressure
30 bar
Flow Rate (Product)
12-310 m³/h
Flow Rate (CIP)
20-310 m³/h
Max Differential Pressure
16-25 bar
Max Particle Size
17-74 mm
Connection Size
50-150 mm
Seal Face Materials
Silicon carbide
Pump Housing
Various hardened combinations
Reverse Flow Direction
Available

Operating Characteristics


Working Mechanism
Twin screw
Integrated Steps
Production and CIP operation
CIP Principles
CIP/SIP compliant
Batch vs. Continuous Operation
Continuous with batch capability
Self-priming Capacity
Up to 8 meters
Automation Level
Variable speed control up to 3000 rpm
Flow Reversibility
Yes,reversible flow direction
Adaptability
Flexible port positions and screw combinations

Material Compatibility


Cleanability
CIP,hygienic design criteria
Corrosive resistance (e.g. acids)
Silicon carbide,EPDM elastomers
Density/particle size
Large and delicate particles

Product type Characteristics


Agglomeration risk
Gentle product handling

Physical Characteristics


Max. flow rate (m³/h) Product
10–310
Max. flow rate (m³/h) CIP
20–310
Max. differential pressure (bar)
16–25
Max. speed (rpm) Product
1,760
Max. speed (rpm) CIP
2,000–3,000
Standard connection size (mm)
50–150
Max. particle size (mm)
17 / 25 to 55 / 74

Custom Options


Port position flexibility
Yes
Reverse flow direction
Yes
Thermal jackets
Available
