Precision weigh filler for food and pharma industries

Optimize precision in multi-component dosing with seamless integration into existing packaging lines, ensuring accuracy and efficiency in complex production setups.

Precisely Doses and Fills Powders

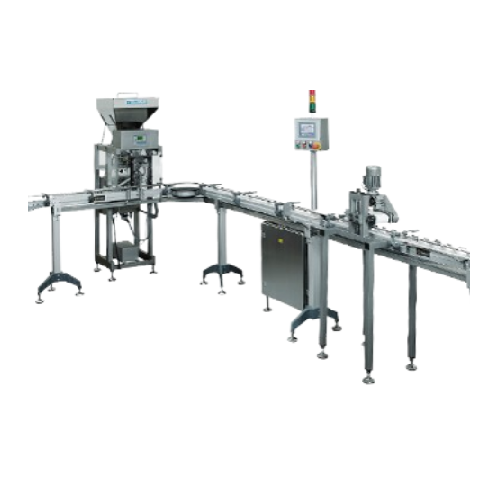

The Microdosing System SW 701 from Collischan is engineered to deliver precise powder dosing for the food and pharmaceutical industries. It features a highly accurate dosing mechanism that ensures consistent and repeatable dosages, ideal for complex formulations like vitamin tablets and baking powders. This system integrates seamlessly into existing production lines, offering PLC-controlled operation for ease of use and efficiency. Its compact design supports high-speed processing, reducing production time while maintaining accuracy. The SW 701 is constructed with stainless steel for enhanced durability and compliance with food safety standards, and its modular design allows for straightforward maintenance and cleaning. Optional customization is available to tailor the instrument to specific process requirements, supported by Collischan’s expert engineering team.

Benefits

  • Ensures precise dosing, minimizing product waste and optimizing input material usage.
  • Integrates smoothly into existing production lines, reducing installation and adaptation costs.
  • Enhances production speed, leading to increased throughput and efficiency.
  • Complies with food and pharma safety standards, ensuring product quality and regulatory adherence.
  • Requires minimal maintenance, reducing operation downtime and associated costs.

General


Applications
Chemistry,Automotive,Coffee,Food industry,Powder and granules,Explosive material,Spices,Sweets and drops,Pharma industry,Tablets,Tea,Capsules
End products
Muesli base flakes,Espresso powder,Detergent powder,Peppercorns,Cornflakes,Vitamin c tablets,Black tea leaves,Gel capsules,Airbag inflators,Gummy candies,Baking soda,Protein powder,Granola,Fireworks compounds,Chocolate drops,Green tea sachets,Ground coffee,Dried basil
Steps before
Grinding,Mixing,Blending
Steps after
Packing,Quality Check,Assembly Integration
Input ingredients
spices,tea,coffee,powder,granules,sweets,drops,tablets,capsules,explosive material
Output ingredients
weighed products,counted products,packaged products,dosed products
Market info

Technical Specifications


Automation
Automatische Verpackungssysteme
Combination Compatibility
Beutel- und Blistermaschinen
Line Integration
Montageautomaten
Capacity
WE706,S715,S720 capacity
Dosing Type
Microdosing system SW 701
Filling Scale
Precision filling scale SW 703

Operating Characteristics


Working mechanism
Automated packaging integration
Integrated steps
Filling,weighing,counting,packaging
Batch vs. continuous operation
Batch and inline configurations
Cleanability
Adaptable to clean in place (CIP) systems
Automation level
Manual / PLC integration
Changeover time
Configurable based on machine integrations

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity range
100–10000 cP
Container size
50 ml – 5 L
Container shape
Round/Square/Custom

Physical Characteristics


Discharge method
Combination with various packaging machines

Custom Options


Control panel type
Touch screen / Button interface
Integration possibilities
Beutel- und Blistermaschinen / Montageautomaten
Footprint adjustments
Adaptable to existing systems
System modularity
Integrated / Standalone units
