High containment powder transfer valve for bulk material
Ensure operator safety and prevent cross-contamination with robust containment during bulk powder transfers, while maintaining a compact profile for seamless integration into your existing setup.
Ensures Dust-Free Powder Transfer

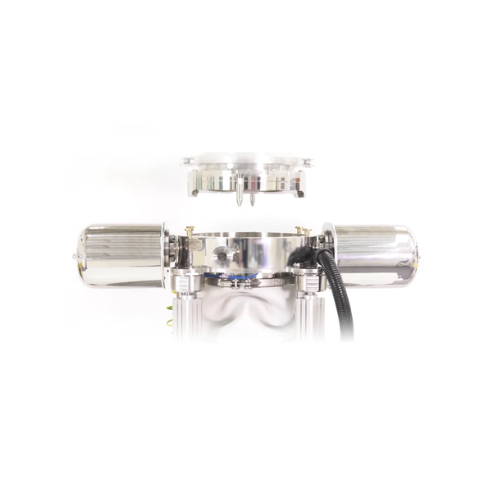

The Split Butterfly Valve DiscLock™ from ChargePoint Technology is engineered to provide high-containment powder transfer for your pharmaceutical and chemical production needs. This system utilizes a patented DiscLock™ mechanism, ensuring a robust disc-to-disc containment seal that maintains a compact footprint in your processing line. Ideal for dispensing and vessel charging of pharmaceuticals, chemical reagents, and raw materials, it effectively handles powders, granules, and semi-solids with minimized risk of cross-contamination and operator exposure.
Integrated automation allows seamless operation under high-containment conditions, with containment performance solutions capable of achieving levels down to 0.1µg/m³. The system complies with ISPE SMEPAC guidelines, offering GMP and product quality assurance. Constructed from stainless steel for enhanced durability and chemical resistance, it supports low-maintenance operations and integrates easily into existing setups, with options for CIP systems and adjustable configurations to meet specific processing requirements.
Benefits
- Enhances operator safety with dust-free material handling and high-containment seals.
- Minimizes cross-contamination risk, ensuring compliance with GMP standards.
- Reduces the need for secondary containment and additional PPE, cutting operational costs.
- Maximizes yield with efficient transfer of poorly flowing and high-value materials.
- Integrates seamlessly into existing systems with space-saving design and full automation.
- Applications
- Raw materials, Chemical formulations, Semi-solids, Powder materials, Formulated blends, Excipients, Intermediates, Pharmaceutical apis, Tablets, Pharmaceutical ingredients, Reagents, Granular products, Capsules
- End products
- Sodium chloride, Silicon dioxide, Potassium sorbate, Chemical reagents, Antibiotic formulations, Metformin, Soft gel capsules, Protein powder, Semi-solid ointments, Effervescent tablets, Ibuprofen, Blended fruit powders, Preformulated excipient blends, Multivitamin tablets, Glucose tablets, Active pharmaceutical ingredients (apis), Emulsified creams, Acetaminophen, Talcum powder, Vitamin c powder, Paracetamol, Gelatin capsules, Nutraceutical blends, Herbal supplements, Dextrose, Lactose, Granular detergents, Chemical granules
- Steps before
- Dispensing, Vessel charging, Intermediates, Wet/dry granulation, Mixing, Milling
- Steps after
- Filtration / separation, Drying, Blending / mixing, Sieving, Compression, Filling, Coating, Sampling
- Input ingredients
- non-sterile chemical, pharmaceutical API, formulation ingredients, bulk powder materials, poorly flowing products, high value products, APIs, reagents, semi-solid, intermediates, excipients, formulated blends, raw materials
- Output ingredients
- dust-free production environment, high containment powder transfers, pharma-safe containment down to 1µg/m3, pharma-safe pro containment down to 0.1µg/m3, no additional seals, vacuum or extraction not required, simple low volume extraction, dust particulate control
- Market info
- Chargepoint Technology is known for its expertise in designing and manufacturing high containment and sterile transfer solutions for pharmaceutical and biopharmaceutical industries, particularly in powder containment and aseptic transfer systems.
- Containment performance
- ChargePoint PharmaSafe® – 1µg/m3
- Containment performance
- ChargePoint PharmaSafe® pro – 0.1µg/m3
- Automation
- Fully automatic operation
- Locking system
- DiscLock™
- Sealing method
- Disc to disc containment seal
- Space utilization
- Low-profile
- Extraction
- PharmaSafe Pro – High performance extraction
- IBC loading
- Offset mechanical forces
- Valve operation
- Automatic Split Butterfly Valve
- Automation level
- Fully automatic with optional PowerDock™
- Batch vs. continuous operation
- Batch with high containment
- CIP/SIP
- Designed for CIP systems
- Cleaning method
- Manual / Automatic
- Contamination control
- High containment down to 0.1µg/m³
- Disc to disc containment seal
- Robust
- Docking sequence
- Automatic docking
- Dust control
- Eliminates dust with DiscLock™ feature
- Energy efficiency
- Requires minimal energy for operation
- Locking mechanism
- Unique DiscLock™ feature
- Space requirement
- Low-profile design
- Valves operation sequence
- Active and passive units docking
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- ISPE SMEPAC
- Validated containment performance
- Compact footprint
- Low-profile design
- Discharge method
- Split Butterfly Valve
- Control panel type
- Fully automatic operation
- Discharge method
- Automatic
- Control panel type
- Not specified
- Integration possibilities
- Existing or new process setup
- Discharge method
- Automated with optional PowerDock™
- Compact footprint
- Low-profile design
