Freeze dryer for high sugar or acid content products

Achieve precise moisture control for challenging high sugar or acid content products, ensuring optimal quality and stability for sensitive applications.

Freeze Dries High Sugar and Acidic Products

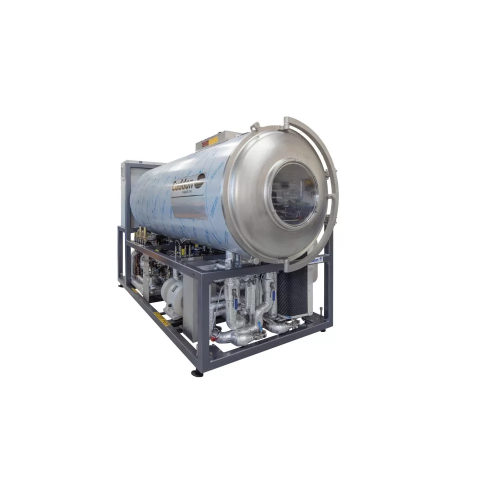

The FD100LT Low Temperature Freeze Dryer from Cuddon Freeze Dry is engineered for precise drying of high sugar and acidic products. It features an efficient sublimation process, using R507 refrigerant and a -55°C ice condenser, making it ideal for food, biotechnology, and pharmaceutical industries. With a shelf capacity of 9.1m² and capable of sublimating 100kg of ice in under 24 hours, it supports batch, pilot, and low-temperature operations. The dryer handles solids, liquids, and slurries, producing end-products like fruit preserves, yogurt powder, and probiotic supplements. Its compact design integrates easily into production lines, maintaining energy efficiency with potential heat recovery of 12 kW and typical operational power consumption of 10 kW. Constructed from food-grade anodized aluminum, it is durable and compliant with industrial standards, while offering customization and support for seamless integration into various manufacturing processes.

Benefits

  • Optimizes energy consumption with heat recovery capabilities, reducing operational costs.
  • Ensures product quality with precise temperature control for sensitive high-sugar and high-acid content products.
  • Facilitates integration into existing lines with compact size and easy installation.
  • Minimizes waste with effective sublimation, achieving high yields from wet products.
  • Complies with industrial standards using durable, food-grade materials for safety and reliability.

General


Applications
Food,High acid content products,Biotechnology,Fruit products,Pet food,Nutraceuticals,High sugar content products,Plant extracts,Herbs,Spices,Vegetables,Dairy products,Pharmaceuticals
End products
Pet food treats,Herbal teas,Spice blends,Botanical extracts,Pharmaceutical tablets,Bioactive compounds,Vitamin supplements,Probiotic supplements,Vegetable chips,Sugar-rich desserts,Yogurt powder,Fruit preserves,Tomato paste,Plant-based protein powders,Cheese powder,Fruit juices,Dietary supplements
Steps before
Purification,Preparation,Pre-freezing
Steps after
Packaging,Quality Control,Storage
Input ingredients
high sugar product,high acid product,wet product,100 kg wet product
Output ingredients
dry product,20 kg dry product
Market info
Cuddon Freeze Dry is known for manufacturing high-quality freeze-drying equipment. The company specializes in engineered-to-order solutions, offering expertise in designing and building customized systems for diverse industrial applications.

Technical Specifications


Shelf capacity
9.1m² on 9 shelves
Ice test performance
100kg ice sublimated in sub 24 hrs
Average yield of dry product per cycle
20 kg based on 100 kg wet product @ 80% moisture
Potential heat energy recovery
12 kW
Peak power requirement
35kW,50 or 60 Hz
Estimated energy consumption
2.4 kWh/kg
Typical operational power consumption (Dry)
10 kW
Ice condenser capacity
100kg
Ice condenser temperature
-55°C
Shelf temperature range
-35°C to 70°C
Shelf spacing
35mm
Number of product trays
18 per cycle (2 sets supplied)
Heating / cooling medium
Temper 55
Number of doors on product chamber
1
Dimensions
3.44m (L) x 1.40m (W) x 1.94m (H)
Weight
2,500 kg
Product tray size
1025mm x 495mm x 20mm

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
PLC
Energy efficiency
2.4 kWh/kg

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Overall footprint
3.44m (L) x 1.40m (W) x 1.94m (H)
Weight
2,500 kg
Shelf capacity
9.1m² on 9 shelves
Shelf spacing
35mm
Product tray material
Food grade anodised aluminium
Number of product trays
18 per cycle (2 sets supplied)
Product trays size
1025mm x 495mm x 20mm
Number of doors on product chamber
1

Custom Options


Control panel type
Available
Compact footprint
3.44m (L) x 1.40m (W) x 1.94m (H)
Heating / cooling medium
Temper 55
