Drop-through rotary valve for powder and granular material feeding

Achieve precise control in discharging and feeding powdery and granular materials with rotary valve technology, designed to integrate seamlessly into high-speed production lines and enhance efficiency and reliability.

Controls Discharging and Feeding of Bulk Materials

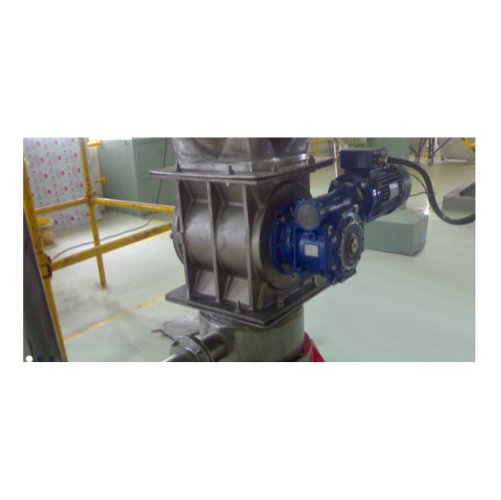

The Drop-Through Rotary Valves RV/RVR from WAMGROUP are engineered for accurate and efficient handling of powdery and granular materials across various industries. Featuring robust cast iron or stainless steel construction, these rotary valves are designed with a horizontally mounted rotor equipped with V-shaped compartments for precise material flow regulation. With feed rates ranging from 2.2 to 19.5 liters per revolution, they cater to diverse applications including concrete production, animal feed processing, and chemical manufacturing. Integrated easily into existing systems thanks to WAM standard flanges, they support working temperatures from -30 to 150°C and withstand differential pressures up to 0.2 bar. The valves are available with different drive options for tailored rotation speeds and can be customized with ATEX-certified versions for explosion-prone environments. Their ease of access simplifies maintenance, ensuring long-term reliability in continuous or high-speed operations.

Benefits

  • Enhances operational efficiency with precise control of bulk material flow.
  • Facilitates integration into existing systems using WAM standard flanges.
  • Minimizes maintenance time with easy access to internal components.
  • Adaptable to explosive environments with optional ATEX certification.
  • Supports wide temperature ranges, ensuring versatility in diverse industrial applications.

General


Applications
Lime,Pesticide,Asphalt,Tobacco,Bakery,Sludge treatment,Noodles,Cosmetics,Chemical ad-mixtures,Soap,Drymix building materials,Minerals,Chocolate,Fly-ash,Cement,Waste water,Iron and steel,Granular materials,Insecticide,Glass,Crushing,Spices,Brick,Mining,Lime dosing,Rubber,Precast concrete,Resin,Cocoa,Ceramics,Animal feed,Marble,Pasta,Sugar,Convenience food,Roof tile,Varnish,Biscuit,Fertilizer,Rice,Plastics,Quarry,Salt,Foundries,Wood,Petfood,Pharmaceuticals,Fish food,Paint,Screening,Beverage,Coffee,Flour,Detergent,Gypsum,Refractory products,Ready-mix concrete,Powdery materials,Breweries,Coking plants
End products
Spaghetti,Biscuits,Mined ore,Face creams,Lime for water treatment,Refractory bricks,Bread,Wheat flour,Npk fertilizers,Hydrated lime,Rubber sheets,Animal feed pellets,Seasoning blends,Beer,Cement blocks,Marble slabs,Polyethylene pellets,Cocoa powder,Wood varnish,Coke,Steel beams,Emulsion paints,Tablets,Soap bars,Ceramic tiles,Fly ash,Milled rice,Fish pellets,Portland cement,Crushed stone,Iron billets,Treated sludge,Pesticide granules,Epoxy resins,Dry mortar mix,Instant soup mixes,Granulated sugar,Gypsum boards,Chemical additives for construction,Clay bricks,Roofing tiles,Ground coffee,Laundry detergents,Processed timber,Instant noodles,Table salt,Silica sand,Precast concrete panels,Chocolate bars,Asphalt mixtures,Quartz sand,Pet kibble,Herbicides,Packaged tobacco,Glass bottles
Steps before
Grinding,Drying,Material Separation
Steps after
Pneumatic Conveying,Packaging,Bulk Solids Feeding
Input ingredients
powdery materials,granular materials,silos,hoppers,pneumatic conveying systems,bag filter houses,cyclones
Output ingredients
controlled discharging,feeding
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Feed rate
2.2 ~ 19.5 litres per revolution (0.08 ~ 0.7 cu ft per revolution)
Working Temperature
-30 ~ 150 °C (-22 ~ 302 °F)
Maximum Differential Pressure
0.2 bar (2.9 PSI)
Material
Tubular cast iron or stainless steel casing
Drive Unit
Different drives for different rotation speeds

Operating Characteristics


Feed rates
2.2 ~ 19.5 litres per revolution (0.08 ~ 0.7 cu ft/rev)
Working Temperature
-30 ~ 150 °C (-22 ~ 302 °F)
Automation level
Manual / PLC
Batch vs. continuous operation
Continuous
Maximum differential pressure
0.2 bar (2.9 PSI)
Cleaning method
Easy access for manual cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Robust,compact design
Discharge method
Drop-through

Custom Options


Material options
Cast iron / Stainless steel
