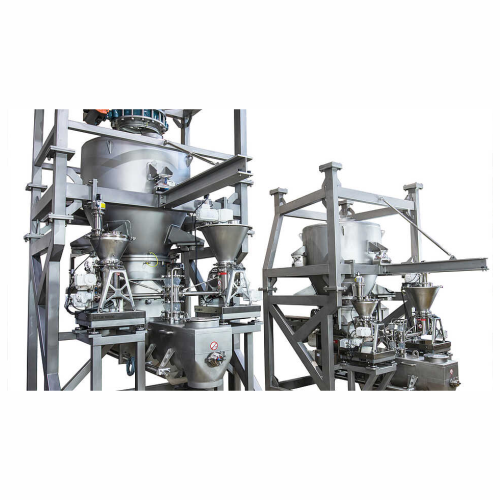

Continuous inline mixing for late product differentiation

Achieve seamless product differentiation with compact inline mixing that minimizes cleaning time by reducing equipment surfaces, ensuring rapid adaptation to frequent ingredient changes.

Mixes and Feeds Powder Streams Continuously

The Turbo Compact Mixing (TCM) module from Gericke is a state-of-the-art inline mixer designed for precise powder processing in various industries including food, beverages, pharmaceuticals, and chemicals. This equipment integrates seamlessly into your production line, offering continuous mixing of one main stream with up to three minor powder streams. The TCM is engineered for late product differentiation, solving the challenge of frequent product changes with its efficient disassembly for fast cleaning and zero cross-contamination. It supports high-capacity operations of up to 20,000 l/h, making it ideal for processing infant formula, instant coffee mixes, and other powder-based products. Equipped with Gericke’s advanced loss-in-weight feeder controllers, it ensures exact flow rate control for recipe precision. Designed for minimal height integration, it fits effortlessly into existing setups and reduces cleaning downtime by 90%, addressing allergen handling requirements. Constructed from materials that ensure durability and corrosion resistance, the TCM meets industry standards, providing a robust solution for inline mixing challenges.

Benefits

  • Increases productivity by reducing cleaning time by 90% with easy disassembly.
  • Ensures precise product differentiation with accurate flow rate control.
  • Enhances operational efficiency with continuous high-capacity mixing.
  • Fits easily into compact spaces, saving valuable plant floor space.
  • Reduces allergen contamination risk, assuring product safety and compliance.

General


Applications
Steel,Bakery,Animal and aqua feed,Water treatment,Flue gas treatment,Lime and gypsum,Minerals,Plastics and coatings,Catalysts,Battery production,Dairy,Food,Chemicals,Fine chemicals,Energy,Noodles and rice,Glass,Beverages and coffee,Crop protection and fertilizers,Biscuit and snacks,Cereals and cereal bars,Textured vegetable proteins,Salt and seasoning,Infant nutrition,Pet food,Paint and dyes,Flavours and fragrances,Pharmaceuticals,Beverages,Detergents and soaps,Chocolate and confectionary,Environmental,Heavy industry,Construction chemicals,Cement and fly ash,Flour,Superabsorbants
End products
Biofuel additives,Dog kibble,Infant formula,Hydrated lime,Potato chips,Yogurt powders,Gluten-free bread,Emission control additives,Spice blends,Steel alloys,Granola bars,Enriched rice,Emulsion paints,Fiberglass,Instant coffee mixes,Portland cement,Fish pellets,Dark chocolate,Concrete additives,Pesticide granules,Desalination chemicals,Textured soy protein,Liquid detergent,Specialty chemicals,Pastry flour,Ramen noodles,Synthetic resins,Absorbent polymers,Cheese powder,Battery electrolytes,Floral perfumes,Automotive catalysts,Vitamin capsules
Steps before
Drying,Grinding,Emulsification
Steps after
Packing,Filling,Extrusion,Compaction,Sterilization
Input ingredients
minor powder streams,main stream,flavours,aromas,cocoa,bacteria,colourants,allergens
Output ingredients
mixed product,processed stream,flavour-enhanced product,colourant-added product
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Inline Mixing Capacity
1000 – 20,000 l/h
Number of Minor Streams
Up to 3
Flow Rate Accuracy
Guaranteed by advanced loss-in-weight feeder controllers
Space Requirement
Compact design for minimal height
Cleaning Time Reduction
Dry cleaning time reduced by 90%
Disassembly
Complete disassembly for easy cleaning
Operation Type
Inline continuous mixing

Operating Characteristics


Working mechanism
Inline continuous mixing
Integrated steps
Feeding and mixing
Automation level
PLC controlled gravimetric feeding
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual/ Complete disassembly
Changeover time
Fast due to easy access and cleanability
CIP/SIP
Not specified
Manual cleaning implied
Allergen handling efficiency
90% downtime reduction for dry cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


End of line addition
Flavours,colourants

Physical Characteristics


Compact footprint
Compact inline module
Discharge method
Inline continuous mixing
Control panel type
Advanced loss-in-weight feeder controllers
Machine speed range
1000 – 20,000 l/h
Component streams
Up to 3 minor streams with one main stream
Height
Low height inline

Custom Options


Compact footprint
Very compact integration
Discharge method
Inline
Feeder type
Inline gravimetric continuous
Integration possibilities
Upstream of filling,packaging or processing equipment
Cleaning accessibility
Easy access for cleaning
Disassembly options
Complete disassembly of mixing chamber
Modularity
TCM module
