Contact detection system for rotary valves
In industries where product contamination from metal-to-metal contact is a critical concern, ensuring the integrity of rotary valves is vital. Challenges such as rotor deflection, bearing failure, and excessive load can lead to contamination and equipment failure, disrupting the manufacturing process.
Automatically detect and prevent rotor contact

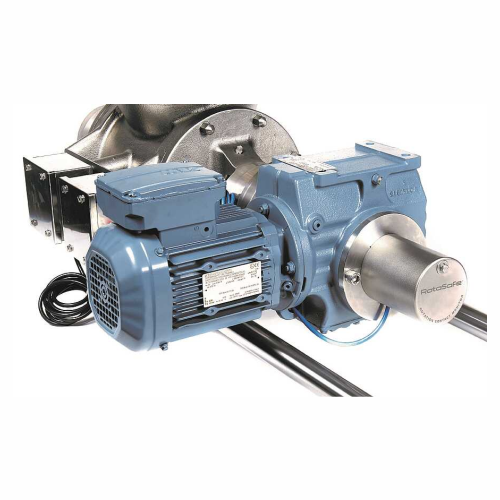

The RotaSafe Detection System by Gericke is a fully automated contact detection solution designed to prevent contamination and protect rotary valves. It instantly detects any contact between the rotor and valve housing, sending a signal to isolate power to the drive motor. This system addresses issues such as rotor shift due to product build-up, bearing failure, and excessive temperature. By preventing valve start-up if assembled incorrectly, RotaSafe minimizes the risk of material shedding and serious damage to valve components. Validated as ‘Simple Apparatus’ under clause 5.7 of EN60079-11.2012 by Baseefa, the control panel eliminates false alarms or ‘nuisance tripping’ and is available for panel mounting or in stand-alone setups for monitoring multiple valves. This system can also be retrofitted to existing rotary valves.
Benefits
- Prevents product contamination from metal-to-metal contact
- Protects valve components from serious damage
- Prevents incorrect valve assembly start-up
- Comes with validated safety compliance
- Can be retrofitted on existing rotary valves
