Chocolate shell molding system

Optimize your confectionery production with precision shell formation, enabling diverse and intricate chocolate coatings and centers for an array of confectionery delights.

Forms and Shapes Chocolate Products

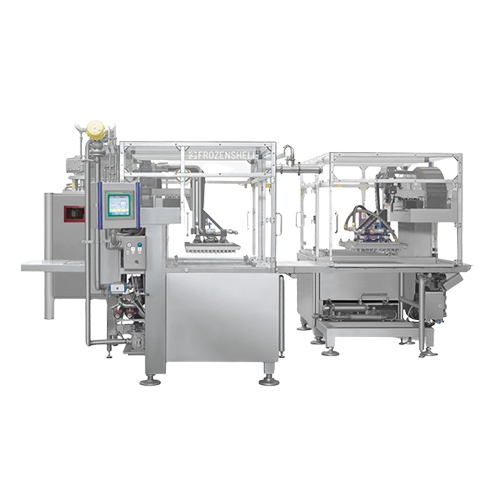

The Frozenshell® Chocolate Forming System from CHOCOTECH is engineered to efficiently produce diverse chocolate products with precision. It operates by employing frozen mould stamps that are submerged into a bath of tempered chocolate, ensuring accurate weight shaping and quick format changes. This system is ideally suited for creating chocolate shells, praline centers, and nougat bars, serving industries such as chocolate production and confectionery manufacturing. With a processing capacity ranging from 150 to 400 kg/h and a working width of 400 to 800 mm, Frozenshell® integrates seamlessly into high-speed, continuous production lines. Its exchangeable stamp plates offer flexibility in product shapes, while its robust construction promises durability and easy maintenance. The system supports a wide range of applications, making it a versatile choice for companies aiming to enhance their product offerings efficiently.

Benefits

  • Enhances production efficiency with quick format changes and high-speed operation.
  • Expands product variety with customizable shapes through exchangeable stamp plates.
  • Increases precision in product weight and shape, ensuring high-quality output.
  • Seamlessly integrates into existing production lines, optimizing workflow.
  • Minimizes maintenance time with robust construction and easy-to-clean design.

General


Applications
Biscuits,Brittle bars,Dragees,Pralines,Fruit bars,Chocolate products,Cereal bars,Sweets,Candy bars,Ice cream,Protein bars
End products
Chocolate shells,Nougat bars,Caramel brittle bars,Fruit and nut bars,Granola bars,Protein snack bars,Praline centers,Filled chocolate candies,Chocolate-coated ice cream sticks,Chocolate dragees,Chocolate-coated biscuits
Steps before
Tempering,Cooling
Steps after
Sprinkling + Decorating,Product Handling,Storing + Sieving,Enrobing
Input ingredients
tempered chocolate,frozen mould stamps
Output ingredients
thin chocolate shells,various shapes,exchangeable stamp plates
Market info
Sollich is known for manufacturing engineered-to-order equipment for the confectionery industry, particularly chocolate processing and enrobing machines. They have a strong reputation for innovation, quality, and tailored solutions to meet specific customer requirements.

Technical Specifications


Capacity
150–400 kg/h
Cycle rate
2 Cycles/min
Working width
400–800 mm
Automation
Plc-controlled
Quick format change
Yes

Operating Characteristics


Working mechanism
Frozen mould stamping
Cycle rate
2 cycles/min
Capacity
150 up to 400 kg/h
Working width
400 to 800 mm
Changeover capability
Quick format change
Automation level
Integrated conveyor system
Weight accuracy
Accurate weight shaping
Product combination flexibility
Wide range of product combinations

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Working width
400 up to 800 mm
Cycles per minute
2
Capacity
150 up to 400 kg/h
Discharge method
Conveyor belt
Customization option
Exchangeable stamp plates

Custom Options


Working width
400 up to 800 mm
Exchangeable stamp plates
Yes
Product combinations
Wide range
Quick format change
Yes
