Silo overfill protection system

Prevent silo overfilling and excess pressurization with a system designed to safeguard silos during filling operations, reducing the risk of costly structural damage and environmental pollution.

Prevents Overfilling and Regulates Silo Pressure

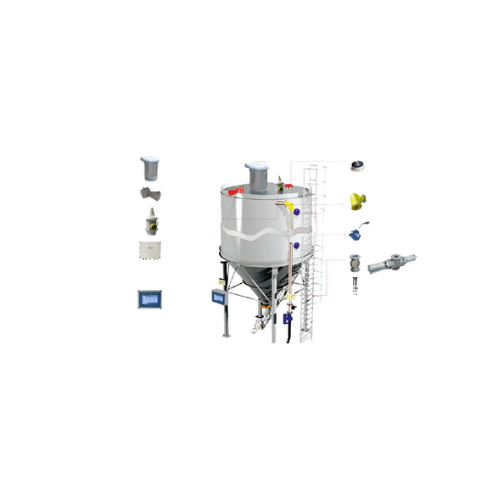

The Silo Safety System KCS from WAMGROUP provides an innovative solution for preventing overfilling and excess pressurization in silos. This system is essential for industries handling various powder and granule materials, including cement, plastics, and food products. It integrates seamlessly into automated production lines with its central electronic control panel managing up to 32 silos simultaneously. The system incorporates advanced features such as maximum level indication, internal pressure monitoring, and automatic filter cleaning to minimize dust emission and protect silo infrastructure. With components like pinch valves, pressure relief valves, and differential pressure meters, it ensures operational safety and environmental compliance. Tailored for continuous, automated safety monitoring, the KCS system enhances site safety and helps prevent costly damage, offering significant advantages for diverse applications ranging from chemical manufacturing to food processing.

Benefits

  • Prevents costly repairs by protecting silo infrastructure from overfilling and pressure damage.
  • Enhances safety with automated monitoring and precise pressure regulation.
  • Reduces environmental impact by minimizing dust emissions during filling operations.
  • Supports flexible integration with existing systems, accommodating up to 32 silos.
  • Improves operational efficiency with automatic filter cleaning and real-time pressure indication.

General


Applications
Lime,Pesticide,Plastics raw material,Cosmetics,Soap,Minerals,Chocolate,Cement,Insecticide,Spices,Rubber,Resin,Cocoa,Animal feed,Pasta,Noodle,Varnish,Sugar,Convenience food,Pet food,Fertilizer,Biscuit,Salt,Pharmaceuticals,Fish food,Paint,Beverage,Coffee,Detergent,Gypsum,Refractory products,Breweries
End products
Spaghetti pasta,Hydrated lime,Pyrethroid insecticide,Poultry feed pellets,Rubber sheets,Mixed spices,Cocoa powder,Glyphosate herbicide,Bar soap,Epoxy resin,Dog kibble,Firebricks,Portland cement,Fish meal,Ibuprofen tablets,Laundry detergent powder,Lager beer,Granulated sugar,Acrylic paint,Ramen noodles,Facial cream,Polyurethane varnish,Carbonated soft drinks,Polyvinyl chloride (pvc),Ground coffee,Instant noodles,Table salt,Urea fertilizer,Gypsum plasterboard,Chocolate-chip cookies,Quartz sand,Chocolate bars
Steps before
Material Collection,Material Storage,Material Transport,Powder and Granule Preparation
Steps after
Material Transfer,Packaging,Storage,Distribution
Input ingredients
powders,granular materials,compressed air
Output ingredients
vented air,dust emission
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


System monitoring capacity
Up to 32 silos simultaneously
Automation
Electronic monitoring and control panel
Pressure monitoring
Internal pressure monitoring of each silo
Pressure relief
Pressure relief valve
Alarm system
Audible alarm for alerts
Pinch valve control
Pneumatic control panel
Total components
Central control and component kit
Level detection
Maximum level indicator
Pressure measurement
Electronic pressure meter
Venting filter monitoring
Pressure gauge indication

Operating Characteristics


Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Batch vs. continuous operation
Batch / Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Control panel type
Central electronic monitoring and control panel
Discharge method
Includes pinch valve,tanker coupling

Custom Options


Control panel type
Central electronic monitoring and control panel
Integration possibilities
Manages a series of silos
Power panel
Individual power panel for each silo
Pneumatic control
Pinch valve with pneumatic control panel
