Professional chocolate tempering system

Enhance your chocolate production with a versatile tempering system that optimizes flavor integration and product consistency, making it essential for intricate confectionery processes such as enrobing, moulding, and flavor infusion.

Tempers and Moulds Chocolate for Diverse Products

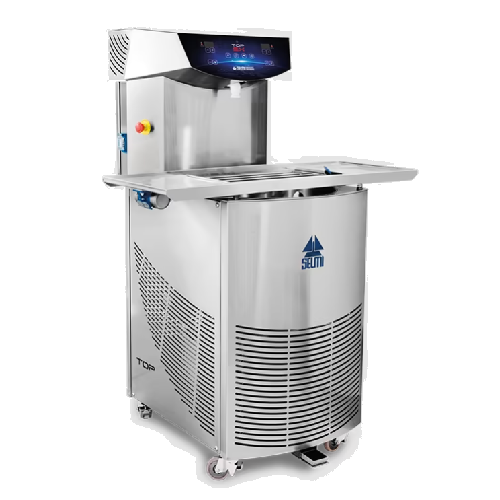

The Top EX from Selmi Group is a professional chocolate tempering machine that caters to artisan chocolatiers and medium to large workshops. This machine stands out due to its patented removable screw pump, enabling quick cleaning and seamless transition between chocolate types and flavors. It efficiently tempers 60 kg of chocolate in just 14 minutes, with a production capacity of 200 kg per hour, making it ideal for high-demand environments. The Top EX integrates seamlessly into existing production lines with options for moulding, enrobing, and mixing, supporting the creation of diverse products such as pralines, enrobed snacks, and artisan chocolate bars. Enhanced with a low-voltage heated vibrating table, it ensures precise control over chocolate flow. Its digital control panel simplifies operation and monitoring, while the robust construction withstands continuous, high-speed operations. Optional configurations and engineering support allow customization to meet specific production needs.

Benefits

  • Enhances production efficiency with rapid tempering and high hourly output.
  • Minimizes cleaning time with a quick-release screw pump design.
  • Reduces operational costs through energy-efficient operation and low running expenses.
  • Increases product variety with versatile moulding and enrobing capabilities.
  • Facilitates seamless integration into existing production lines for scalable operations.

General


Applications
Pralines,Coffee roasting,Confectionery,Chocolate coatings,Chocolate products,Chocolate fillings,Sweets,Chocolate bars,Spreadable creams,Chocolate moulding,Chocolate enrobing,Truffles,Dried nuts,Chocolate ganache,Anhydrous pastes
End products
Chocolate truffles,Chocolate coated nuts,Chocolate enrobed desserts,Filled chocolate bars,Cocoa bean to bar chocolate,Candied dried nuts,Nuts and chocolate spreads,Chocolate ganache filled pastries,Praline bonbons,Artisan chocolate tablets,Chocolate moulded figures,Enrobed chocolate snacks,Anhydrous chocolate spread,Roasted coffee beans
Steps before
Bean to Bar cocoa beans crusher,Grinder Plus (nibs into cocoa mass),Roasting,Winnowing,Chocolate melting,Chocolate mixing
Steps after
Chocolate enrobing,Chocolate moulding,Cooling,Chocolate coating,Packing,Distribution
Input ingredients
chocolate,hazelnut grains,cocoa gruè,other ingredients for flavoring
Output ingredients
tempered chocolate,flavored chocolate
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Tank capacity
60 kg
Hourly production rate
200 kg
Electrical specification
400 V three phase - 50 Hz
Power required
3.5 Kw - 16 A - 5 poles
Cooling unit capacity
3000 frigories/h
Dimensions (LxWxH)
600x1100x1565 mm
Width with vibrating table
1060 mm
Width with RS200
1740 mm
Voltage options
Option to modify to three-phase 220 V – 50/60 Hz
Compatibility
Mould loader 175 and Moulding line 275
Temperature control
Digital control panel
Vibrating table voltage
220 V / 24 V

Operating Characteristics


Working Mechanism
Continuous tempering
Integrated Steps
Tempering,flavouring
Batch vs. continuous operation
Continuous
Changeover time
Quick swap of screw pump
Automation level
Digital control panel
Cleaning method
Removable screw pump for easy cleaning

Material Compatibility


Cleanability
Yes

Physical Characteristics


Footprint Dimensions
600x1100x1565 mm
Tank Capacity
60 kg
Screw Pump
Removable
Vibrating Table Width
1060 mm
Width with RS200
1740 mm

Custom Options


Control panel type
Digital control panel
Integration possibilities
Compatible with Mould loader 175 and Moulding line 275
Customization for cleaning
Removable screw pump for easy cleaning
Product insertion capability
Ability to insert hazelnut grains,cocoa grué
Voltage modification
Option to modify to three-phase 220 V – 50/60 Hz
Discharge method
Volumetric dispenser with pedal control
