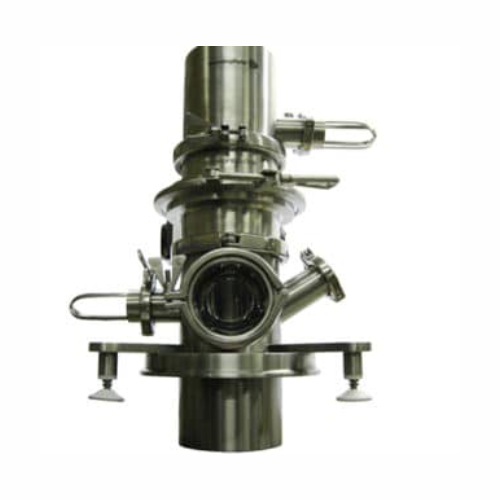

Powder flow control system for gravity transfer

Ensure precise dosing and prevent spillage during powder transfers in your processing line with an integrated control system, designed to sustain optimal flow and maintain equipment efficiency.

Controls and Regulates Powder Flow

The Powder Flow Control System from Hanningfield is specifically designed to manage the precise flow and dosing of powders in industries ranging from pharmaceuticals to nutraceuticals and chemicals. It features a rotary valve system that facilitates continuous and automated operation, ensuring seamless powder transfers with minimal risk of spillage or overloading. Its ability to integrate with existing site machinery enhances control, as level sensors automate powder flow management, activating only when needed to prevent material excess.

Primarily used in applications involving tablets, vitamin supplements, APIs, and cannabis products, the system supports efficient processing by maintaining an optimal flow rate of powders, critical for processes like compression and encapsulation. Constructed with 316L stainless steel and FDA-compliant seals, it meets strict industry standards for hygiene and safety, making it suitable for sectors demanding high compliance and reliability, such as pharmaceuticals and food and beverage production.

The system is also equipped for easy cleaning and maintenance, with tri-clover clamps allowing for quick disassembly. Customizable features like level probes, breather socks, and sampling ports offer additional flexibility to tailor the system to specific operational requirements, ensuring a perfect fit within diverse processing lines.

Benefits

  • Prevents material overloading and spillage, ensuring production efficiency and safety.
  • Seamlessly integrates with existing machinery, enhancing process control and automation.
  • Facilitates quick cleaning and maintenance, reducing operational downtime.
  • Ensures compliance with FDA standards, making it ideal for sensitive applications like pharmaceuticals and nutraceuticals.
  • Customizable to specific process needs, offering flexibility across diverse industry applications.

General


Applications
Powders for encapsulation,Chemical powders,Powders for compression,Nutraceuticals,Pharmaceutical powder,Food and beverage,Cannabis
End products
Protein powders,Effervescent tablets,Active pharmaceutical ingredients (apis),Bakery mix powders,Vitamin supplements,Gel capsules,Cannabis-infused edibles,Herbal supplements,Tablets,Drink mixes
Steps before
Powder Preparation,Material Blending,Pre-Sieving
Steps after
Tablet Pressing,Encapsulation,Powder Packaging
Input ingredients
powder,bulk materials
Output ingredients
controlled powder flow,regulated powder discharge
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Valve Type
Rotary Valve
Material
316L Stainless Steel
Cleaning Method
Quick Dismantling for Cleaning
Integration Capability
Existing Site Machinery
Level Sensor
High/Low Level Sensor
Customizable Features
Sight-glass,Sampling Port,Breather Sock
Flange Type
Customizable for On-site Equipment
Compliance
FDA Compliant Seals and Gaskets
Connection Method
Tri-clover Clamps
Automation
Powder Flow Control

Operating Characteristics


Working mechanism
Rotary valve
Integrated components
Level probe,sight-glass,breather sock
Batch vs. continuous operation
Continuous
Flow control
Gravity Transfer
Dismantling method
Tri-clover clamps for easy cleaning
Automation level
Integrated with machinery for automated flow regulation
Cleaning method
Easy dismantling

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy dismantling
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
FDA compliant materials
Yes
Stainless steel (316L)
Yes

Physical Characteristics


Discharge method
Gravity / Rotary valve
Construction material
316L stainless steel
Integration capability
With existing site machinery
Cleaning method
Tri-clover clamps for dismantling
Additional components
Level probe,sight-glass,sampling port,breather sock

Custom Options


Integration possibilities
Customizable with level probe,sight-glass,sampling port,breather sock
Flange type
Any flange type for mating with on-site equipment
Dismantling method
Quick and easy using tri-clover clamps
Material construction
316L stainless steel
Seals and gaskets
FDA compliant
