Laboratory mixer for r&d and small batch production

Achieve superior mixing precision for R&D and pilot production with our compact double shaft laboratory mixer, designed to ensure optimal ingredient preservation and fast blend times for innovative product development.

Mixes and Blends Powders and Granules

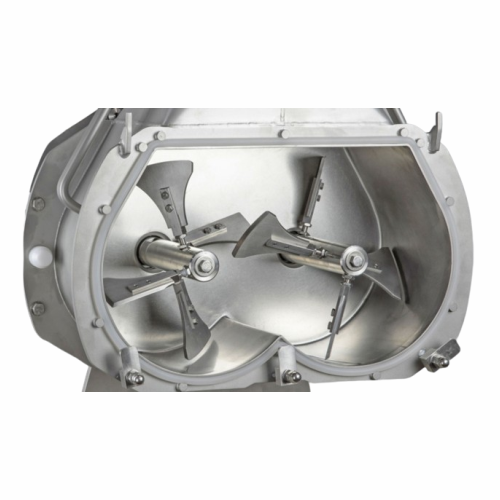

The GMS Compact Laboratory Double Shaft Mixer from Gericke is designed for precise and efficient mixing in R&D and pilot scale operations. Featuring two horizontally arranged mixing tools, it creates a fluidized mixing zone, ensuring uniform blending of powders and granules. With a capacity ranging from 1 to 20 liters, it is ideal for developing recipes and scaling up production processes. The mixer is easy to clean, with interchangeable and sterilizable mixing chambers, reducing downtime and contamination risks. Operating at an optimal Froude number of 1.1, it maintains the integrity of high-value ingredients. Its compact, mobile design requires only an electrical supply, making it easy to deploy in various production environments. The GMS Compact supports a wide range of industries, including food, pharmaceutical, and chemical processing, offering versatility in product development and small-batch production.

Benefits

  • Ensures consistent quality with fluidized mixing zone for uniform blends.
  • Minimizes R&D costs with low minimum filling volume.
  • Simplifies cleaning and maintenance with easy dismantling and sterilizable parts.
  • Enhances flexibility with quick interchangeability of mixing chambers.
  • Preserves ingredient integrity at optimal mixing speeds.

General


Applications
Vitamins,Steel,Bakery,Animal and aqua feed,Water treatment,Flue gas treatment,Lime and gypsum,Minerals,Plastics and coatings,Catalysts,Battery production,Dairy,Food,Chemicals,Fine chemicals,Noodles and rice,Glass,Beverages and coffee,Crop protection and fertilizers,Biscuit and snacks,Cereals and cereal bars,Textured vegetable proteins,Salt and seasoning,Infant nutrition,Pet food,Paint and dyes,Flavours and fragrances,Beverages,Detergents and soaps,Chocolate and confectionary,Api manufacturing,Construction chemicals,Cement and fly ash,Flour,Superabsorbants,Pharmaceutical
End products
Sea salt seasoning,Dog kibble,Vitamin supplements,Potato chips,Cake mix,Mozzarella cheese,Fertilizer pellets,Shampoo bases,Essential oil blends,Catalytic converters,Diaper cores,Fish feed,Limestone powder,Glass fibers,Granola bars,Insecticides,Soy protein crisps,Potable water additives,Concrete additives,Air quality control agents,Milk chocolate,Lithium-ion battery materials,Stainless steel components,Liquid detergents,Active pharmaceutical ingredients (apis),Acrylic paint,Coffee blends,Baby formula,Textile dyes,Skincare serums,Rice noodles,Drywall compounds
Steps before
Grinding,Weighing,Pre-mixing
Steps after
Sterilization,Packing,Product Analysis
Input ingredients
high-quality ingredients,recipes,pre-mixes
Output ingredients
mixed batches,fluidised mixtures,small batch production
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Mixing Quality
Excellent
Volume Range
1 to 20 litres
Mixing Tools
Two horizontally arranged,superimposed
Filling Volume
Low minimal filling volume
Froude Number
1.1
Speed Type
Low speed
Mixing Chamber
Interchangeable
Cleaning Method
Easy to clean and can be sterilised out of place
Power Supply
220 V AC/50 Hz
Automation
Manual/Standalone device

Operating Characteristics


Working mechanism
Double shaft,twin-rotor
Batch vs. continuous operation
Batch
Automation level
Ensure optimal mixing with low-speed operation
Cleaning method
Easy dismantling,can be sterilized
Scalability
Suitable for R,D and small batch production
Integration
Standalone device,electric supply 220 V AC/50 Hz
Mixing efficiency
Fluidized zone creation by two horizontally arranged tools
Interchangeability
Interchangeable mixing chambers
Operation speed
Optimal Froude number of 1.1

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Research,development use
Yes
Pilot plant suitability
Yes,designed for small production batches

Physical Characteristics


Machine footprint
Small
Mixing chamber size
1 to 20 litres
Feed/discharge method
Manual
Control panel type
Standalone

Custom Options


Compact footprint
Yes
Interchangeable mixing chambers
Yes
Discharge method
Easy dismantling for cleaning
