Hopper venting filter for efficient dust filtration

Achieve superior dust control and efficient material handling with a compact venting filter designed for safe and clean operations, ensuring your production environment meets stringent emission standards while maintaining optimal performance.

Filters and Vents Dust from Production Lines

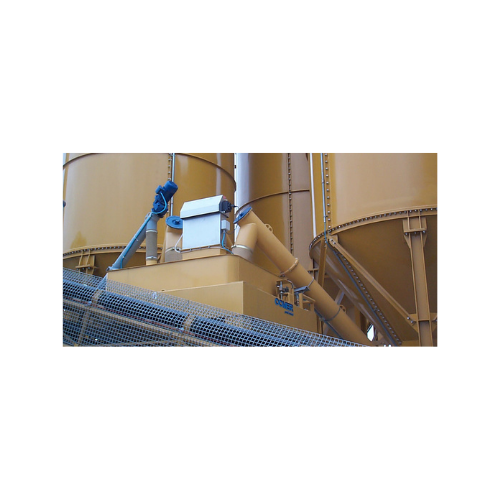

The HOPPERJET from WAMGROUP is a compact hopper venting filter designed to optimize dust control in various industrial operations. It features a polygonal design with a small footprint, ideal for installation on storage and weigh hoppers. Using a single POLYPLEAT or bag-type filter element, it effectively separates dust from air via an integrated automatic reverse air jet cleaning system. This maintains a continuous and efficient filtration process, reducing emissions significantly. The HOPPERJET is suitable for applications in building materials, chemicals, food, plastics, and heavy industries, producing end-products like precast concrete panels, pharmaceutical tablets, and plastic granules. It operates with air volumes ranging from 30 to 200 m³/h, supported by a compressed air pulse-jet cleaning system. Constructed with a stainless-steel casing, the equipment can be adapted for explosive environments under the ATEX directive. Easy installation and tool-free filter element replacement make the HOPPERJET user-friendly and efficient for large-scale dust management and air quality control in industrial settings.

Benefits

  • Minimizes dust emissions with high filtration efficiency.
  • Compact design saves space in crowded production facilities.
  • Corrosion-resistant materials ensure long-term durability.
  • Quick, tool-free filter replacement reduces maintenance time.
  • ATEX-certified options enhance safety in explosive environments.

General


Applications
Lime,Tobacco,Cosmetics,Chemical ad-mixtures,Soap,Pesticides,Minerals,Chocolate,Bakery products,Cement,Insecticides,Detergents,Iron and steel,Glass,Noodle making,Spices,Rubber,Resin,Cocoa,Animal feed,Ceramics,Pasta,Building materials,Pet food,Sugar,Convenience food,Varnish,Biscuit,Plastics,Baby food,Salt,Foundries,Fertilizers,Wood,Pharmaceuticals,Paint,Beverage,Coffee,Cork,Gypsum,Refractory products,Coking plants
End products
Face creams,Oil-based paint,Plastic granules,Spaghetti pasta,Npk fertilizers,Weed killers,Plywood,Drywall,Fruit juice,Cement blocks,Oatmeal cookies,Latex gloves,Wood varnish,Cocoa powder,Bar soap,Steel beams,Epoxy resin,Ceramic tiles,Glass sheets,Croissants,Fire bricks,Chili powder,Instant soup mixes,Liquid detergents,Dog kibbles,Granulated sugar,Cattle feed pellets,Quartz powder,Ground coffee,Cast iron bars,Cigarette tobacco,Quicklime,Instant noodles,Mosquito repellents,Baby formula,Silicone sealants,Sea salt,Medicinal tablets,Coke fuel,Precast concrete panels,Cork flooring,Chocolate bars
Steps before
Material Loading,Pneumatic Conveying,Mechanical Filling
Steps after
Dust Collection,Venting,Storage in Hoppers
Input ingredients
dust,air flow,mechanically filled materials
Output ingredients
clean air,filtered dust,low emission values
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Filter surface
0.5 ~ 2 m² (5 ~ 21 sq ft)
Air volume
30 ~ 200 m³/h (17 ~ 118 cfm)
Filter elements
Pocket or POLYPLEAT
Cleaning system
Compressed air pulse-jet (4 bar)
Casing material
Stainless-steel
Footprint
Small,0.11 m² (1.2 sq ft)
Emission level
Low,due to B.I.A.-certified filter media
Footprint
Compact design
Spigot
Available for centralised suction system

Operating Characteristics


High Filter Efficiency
High efficiency hopper venting
Automation Level
Automatic reverse air jet cleaning
Design Flexibility
Compact design and small footprint
Low Dust Emission
Particularly low dust emission values
Filter Element Replacement
Quick,tool-free filter element replacement

Material Compatibility


Corrosive resistance (e.g. acids)
Corrosion-free design
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Small
Design
Polygonal
Filter Surface Area
0.5 ~ 2m² (5 ~ 21 sq ft)
Material
Stainless-Steel
Filter Elements
Pocket or POLYPLEAT
Cleaning System
Compressed Air Pulse-Jet
Compact Design
Yes
Installation
Intermediate or Weigh Hoppers

Custom Options


Material Options
304 / 316 stainless steel
Spigot Option
Centralised suction system
Pressure Monitoring
Electronic differential pressure meter (MDPE)
