High-precision gravimetric feeders for industrial bulk solids

Achieve unparalleled accuracy in your production line with precision gravimetric feeders, ensuring consistent bulk material flow and optimized process control for various operational demands.

Ensures Accurate Continuous Bulk Material Feeding

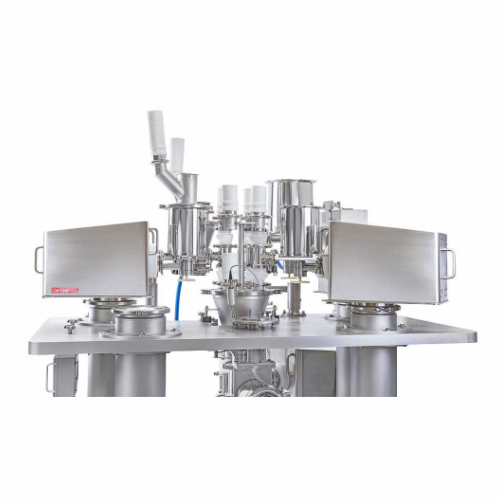

The GDU 201 and DIW-3E gravimetric feeders from Gericke are engineered to deliver precise dosing and metering of bulk solids in continuous manufacturing environments. Their advanced loss-in-weight technology combines optimized mechanical design and sophisticated controls for unmatched accuracy, catering to industries such as food, pharmaceuticals, and chemicals.

These feeders operate by weighing a requested quantity as a batch or maintaining a constant mass flow, making them ideal for processes requiring high precision and reliability. They seamlessly integrate into production lines, feeding ingredients into mixers, kilns, and other processing equipment. With hopper capacities ranging from 5 to 2000 dm³, they cater to diverse applications including infant formula production, catalyst dosing, and detergent manufacturing.

Gericke’s feeders are designed for easy integration with pneumatic conveying systems and batch mixers, featuring high-resolution load cells for direct weight measurement and tare-compensated systems for environments with low bulk densities. Built with hygienic designs tailored to meet the stringent demands of the food and pharmaceutical sectors, they ensure compliance with industry regulations.

The feeders’ energy-efficient design leverages direct load measurement and tare compensation, offering robustness and vibration filtering qualities essential for maintaining precision in challenging operating conditions. Available in corrosion-resistant materials, they promise longevity and compatibility with various chemical processes, while custom engineering support from Gericke ensures adaptation to specific production requirements.

Benefits

  • Enhances product quality by ensuring precise and consistent material feeding.
  • Minimizes operational costs with energy-efficient tare-compensated weight systems.
  • Easy-to-clean design reduces contamination risk in food and pharmaceutical applications.
  • Customizable configurations accommodate diverse production needs and materials.
  • Durable construction withstands challenging environments, ensuring long-term reliability.

General


Applications
Lime,Steel,Bakery,Water treatment,Flue gas treatment,Minerals,Catalysts,Dairy,Cement,Chemicals,Dyes,Detergents,Fine chemicals,Glass,Biscuit and snacks,Batteries,Crop protection,Animal feed,Textured vegetable proteins,Infant nutrition,Pet food,Flavours,Plastics,Fertilizers,Pharmaceuticals,Beverages,Chocolate and confectionary,Paint
End products
Infant formula,Sports drinks,Cheese,Potable water,Lithium-ion batteries,Hydrated lime,Potato chips,Poultry feed,Npk fertilizer,Surfactants,Clear glass bottles,Polyethylene pellets,Vanilla extract,Croissants,Soy protein isolate,Gypsum board,Flue gas desulfurization products,Automotive catalysts,Rebar,Pharmaceutical intermediates,Acrylic paint,Oncology drugs,Textile dyes,Chocolate bars,Herbicides,Canned dog food
Steps before
Mixing,Pneumatic Conveying,Size Control,Granulation
Steps after
Continuous Manufacturing,Packing,Quality Inspection
Input ingredients
bulk solids,fruits,raisins,bulk materials,low bulk density materials
Output ingredients
accurately metered materials,constant mass flow,high-precision feeding,processed materials,dosed bulk materials
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Accuracy
High precision with guaranteed highest accuracy for loss-in-weight feeding applications
Load measurement
Direct load measurement
Hopper size
5–30 dm³ (DIW-PE),30–2000 dm³ (DIW-3E),5–30 dm³ (DIW-KE),300–2000 dm³ (DIW-E)
Weighing system
Compact platform-type,high-resolution electromagnetic force compensation digital load cell
Tare-compensated weighing
Available in hybrid systems
Feed rate
Smaller feed rates (DIW-KE),medium to very high feed rates (DIW-E)
Feeder combination
Combinable with Gericke’s FEEDOS S models,GZD twin-screw feeders,GDU,GAC,and GVD vibro feeders
Design
Easy-to-clean and hygienic
Vibration filtering
Unique spring-damper system
Special Execution
Demands of the food and pharmaceutical industry

Operating Characteristics


Weighing mechanism
Load cell / Electromagnetic force compensation
Feeding type
Gravimetric / Loss-in-weight
Batch vs. continuous operation
Batch / Continuous
Automation level
Intelligent control system / PLC
Hygienic design
Easy-to-clean / CIP compatible
Environment suitability
Food and Pharmaceutical Grade
Vibration isolation
Spring-damper system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Compact platform-type
Hopper size
5–2000 dm³
Discharge method
Twin-screw / Vibro feeder
Load measurement type
Electromagnetic force compensation
Design
Hygienic design

Custom Options


Control panel type
Digital
Integrated with controller
Integration possibilities
Compatible with Gericke’s FEEDOS S models and GAC,GDU,GVD types
Hopper size options
5-2000 dm3
Hygienic design versions
Available for food and pharmaceutical industries
