Bigbag discharge system for food, chemical, and pharmaceutical industries

Ensure precise and dust-free handling of bulk powders with a flexible and modular discharge system, designed for seamless integration within complex processing lines.

Handles and Dispenses Powders and Granules Efficiently

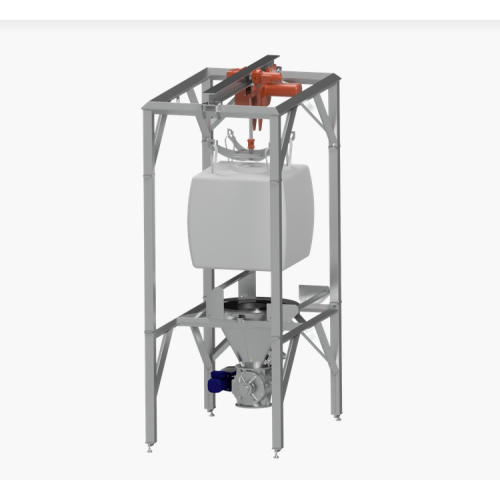

The Bigbag Discharge Master from Daniatech is an ergonomic and flexible system engineered for efficient handling and discharging of powders and granules in the food, chemical, and pharmaceutical industries. This modular system allows adaptation to various bigbag types and discharge options, ensuring seamless integration into existing production lines. Its core design includes a three-module structure featuring a bottom section with multiple discharge options, a customizable middle section, and a top section equipped with an electrical hoist or fixed frame for forklift handling.

Ideal for applications ranging from dairy and infant formula to biotech and pet food products, the Bigbag Discharge Master offers precise weighing and dosing capabilities. It supports connection to pneumatic conveying systems and can include components like flow aids, vibrators, sifters, and dust extraction units to optimize operational efficiency. With safety and compliance in mind, it features ATEX-compliant solutions and low dust emission designs, ensuring both operator safety and environmental standards are met.

Designed for ease of use, the system incorporates options such as load cells for accurate weight measurement, and its ergonomic construction allows safe access with minimal manual handling. The integration of a central PLC control system facilitates automated operations, enhancing productivity and reducing operational downtime. Additionally, its robust construction supports long-term durability and minimal maintenance needs, with options available for CIP systems to ensure contamination-free cleaning and ongoing equipment reliability.

Benefits

  • Enhances operational efficiency with modular design adaptable to various production needs.
  • Reduces environmental impact through closed system design minimizing dust emissions.
  • Boosts productivity with seamless integration into existing pneumatic conveying systems.
  • Increases safety and compliance with ATEX-certified components.
  • Minimizes manual handling, enhancing operator safety and ease of use.

General


Applications
Sauces,Sweetened condensed milk,Infant formula,Cheese,Processed cheese,Biotech products,Soft drinks,Ice cream mix,Chemicals,Soups,Hummus,Condiments,Cream cheese,Analogue cheese,Recombined milk,Juices,Syrups,Powdered products,Pet food,Flavoured milk,Concentrates,Dulce de leche,Pharmaceuticals,Plant-based beverages,Personal care products,Confectionary,Liquid batters,Mayonnaise,Dairy products,Spreadable cheese
End products
Pancake batter,Mozzarella cheese,Protein powder,Orange juice concentrate,Caramel-flavored sweetened condensed milk,Chocolate truffles,Uht milk,Garlic hummus,Olive oil mayonnaise,Pcr reagents,Grain-free pet kibble,Protein-infused infant formula,Tomato soup,Hot sauce,Carbonated cola drink,Vanilla ice cream base,Lactose-free milk,Vegan almond milk,Fertilizers,Dulce de leche spread,Dairy-free cheddar,Maple syrup,Sliced processed cheese,Chocolate-flavored milk,Shampoo,Antibiotic capsules,Cream cheese with chives
Steps before
Purification,Drying,Emulsification,Grinding
Steps after
Sterilization,Packing,Coating
Input ingredients
bigbags,bulk materials,powder,granulate materials
Output ingredients
discharged materials,bulk materials,powder,granulate materials
Market info
Daniatech specializes in manufacturing industrial mixers and processing equipment, known for innovation and high-quality engineering, specifically within the food, beverage, and pharmaceutical industries. Their solutions are tailored to improve efficiency and performance in production processes.

Technical Specifications


Bigbag size
According to EN21898
Volume
0.5 – 2 m³
Height (max)
2200 mm
Lifting straps
300 mm
Filling sprout diameter
Ø350 – 450 mm
Compressed Air Usage
Up to 7 bar,2-10 m³/h
Automation
PLC-controlled
Flow aids options
Vibrator,fluidiser
Dust extraction
Around the outlet sprout
Load cells and weighing computer
Available

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Changeover time
Quick adjustment with modular design
Dust emission control
Low dust emission closed system
Ergonomic design
EHEDG compliant
Hoist operation
Electrical hoist or fixed frame with forklift compatibility
Bigbag handling flexibility
Forklift handling on lifting yoke
Discharge adaptability
Multiple discharge options for bottom section

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Industry Application
Food,Chemical,Pharmaceutical

Physical Characteristics


Machine footprint
Customizable based on module
Height
Up to 2200 mm
Volume Capacity
0.5 – 2 m³
Feed/Discharge method
Forklift handling,electrical chain hoist
Discharge method
Bottom section options
Filling sprout diameter
Ø350 – 450 mm

Custom Options


Lifting Options
Forklift handling on a lifting yoke / Electrical chain hoist
Discharge Options
Bottom section with various discharge options
Section Heights
Middle section available in different heights
Hoist Options
Electrical hoist / Fixed frame
Connection Options
Connection to dosing systems like rotary valves,screw feeder
Dust Extraction
Dust extracting around the outlet sprout
Outlet Hopper Sizes
Different sizes available
Vibration Options
Vibrator on bigbag / Fluidiser and vibrator on outlet funnel
Load Cells
Load cells and weighing computer available
Control System
Central PLC control system
ATEX Zones
Options for other ATEX zones
Grounding
Grounding clamp
Fan Options
Fan with connection to the filling head for air replacement
Additional Equipment
Sifter / Magnet / Lump-breaking equipment
