Big bag unloader for industrial bulk materials

Efficiently handle bulk materials with this modular unloading system, designed to ensure dust-free operations and improved safety in your production line. Ideal for those seeking seamless integration and adaptability to changing process requirements.

Unloads and Discharges Bulk Powders and Granules

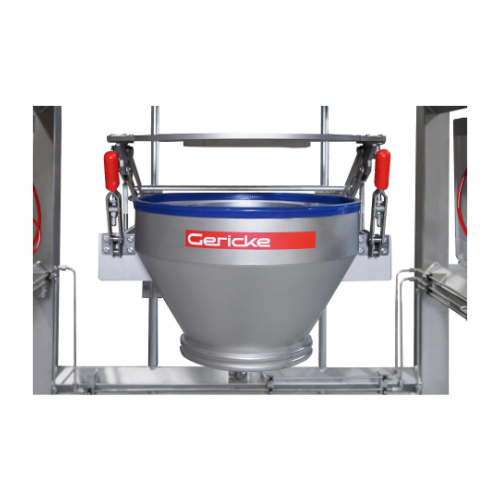

The Big Bag Unloader BBU from Gericke is designed to optimize industrial bulk powder and granule handling, providing a modular and dust-tight solution that adapts to changing production needs. Its innovative design enables seamless unloading and discharging, effectively serving industries ranging from food and beverages to pharmaceuticals and chemicals. With flexible configurations, the BBU supports direct discharge into hoppers or integration into pneumatic conveying systems, ensuring efficient material flow and minimizing dust exposure.

In terms of automation and integration, the BBU facilitates easy installation and adaptability, featuring options like hygienic execution and ATEX compliance for dust and gas zones. It offers multiple discharge modules, including vibrating tables and under massagers, to address various flowability challenges. Material options include carbon steel and stainless steel, catering to different environmental and product requirements.

The BBU supports safe operation with enhanced operator accessibility and safety features, such as open accessibility from the front and hoisting capabilities from the side or back. Its design also considers cleaning and maintenance, incorporating an optional dedusting filter unit and customizable connection options to suit specific plant layouts.

Benefits

  • Enhances operational flexibility with modular design to adapt to production changes.
  • Improves workplace safety by ensuring dust containment and easy operator access.
  • Supports hygiene standards with optional stainless steel construction and hygienic execution.
  • Minimizes maintenance effort with streamlined, user-friendly design and optional dedusting unit.
  • Compliant with ATEX standards, suitable for hazardous dust and gas environments.

General


Applications
Steel,Bakery,Water treatment,Flue gas treatment,Lime and gypsum,Minerals,Plastics and coatings,Catalysts,Battery production,Dairy,Animal food,Food,Chemicals,Fine chemicals,Noodles and rice,Glass,Beverages and coffee,Crop protection and fertilizers,Biscuit and snacks,Cereals and cereal bars,Textured vegetable proteins,Salt and seasoning,Infant nutrition,Paint and dyes,Pet,Flavours and fragrances,Pharmaceuticals,Beverages,Detergents and soaps,Chocolate and confectionary,Construction chemicals,Cement and fly ash,Flour,Superabsorbants
End products
Protein isolate,Dog kibble,Infant formula,Lithium-ion battery components,Potato chips,Pesticides,Fish feed,Chemical catalysts,Seasoning blends,Limestone powder,Polyethylene pellets,Granola bars,Cappuccino powder,Epoxy resin,Bread flour,Portland cement,Chocolate coating,Water treatment chemicals,Cornflakes,Pasta,Active pharmaceutical ingredients (apis),Aromatic essences,Acrylic paint,Milk powder,Glass powder,Absorbent polymers for diapers,Fertilizer granules,Construction adhesive compounds,Gypsum board mix,Steel alloy powders,Rice flour,Detergent granules,Pigment dyes,Flue gas absorbents
Steps before
Big-Bag lifting,Big-Bag transport,Pneumatic conveying preparation,Weighing,Vacuuming,Logistics setup
Steps after
Direct discharge into hopper,Intermediate container filling,Pneumatic conveying,Feeding into reactor,Inclined screw conveying,Dedusting,Empty Big-Bag disposal
Input ingredients
Big-Bag,FIBC,Medium flowing powders,Poor flowing powders,Flying powders,Flowing powders
Output ingredients
Discharged materials,Flowing powders from Big-Bag,Improved product flow materials
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Load carrying beam capacity
2000 kg
Hoist beam length
2800 mm
Hoist load capacity
1000 or 2000 kg
Material
Carbon steel or stainless steel
Installation height
Reduced
Discharge options
Resting table,Vibrating table,Under massagers
Discharge method
Direct discharge,Vacuum conveying,Dense-phase pneumatic conveying
Optional executions
Hygienic,ATEX-certification

Operating Characteristics


Modularity
Standardised components for flexible configuration
Maintenance effort
Minimum
Flexibility
Adjustable to application changes
Safety features
Up-to-date safety standards
Dust containment
Ensures dust-tight operation
Hygiene
Optional hygienic execution available
Automation level
Manual / Semi-automated
Installation
Reduced height installation alternatives
Flowability enhancement
Stretch unit,vibrating table
Operator safety
Open accessibility from the front
Process integration
Compatible with various discharge options

Material Compatibility


Cleanability
Hygienic execution options
Corrosive resistance
Stainless steel options
Density/particle size
Flexible for various particle sizes

Product type Characteristics


Dust containment
Dust-tight
Flowability of material
Medium,Poor flowing powders
Hygienic execution
Optional

Physical Characteristics


Load carrying beam
2000 kg
Hoist beam length
2800 mm
Load capacity of hoist
1000 or 2000 kg
Material
Carbon steel or stainless steel
Structure
Modular,flexible design
Discharge method
Direct into hopper,intermediate container,etc.

Custom Options


Hoist load capacity
1000 or 2000 kg
Frame material
Carbon steel or stainless steel
Installation height
Reduced
ATEX solutions
For dust or gas zones
Hygienic execution
Optional
Big-Bag hoisting method
From side or back of station
Twin ring docking station
With contamination solution
Optional dedusting
At the back of the station
Stretch device
To improve product flow
Drip pan
Attached to traverse
Vibrating table option
For medium flowing powders
Under massager option
For poor flowing powders
Connection options
Direct discharge,Conveyor options
