Automated powder induction and dispersion system for industrial mixing

Achieve rapid and efficient incorporation of powder ingredients into your mixing process with enhanced safety features, remote capability, and live data monitoring, ensuring optimal operation and reduced manual intervention.

Induces and Disperses Powders in Liquids

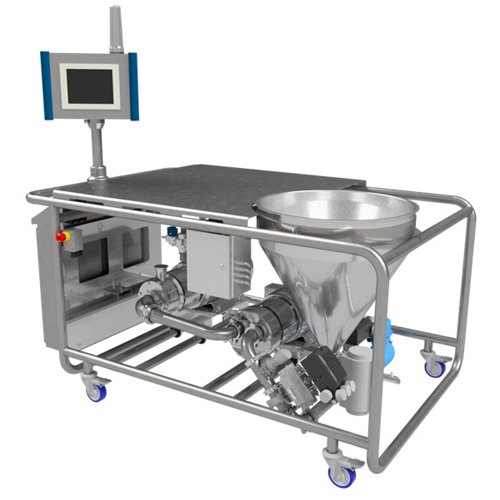

The Fastfeed® PLC from Admix is an automated system designed for efficient powder induction and dispersion within liquid processes. This equipment integrates an innovative liquid ring pump with a high shear emulsifier, achieving rapid and uniform wetting and dispersion of powder ingredients. It’s particularly suited for applications across food, beverage, pharmaceuticals, and cosmetics, handling products like soup bases, fruit juices, and dairy items.

Capable of continuous and high-speed operations, the Fastfeed® PLC is PLC-controlled, allowing for the storage of up to 500 recipes while enabling remote access for monitoring and maintenance. Its automated Clean-In-Place (CIP) feature enhances cleanability, ensuring minimal downtime and contamination risk. The system’s energy-efficient design optimizes motor use, reducing energy consumption during operations.

Constructed with durable materials, the Fastfeed® PLC offers corrosion resistance suitable for diverse chemical environments, while maintaining compliance with industry standards. Admix provides customization options and engineering support to adapt the system to specific production needs, ensuring a reliable and seamless integration into existing processing lines.

Benefits

  • Enhances operational efficiency by automating powder incorporation and dispersion.
  • Decreases labor costs with remote monitoring and control capabilities.
  • Maintains system longevity with built-in safety features and reduced mechanical stress.
  • Minimizes production downtime with quick and thorough Clean-In-Place procedures.
  • Enables precise and repeatable results by storing and accessing up to 500 recipes.

General


Applications
Food,Sauces,Cereal,Confection,Beverage,Meat,Pet foods,Cosmetics,Baking,Tomato,Chemical,Dressings,Poultry,Prepared foods,Dairy,Pharmaceuticals
End products
Milkshakes,Pet food kibbles,Detergents,Chocolate syrups,Creams,Muffin batter,Marinades,Protein shakes,Chicken broth,Salad dressings,Pasta sauces,Instant noodle seasoning,Pills,Yogurts,Tomato paste,Soup bases,Fruit juices,Adhesives
Steps before
Ingredient Preparation,Pre-Mixing,Powder Measuring
Steps after
CIP (Clean-In-Place),Quality Control Check,Packaging
Input ingredients
powder ingredients,mix tanks
Output ingredients
homogeneous mixture
Market info
Admix is known for its expertise in advanced mixing and blending technology for industrial applications, offering engineered-to-order solutions with a reputation for high-quality equipment and innovative design.

Technical Specifications


Automation
PLC-controlled
Recipe storage
500 recipes
Remote capability
Yes
Live data monitoring
Yes (flow rate,vacuum pressure,temperature,valve positioning)
CIP mode
One touch
Integration
Liquid ring pump and high shear emulsifier
Ergonomics
Improved for operator ease

Operating Characteristics


Working mechanism
Automated Powder Induction and Dispersion
Integrated steps
Pumping and High Shear Emulsification
Automation level
Touchscreen / PLC with remote capability
CIP/SIP
One touch CIP mode
Batch vs. continuous operation
Batch / Inline Continuous
Safety features
Built-in safety systems
Recipe management
Stores approximately 500 recipes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Compact design
Tank Shape
Customizable
Feed Method
Automated powder induction
Discharge Method
High shear emulsifier
Control Panel Type
Touchscreen operation
Remote Capability
Yes

Custom Options


Control panel type
Touchscreen
Integration possibilities
Remote capability
Recipe memory
Stores approximately 500 recipes
CIP Mode
One touch CIP mode
Remote connection
Live stats monitoring
