Autoclavable and in-situ sterilizable lab-scale fermentors

For researchers seeking precise control in bioprocessing, these lab-scale fermentors offer advanced scalability and seamless integration with existing systems, ensuring consistent and sterile environments for diverse applications.

Facilitates Scalable Fermentation and Bioprocessing

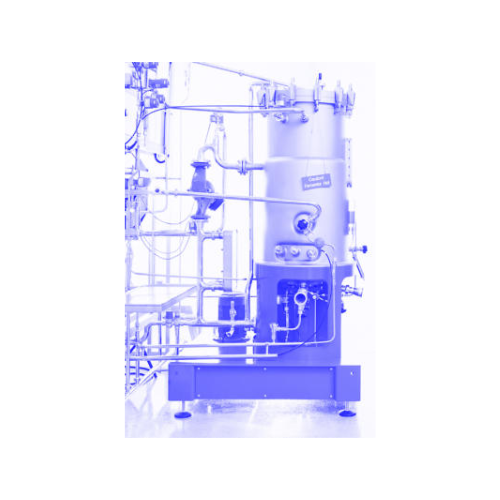

The LP and P bioreactor series from Bioengineering is a scalable solution for diverse fermentation and bioprocessing needs, offering both lab-scale and pilot operations. Known for its adaptability, this bioreactor series is particularly suited for R&D applications in the biopharmaceutical, food, and cosmetics industries.

Utilizing a double-shelled stainless steel vessel and bottom drive system, the bioreactors ensure efficient heat transfer and minimal downtimes. Integrated with Bioengineering’s proprietary BioSCADA system, the equipment allows precise monitoring and control of critical parameters such as temperature, pH, and oxygen levels, while supporting programmable logic control (PLC) for automation.

With capacities ranging from 28 to 650 liters, these bioreactors are ideal for producing monoclonal antibodies, yogurt cultures, and craft beers. The design includes in-situ sterilization and autoclaving capabilities, minimizing contamination risks and meeting stringent cGMP requirements. Options for customization are available, including rotor filters for perfusion systems and various gassing configurations to cater to specific production processes.

The LP and P series support rapid cleaning via its advanced CIP systems, and the modular design allows easy integration into existing production lines, while offering the flexibility to upscale for future growth. Compliance with global standards ensures the series’ reliability and safety in demanding production environments.

Benefits

  • Enhances scalability from lab to pilot production, supporting seamless growth.
  • Lowers contamination risk with integrated in-situ sterilization capabilities.
  • Improves process precision and efficiency through BioSCADA-based monitoring and control.
  • Reduces operational costs with energy-efficient design and automated systems.
  • Ensures compliance with global cGMP standards for safe and reliable production.

General


Applications
Homeopathy,Food and nutritional products,Metallurgy,Fine chemicals,Beverage,Alternative medicine,Performance materials,Cosmetics,Biopharmaceuticals,Chemical,Petrochemical,Mining
End products
Monoclonal antibodies,Vitamin supplements,High-performance plastics,Propylene,Homeopathic remedies,Processed gold ore,Herbal tinctures,Extracted lithium,Ethylene,Facial serums,Craft beers,Yogurt cultures
Steps before
Media preparation,Buffer preparation,Solution mixing
Steps after
Sterilization,Data documentation,Packing
Input ingredients
bacteria,yeasts,animal cells,plant cells,heat-instable media,oxygen for bacteria,shear-sensitive cells
Output ingredients
fermented products,biocultures,upscaled bioreactive solutions,clinical production batches,small-batch production outputs
Market info
Bioengineering is known for its expertise in designing and manufacturing customized bioreactors and fermenters, serving the biotechnology and pharmaceutical industries. They are reputed for high-quality, engineered-to-order solutions and innovative process technologies.

Technical Specifications


Processing capacity
28 / 33 / 50 / 65 / 100 / 130 / 200 / 300 / 500 / 650 liters
Vessel
Stainless steel,double shell,double floor
Drive
Bottom drive with belt,double axial face seal,magnetic drive,top drive
Stirrers
Rushton,propeller stirrers,pitched-blade stirrers,Vibromixer
Gassing
Auto-sterile filters,separate filters or double filters. Ring sparger,sinter sparger,surface gassing,bubble-free gassing. Up to 8 gassing lines with pulsed valves or mass-flow controllers.
Temperature circuit and sterilization
Steam heating / Cooling water. Automated sterilization,empty sterilization.
Dosing / Transfer
Manual dosing,SteriCaps,transfer concepts,full valve automation. Up to 6 pump module selectable.
Measurement and control technology
Speed,temperature,pH,pO2,antifoam/level,redox,OD,weight,exhaust-gas analysis. Several interfaces and regulators available for external devices/equipment.
BioSCADA
Process monitoring,data management,documentation,batch reports,profiles,cascades,sequencer program. Intuitive operation,no programming skills required.

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual

Material Compatibility


Biological compatibility
Suitable for bacteria,yeasts,animal and plant cells
Cleanability
Components available for CIP and SIP
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
28 / 33 / 50 / 65 / 100 / 130 / 200 / 300 / 500 / 650 liters

Physical Characteristics


Options for cell culture
Rotor filter for perfusion,bubble-free gassing for shear-sensitive cells,empty sterilization for heat-instable media,cell-free sampling system
Options for bacteria fermentation
Stirrer systems for bacteria with high oxygen requirement,weight regulation for continuous cultivation,Hi-containment sampling system

Custom Options


HMI Type
Intuitive
Integration Possibilities
BioSCADA,PLC
Control Panel Type
Local regulators,BioSCADA or PLC
Vessel Size
28 to 650 liters
Stirrer Type
Rushton,propeller,pitched-blade,Vibromixer
Drive Type
Bottom drive,top drive,magnetic drive
Gassing System
Auto-sterile filters,ring sparger,bubble-free gassing
Dosing/Transfer Options
Manual dosing,SteriCaps,valve automation
Sampling System
Hi-containment,cell-free
Sterilization Options
Automated,empty sterilization
Control System
BioSCADA
