Versatile fine impact mill for soft materials

Achieve precision grinding with flexibility for a wide range of materials, ensuring optimal particle size and consistency in everything from spices to high-density minerals.

Processes and Reduces Particle Size Efficiently

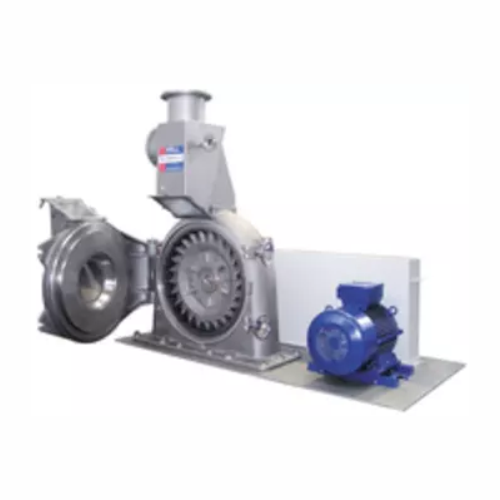

The Ultraplex UPZ from Hosokawa Alpine is a versatile fine impact mill designed for precise particle size reduction across a wide range of materials. Its unique feature lies in its interchangeable milling elements, which allow customization for specific comminution tasks. Whether you are processing spices, pharmaceuticals, or battery components, the UPZ adapts to deliver consistent results. Equipped for both batch and continuous operations, this equipment efficiently integrates into existing production lines. With options for stainless steel construction, it meets rigorous hygiene standards required in food and pharmaceutical industries. Energy-efficient and capable of high-throughput, Ultraplex UPZ offers up to 30% energy savings with its optimized motor design. Its easy-access design facilitates quick cleaning and maintenance, supported by optional wear-protection elements for longevity. Configurations include beater disc, swing beaters, and pin discs suited for different materials, enabling end-product fineness from 50 µm to 5 mm. With support for GMP and FDA compliance, this machine is ideal for industries demanding high precision and reliability in particle processing.

Benefits

  • Enhances product consistency with customizable milling elements for precise particle size control.
  • Reduces operational costs by decreasing energy consumption by up to 30%.
  • Facilitates easy maintenance and quick changeovers with a generously designed access system.
  • Complies with GMP and FDA standards, ensuring suitability for the pharmaceutical industry.
  • Adaptable for diverse material processing, from fine powders to coarse granules, maximizing versatility.

General


Applications
Foodstuffs,Minerals,Sweeteners,High bulk density products,Chemicals,Medicinal herbs,Luxury foods,Spices,Fine powders,Tea,Rubber,Animal feed,Special flours,Sugar,Metals,Cocoa processing,Plastics,Pharmaceuticals,Thickening agents,Roots,Protein shifting,Recyclable materials,Lactose,Dairy products
End products
Graphite powder for batteries,Dishwashing powder,Recyclable plastic pellets,Lithium-ion battery components,Ultrafine sugar powder,Pharmaceutical tablets,High-density minerals,Protein-enriched pulses,Dairy product emulsifiers,Titanium dioxide pigments,Cocoa powder,Calcium carbonate (gcc),Granulated sweetener blends,Special spice blends,Ground rubber materials,Luxury confectionery ingredients,Talc powder,Crop protection granules,Herbal tea extracts,Recovered carbon black,Fertilizer granules,Polymeric film granules,Lignin powder,Lactose powder
Steps before
Drying,Purification,Granulation,Material blending
Steps after
Particle size analysis,Sifting,Packaging,Coating
Input ingredients
soft materials up to 3.5 Mohs' scale,roots,spices,granulated sugar,compact,coarse lumps
Output ingredients
high fineness powders,low fines products,powders with high bulk density,powders within defined particle size range,medium fineness
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


End-product fineness
50 µm to approx. 5 mm
Material hardness (Mohs)
Up to 3.5
Milling elements
Beater disc,pin discs,swing beaters,plate beaters
Discharge option
Standard or tangential
Explosion-pressure-shock-proof
Yes
Milling unit types
Pin disc,beater disc,swing beater,plate beater
Bearing unit protection
Dust proof with rinsing air
Material of housing
Cast or welded steel
Bearing unit lubrication
Permanently lubricated or designed for relubrication
Safety interlock
Optional
Automation
Not specified
Energy consumption
Low

Operating Characteristics


Interchangeable milling elements
Beater disc,pin discs,swing beaters,plate beaters
End-product fineness range
50 µm to 5 mm
Suitable materials
Soft materials up to 3.5 Mohs hardness
Cleaning method
Easy cleaning with generously dimensioned mill door
Grinding mode
Batch vs continuous
Automation level
Not specified
Safety features
Explosion-pressure-shock-proof design
Airflow control
Optional grinding track ejector
Wear protection
Optional wear-protection elements

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Versatility in material processing
Spices,sugars,compact coarse lumps


Application-specific pharma designs
i.e. polished,monobloc,SIP/CIP,isolator integration

Physical Characteristics


Machine Footprint
Generously dimensioned mill door
Grinding Elements
Beater disc,pin discs,swing beaters,plate beaters,sieves,grinding tracks
Construction Design
Cast housing or welded housing,explosion-pressure-shock-proof design
Material Hardness Compatibility
Materials up to Mohs' hardness of 3
Bearing Unit
Dust protected,gas-tight design available
Discharge Method
Standard or tangential discharge

Custom Options


Discharge method
Standard/Tangential
Grinding element type
Beater disc/Pin discs/Swing beaters/Plate beaters
Bearing unit type
Permanently lubricated/Designed for relubrication
Housing material
Cast/Welded (Mild steel/Stainless steel)
Pin disc configuration
One rotating,one stationary
Explosion-pressure-shock-proof design
Yes/No
Door type
Generously dimensioned for easy cleaning
Air flow control
High air flow for cool milling
Wear-protection elements
Optional
Grinding track ejector
Optional
